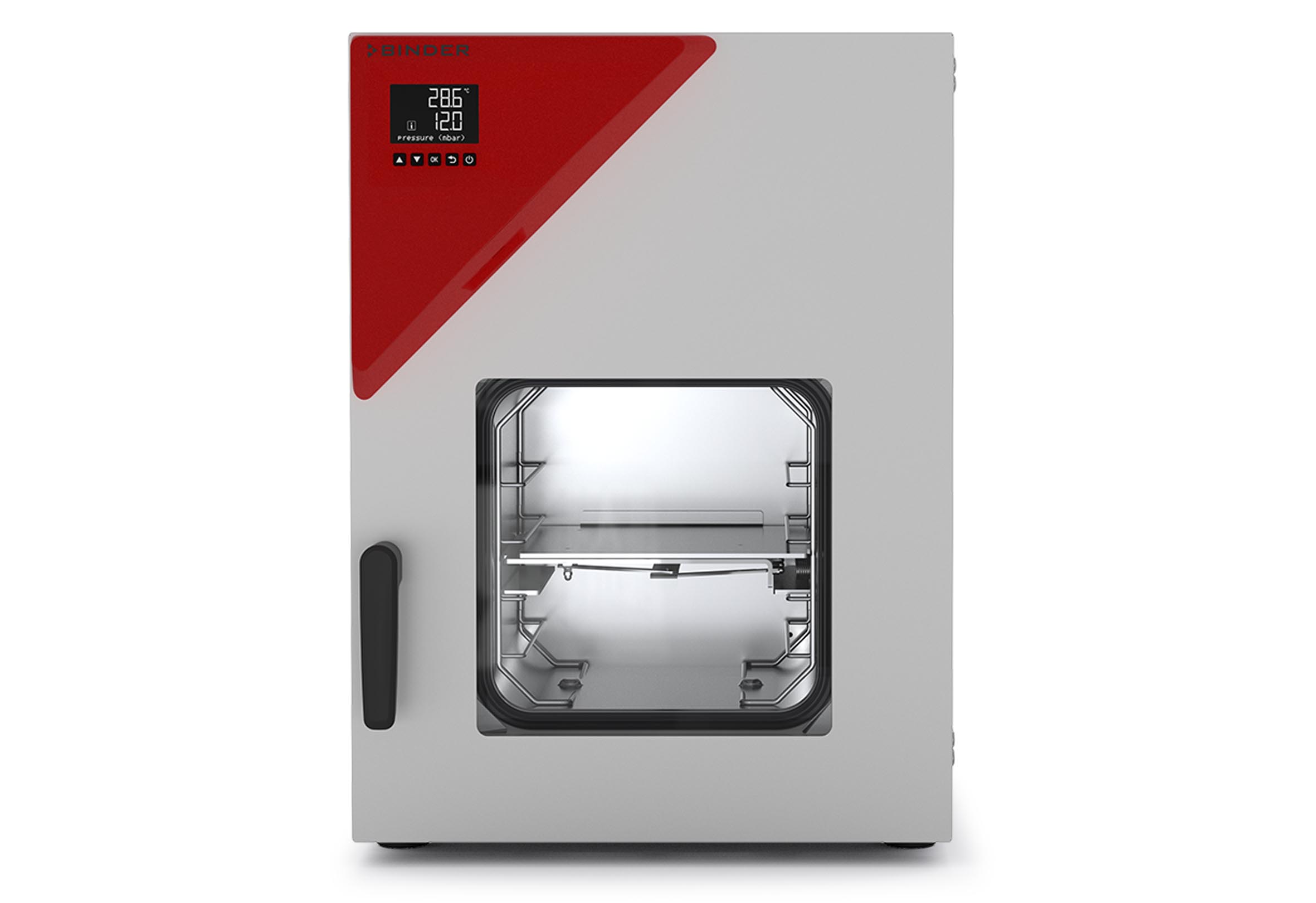

BINDER Series VD 23 Vacuum Drying Chambers (for non-flammable solvents) | 0.8 cu. ft.

Performance Data Temperature

• Heating-up time to 100 °C [min]- 80
• Temperature fluctuation [± K]- 0.1
• Temperature range +10 °C above ambient temperature to [°C]- 220
• Temperature range +9 °C above ambient temperature to [°C]- 220
• Temperature variation at 100 °C [± K]- 1

Vacuum Data

• Leak rate [bar/h]- 0.01

Electrical data

• Nominal power [kW]- 0.9
• Phase (Nominal voltage)- 1~
• Power frequency [Hz]- 50/60
• Rated Voltage [V]- 100…120
• Unit fuse [A]- 10

Connections

• Compressed air connection for pressure-encapsulation- 5 NW
• Measuring access port with small flange [DN mm]- 16
• Universalanschluss für Luft / Inertgas, mit Durchflussbegrenzer (RP")- 3/8
• Vacuum connection with small flange [DN mm]- 16

Doors

• Unit doors- 1

Housing dimensions not incl. fittings and connections

• Depth net [in]-16.27
• Height net [in]-27.5
• Width net [in]-20.61

Internal Dimensions

• Depth [in]- 11.62
• Height [in]- 11.23
• Width [in]- 11.23

Measures

• Interior volume [cu.ft.]- .8
• Load per rack [lbs]- 44
• Net weight of the unit (empty) [lbs]- 150
• Permitted load [lbs]- 110
• Viewing window height [in]- 12.02
• Viewing window width [in]- 12.02
• Wall clearance back [in]- 3.94
• Wall clearance sidewise [in]- 2.76

Environment-specific data

• Sound-pressure level [dB(A)]- 40

Fixtures

• Number of shelves (std./max.)- 1/4
