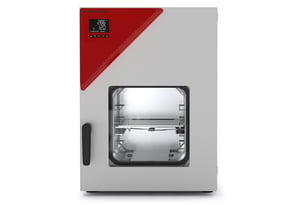

BINDER Series VD 56 Vacuum Drying Chambers (for non-flammable solvents) | 1.9 cu. ft.

BINDER Series VD 56 Vacuum Drying Chambers (for non-flammable solvents) | 1.9 cu. ft. - Image 2

BINDER Series VD 56 Vacuum Drying Chambers (for non-flammable solvents) | 1.9 cu. ft. - Image 3

BINDER Series VD 56 Vacuum Drying Chambers (for non-flammable solvents) | 1.9 cu. ft.

Name: BINDER Series VD 56 Vacuum Drying Chambers (for non-flammable solvents) | 1.9 cu. ft.
Brand: BINDER
SKU: 9630-0006
Availability: InStock

Item#: 9630-0006

The BINDER Series VD 56 Vacuum Drying Chamber is designed for safe, efficient drying of samples containing non-flammable solvents in laboratory and industrial environments. Its 1.9 cu. ft. chamber provides precise temperature control up to 220°C, excellent temperature stability, and dependable vacuum performance to protect heat-sensitive materials during processing. Featuring a spacious interior with support for up to five shelves, the VD 56 offers flexible capacity and reliable drying performance for research, pharmaceutical, and quality control applications.

~~$12,311.00~~ $11,695.45

Request a Quote

Supplier: BINDER

Tag: Vacuum Drying Chambers

Performance Data Temperature

Heating-up time to 100 °C [min]- 80
Temperature fluctuation [± K]- 0.1
Temperature range +10 °C above ambient temperature to [°C]- 220
Temperature range +9 °C above ambient temperature to [°C]- 220
Temperature variation at 100 °C [± K]- 1.5

Vacuum Data

Leak rate [bar/h]- 0.01

Electrical data

Nominal power [kW]- 1.4
Phase (Nominal voltage)- 1~
Power frequency [Hz]- 50/60
Rated Voltage [V]- 100…120
Unit fuse [A]- 16

Connections

Compressed air connection for pressure-encapsulation- 5 NW
Measuring access port with small flange [DN mm]- 16
Universalanschluss für Luft / Inertgas, mit Durchflussbegrenzer (RP")- 3/8
Vacuum connection with small flange [DN mm]- 16

Doors

Unit doors- 1

Housing dimensions not incl. fittings and connections

Depth net [in]-18.16
Height net [in]-32.11
Width net [in]-25.14

Internal Dimensions

Depth [in]- 13.51
Height [in]- 15.76
Width [in]- 15.76

Measures

Interior volume [cu.ft.]- 1.9
Load per rack [lbs]- 44
Net weight of the unit (empty) [lbs]- 223
Permitted load [lbs]- 132
Viewing window height [in]- 16.55
Viewing window width [in]- 16.55
Wall clearance back [in]- 3.94
Wall clearance sidewise [in]- 2.76

Environment-specific data

Sound-pressure level [dB(A)]- 40

Fixtures

Number of shelves (std./max.)- 1/5

Temperature range: ambient temperature +9 °C to +220 °C
Controller with digital display of pressure and temperature
Program-controlled drying monitoring with automatic ventilation at end of process
Internal data logger, measured values can be read out in open format via USB
1 aluminum expansion rack, can be custom-positioned
Inert gas connection
Shatterproof, spring-mounted safety glass panel
Large viewing window with option of interior lighting
Computer interface: Ethernet
2 relay outputs, 24 V DC (max. 0.4 A)
Warranty: 2 years parts & labor
