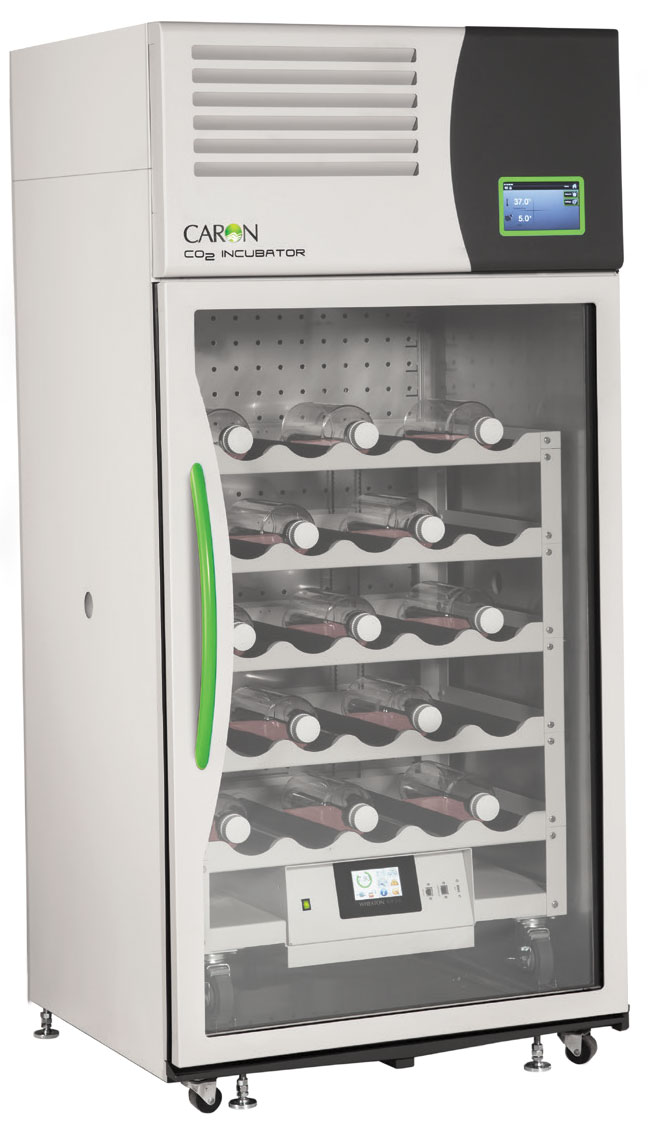

Caron Shaker Ready Reach-In CO2 Incubator | 25 Cu. Ft. (708L)
Item#: 7401-25Caron 7401-25 reach-in CO2 incubator is designed to provide precise environmental control for large-scale cell culture, biologics production, and advanced research applications in biotechnology, pharmaceutical, and clinical laboratories. This 25 cu. ft. incubator supports high-capacity workflows including shaker platforms, multi-layer cell culture vessels, and large-volume flask cultures with reinforced shelving and integrated refrigeration to dissipate equipment heat. The system maintains stable chamber conditions using infrared CO2 sensing, directed airflow for uniform temperature distribution, and optional two-hour H2O2 sterilization for rapid chamber decontamination. Key specifications include a temperature range from 20°C to 60°C with ±0.1°C control, CO2 regulation from 0% to 20% with ±0.1% accuracy, humidity capability up to approximately 95% RH, and a 25 cu. ft. (708 L) stainless steel chamber supporting heavy dynamic equipment loads.
- Temperature Range- 20 to 60°C (At 200W Max Heat Load At 20°C)
- Temperature Control- ±0.1°C
- Temperature Uniformity- ±0.3°C
- Temperature Sensor- RTD
- Humidity Range- Elevated Up to 95% at 37°C
- Controlled Humidity Range Ambient to 95% RH / ±3% RH
- CO2 Range- 0-20% CO2
- CO2 Control- ±0.1% CO2
- CO2 Sensor- Infrared CO2 Sensor
- Internal Outlets- 3 / GFCI Protected
- Interior Dimensions- 32” W x 27” D x 52.7” H (81.3cm x 68.6cm x 133.9cm)
- Exterior Dimensions- 35.5” W x 33.3” D* x 77.1” H (90.2cm x 84.6cm x 195.8cm)
- Interior Construction- 2B Finish Solid Stainless Steel (Type 304)
- Exterior Construction- Powder Coated Cold Rolled Steel
- Workspace- 25 ft (708 liters)
- Shelf Count- 2 Standard
- Shelf Construction- Reinforced Perforated Stainless Steel (Type 304)
- Shelf Capacity- 150 lbs. each (68kg)
- Shelf Dimensions- 29.25” W x 24.45” D (74.3cm x 62.1cm)
- Shipping Weight lbs.- 725 lbs. (825 lbs. crated)
- Shipping Weight kg.- 329 kg. (374 kg. crated)
- Electrical: 115V, 60 Hz, 16A
- Available Chamber Sterilization
• Unique patented 2 hour H2O2 chamber sterilization
• Removable module can be moved from chamber to chamber
• Fast cycle setup and cleanup - Equipment Ready
• Reinforced shelves handle vibration and weight for large shakers with full platforms up to 30” (76cm) wide
• Built-in refrigeration removes equipment heat, preventing over temperature events
• Standard GFI outlets for equipment plug and play within the chamber - Heaviest Vessel Loads
• Reinforced shelving holds dense weight of multi-layer adherent culture vessels
• Adjustable without tools, for quick conversion between vessel heights and loads
• Fill up every shelf with a 500 lb maximum (226kg) static chamber load - Uniform Directed Airflow
• Back to front air flow
• Positive pressure plenum design
• Uniform even when heavily loaded lock
-
