Caron 7406 Series Incubator Shaker | 33 cu. ft. (2 tiers)
Item#: 7406-33Caron 7406-33 CO2 incubator shaker is designed to provide controlled temperature, CO2, humidity, and orbital shaking for large-scale cell culture and biologics production in biotechnology, pharmaceutical, and research laboratories. This 33 cu. ft. incubator shaker maintains stable environmental conditions while supporting high-capacity culture workflows with adjustable shaking speeds and orbit sizes to accommodate a wide range of flask sizes and cell culture applications. The system integrates infrared CO2 sensing, atomized humidity control, and an H2O2 sterilization cycle within a seamless stainless-steel chamber to help maintain contamination-free operation and reproducible results. Key specifications include a temperature control range from 20°C to 60°C with ±0.1°C accuracy, CO2 control from 0% to 20% with ±0.1% accuracy, humidity control up to approximately 90% RH with ±3% precision, and a large-capacity chamber supporting multiple flask configurations across two shaker tiers.
- Max Number of Flasks per shaker:
- 125mL: 59
- 250mL: 38
- 500mL: 24
- 1 Liter: 16
- 2 Liter: 9
- 5 Liter: 6
- Max Number of Flasks per Incubator:
- 125mL: 177
- 250mL: 114
- 500mL: 72
- 1 Liter: 48
- 2 Liter: 27
- 5 Liter: 18
- Max RPM for .75" Orbit
- 125mL: 425
- 250mL: 425
- 500mL: 305
- 1 Liter: 280
- 2 Liter: 250
- 5 Liter: 215
- Max RPM for 1" Orbit
- 125mL: 255
- 250mL: 245
- 500mL: 235
- 1 Liter: 225
- 2 Liter: 225
- 5 Liter: 180
- Max RPM for 1.5" Orbit
- 125mL: 240
- 250mL: 235
- 500mL: 220
- 1 Liter: 210
- 2 Liter: 200
- 5 Liter: 175
- Max RPM for 2" Orbit:
- 125mL: 200
- 250mL: 190
- 500mL: 185
- 1 Liter: 170
- 2 Liter: 170
- 5 Liter: 140
- Precise Temperature Control: 20°C to 60°C with ±0.1°C control and ±0.3°C uniformity
- Accurate CO₂ Regulation: 0–20% with infrared sensors (±0.1% accuracy)
- Humidity Management: Maintain ambient to 90% RH with ±3% precision via atomized control
- Customizable Shaking: Adjustable RPM and orbit sizes (0.75", 1", 1.5", 2")
- Don’t Waste Your Space: Available in 33 cu. ft. (3 tiers) and 25 cu. ft. (2 tiers)
- In-Unit Sterilization: H₂O₂ sterilization cycle and seamless stainless steel construction
- Intuitive User Interface: Color touchscreen for real-time monitoring
Request a Proposal
Related Products
- Item #: 7406-25
- Item #: 7401-25
- Item #: 7401-33
-
Item #: H3020
$10,094.95$8,580.71 -
Item #: H3022
$12,417.95$10,555.26 -
Item #: AAH23715U
$12,850.00$11,822.00 -
Item #: AAH23765U
$9,220.00$8,482.00 -

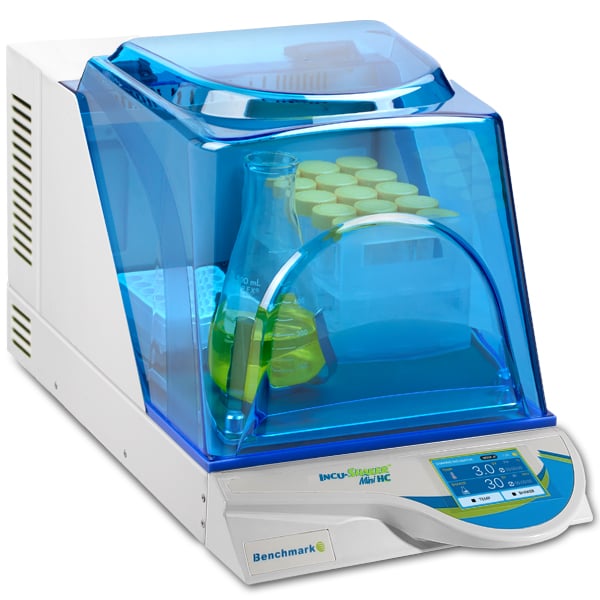

Item #: H1001-M
