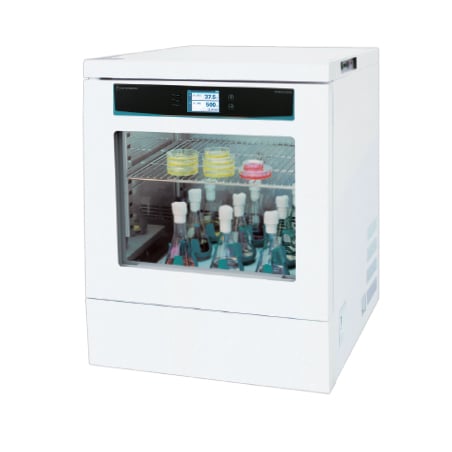

Lab Companion ISS-4075R Incubated Shaker (150L / 5.3 cu ft)
Item#: AAH23715U- Double-stacked for space saving.
- Also, easy to use a general incubator.
- 120V, 60Hz
Please Note: image shown includes additional accessories not included with purchase
$12,627.00 $11,995.65
- Chamber volume (L / cu ft): 150 / 5.3
- Temperature-
- Range (℃ / ℉): Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176
- Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
- Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
- Refrigerator (Hp): 1/6
- Shaking System-
- Motion Type: Orbital
- Amplitude size (mm / inch, dia.): 19.1 / 0.75
- Speed range (rpm): 20 to 500 (stackable: 20 to 250)
- Speed stability (rpm, %): ±1
- Timer (count-down): 999 hr 59 min.
- Max. Speed per permissible Load (rpm)
- 500 (max. 10kg / 22.0 lbs)
- 400 (max. 15kg / 33.1 lbs)
- 250 (max. 15kg / 33.1 lbs) - (stacked)
- Dimensions-
- Platform (W×D): 450 x 450mm / 17.7" x 17.7"
- Exterior (W×D×H): 540 x 540 x 518mm / 21.3" x 21.3" x 20.4"
- Interior (W×D×H): 678 x 895 x 934mm/ 26.7" x 35.2" x 36.8"
- No. of wire shelf (standard / max.): 2 / 11
- Net weight (Kg / lbs): 190 / 418.9
- Electrical requirements (120V, A): 60Hz, 13
Structural Functional Features
- Best space-efficient model with double stacking.
- Up to 80°C, 500rpm enables setting of various experimental conditions.
- Utilized as an incubator using the shelves.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Includes internal power outlet.
- Shaking structure with minimized vibration.
Use Convenience Features
- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
(when purchased LC GreenBox) - Countdown timer (999 hours 59 minutes) of shaking operation.
- Intuitive operation with color touch display.
- High brightness / low-power LED illumination makes it easy to observe inside.
- Spill drain port for internal cleanliness and easy maintenance.
Outstanding Safety
- Electronic over temperature protection system. (advanced over temperature (A-OT) limiter) Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
- Conventional over-temperature protection system. (B-OT, backup over temperature limiter) A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
- Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
