Lab Companion IST-4075R Incubated Shaker (83L / 2.9 cu.ft.)
Item#: AAH23765UProvides convenient internal observation environment
- Optimized for use on bench top.
- Convenient internal observation.
- 120V, 60Hz

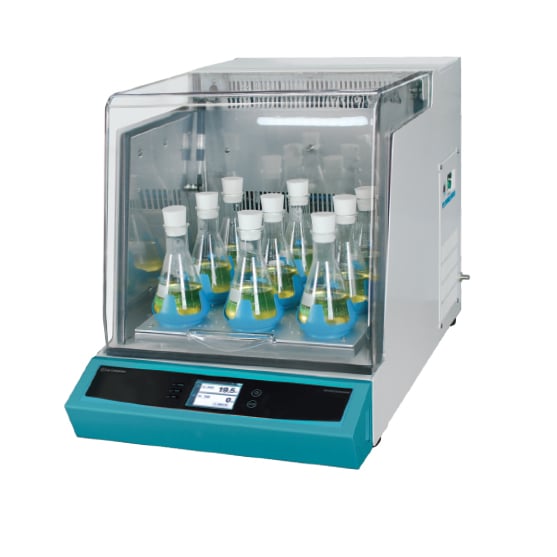

Please Note: image shown includes additional accessories not included with purchase
$9,220.00 $8,759.00
- Chamber volume (L / cu ft): 83 / 2.9
- Temperature-
- Range (℃ / ℉): Amb. -15 (Min. 15) to 80 / Amb. -27 (Min. 27) to 176
- Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
- Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
- Refrigerator (Hp): 1/6
- Shaking System-
- Motion Type: Orbital
- Amplitude size (mm / inch, dia.): 19.1 / 0.75
- Speed range (rpm): 20 to 500
- Speed stability (rpm, %): ±1
- Timer (count-down): 999 hr 59 min.
- Max. Speed per permissible Load (rpm)
- 500 (max. 10kg / 22.0 lbs)
- 400 (max. 15kg / 33.1 lbs)
- Dimensions-
- Platform (W×D): 450 x 450mm / 17.7" x 17.7"
- Exterior (W×D×H): 510 x 510 x 320mm / 20.1" x 20.1" x 12.6"
- Interior (W×D×H): 540 x 890 x 510mm/ 21.3" x 35" x 20.1"
- Net weight (Kg / lbs): 90 / 198.4
- Electrical requirements (120V, A): 60Hz, 10.1
Structural Functional Features
- Model optimized for use on experiment bench.
- Up to 80°C, 500rpm enables setting of various experimental conditions.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Door structure allows for easy sample removal/attach at the front.
- Shaking structure with minimized vibration.
- Four models according to refrigeration system and the size of the platform.
Use Convenience Features
- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
(when purchased LC GreenBox) - Countdown timer (999 hours 59 minutes) of shaking operation.
- Intuitive operation with color touch display.
- High brightness / low-power LED illumination makes it easy to observe inside.
- Spill drain port for internal cleanliness and easy maintenance.
Outstanding Safety
- Over temperature limit function.
- Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic rpm adjustment when device instability occurs.
(high rpm, overload, weight imbalance, etc.) - Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
