- Estimated Shipping Weight: 142.0 lbs
- Estimated Shipping Weight metric: 64.0 kg
- Dimensions: 14.5" w x 22.0" d x 20.9" h
- Dimensions metric: 36.8 x 55.9 x 53.1 cm
- Electrical: 115 volts, 60 Hz, 12 amps, Domestic
- Region: U.S. and Canada
- CentriVap Optional Accessories: Clear Canisters and Chemical Trap Inserts, Glass Trap, Two-Port Manifold
- Conformance: ETL
- Receptacle and Plug Type: North America, 115 volts, 60 Hz
- Style: Benchtop
- Type/Application: Low Freezing Point Solvents

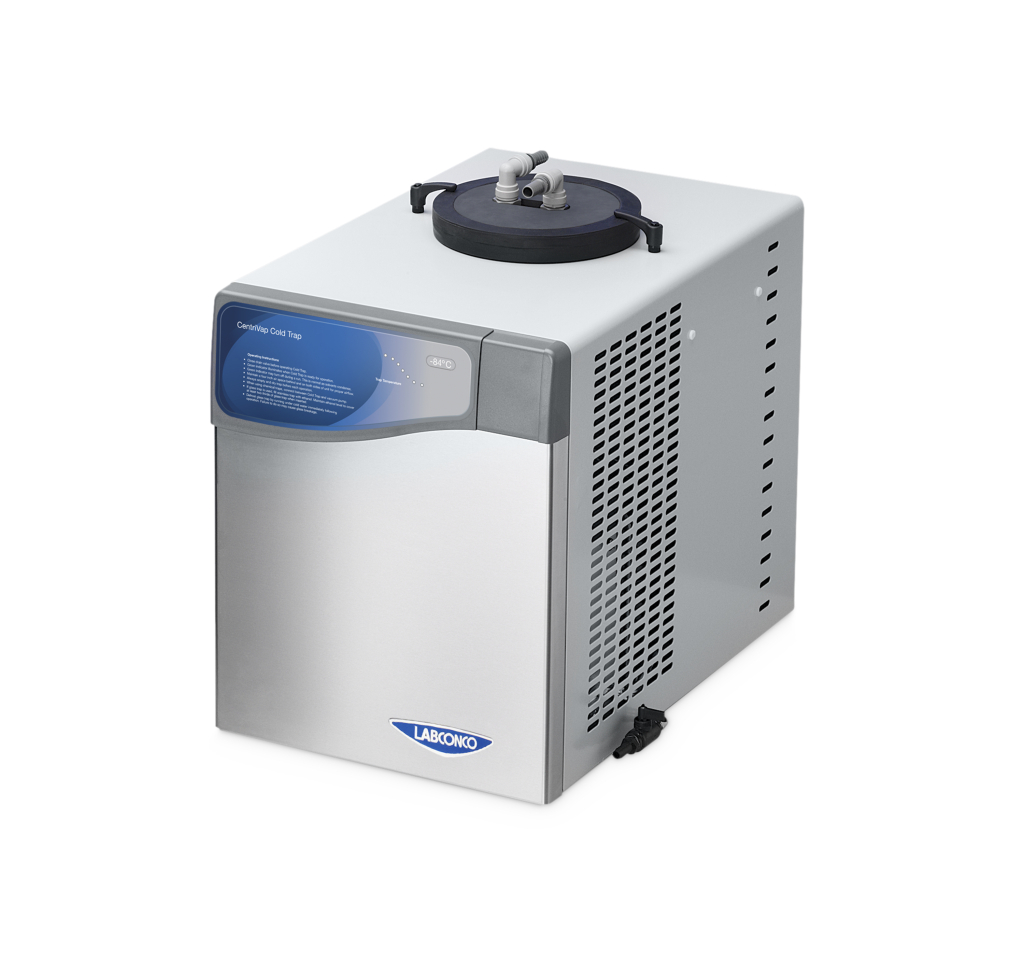

Labconco CentriVap -84C Cold Trap
Item#: 7460020The CentriVap -84°C Cold Trap collects evaporated liquid from a CentriVap Concentrator, protecting an accessory vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from samples
Supplier: Labconco
- Brushed, Stainless Steel and Powder-Coated Steel Exterior
- Illuminated Temperature Graph with Endpoint Indication (Operating temperature of -40°C)
- HCFC-Free Refrigerant System
- 1/3 hp Compressor (Reaches -84°C in less than 40 min.)
- 4-liter, Stainless Steel Collector
- Acrylic or Stainless Steel Lid (with 2 Quick-Disconnect fittings for connection to a CentriVap Concentrator)
- Stainless Steel Drain Port (with corrosion-resistant, nylon valve)
-84°C Centrivap Cold Trap recommended for Solvent (e.g. Acetone, Chloroform) sample applications.
CentriVap -84 Cold Trap- Data Sheet
DownloadLabconco CentriVap Vacuum Concentrator Installation
Request a Proposal
Related Products
-

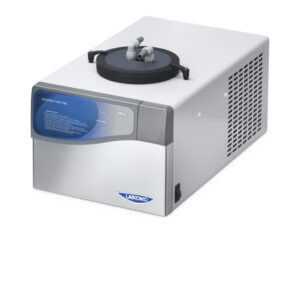

Labconco CentriVap -50C Cold Trap with Acrylic Lid
Item #: 7811020 VIEW PRODUCT -

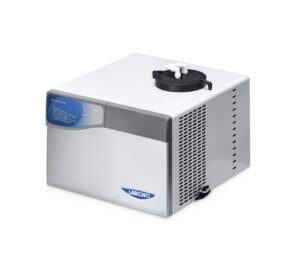

Labconco CentriVap -105C Cold Trap
Item #: 7385020 VIEW PRODUCT -

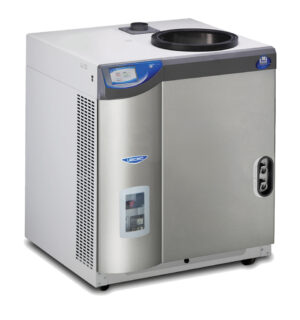

Labconco FreeZone 6 Liter -84C Console Freeze Dryer
Item #: 710611000 VIEW PRODUCT -

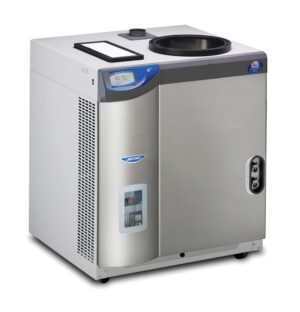

Labconco FreeZone 6 Liter -50C Console Freeze Dryer
Item #: 700611000 VIEW PRODUCT -

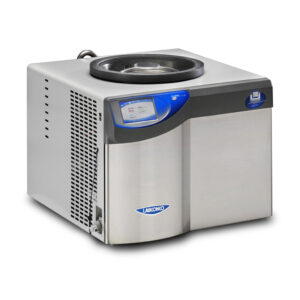

Labconco FreeZone 4.5 Liter -105C Benchtop Freeze Dryer
Item #: 720401000 VIEW PRODUCT -

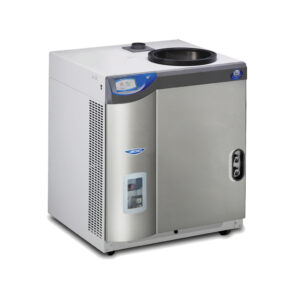

Labconco FreeZone 12 Liter -50C Console Freeze Dryer
Item #: 701211210 VIEW PRODUCT -
Labconco FreeZone 2.5 Liter -84C Benchtop Freeze Dryer
Item #: 710201000 VIEW PRODUCT -

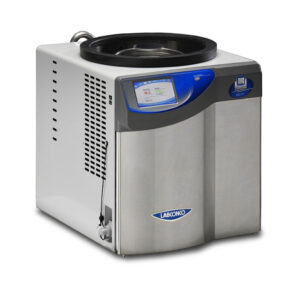

Labconco FreeZone 4.5 Liter -50C Benchtop Freeze Dryer
