BioStore™ -80°C LN2-Based Automated Storage System

BioStore™ -80°C LN2-Based Automated Storage System | Azenta Life Sciences

Item#: BIOSTORE-80-LN2

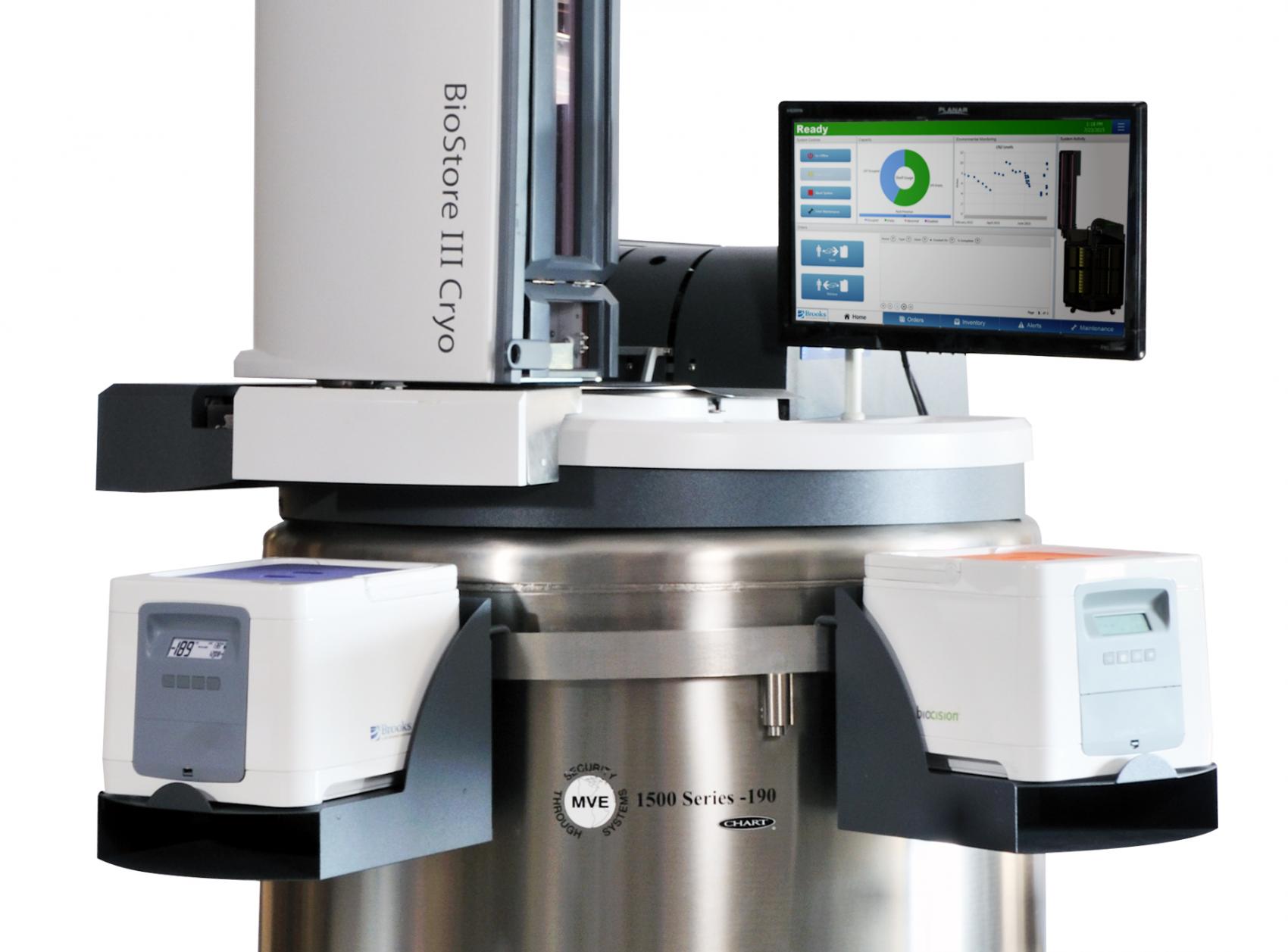

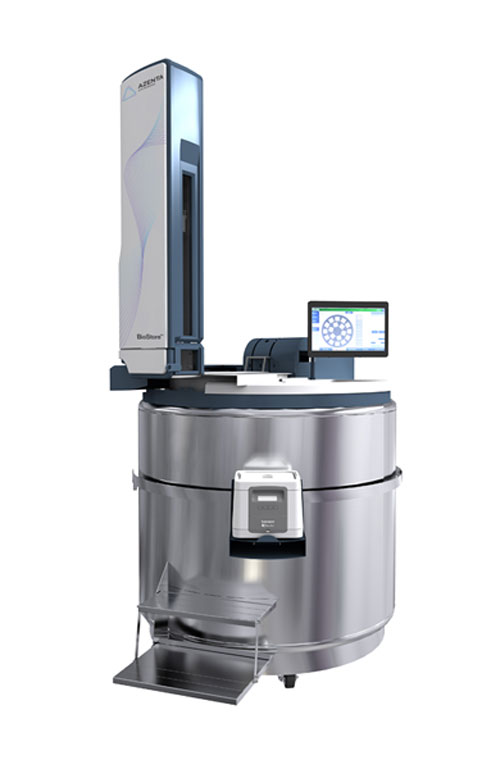

BioStore -80°C LN2-Based Automated Storage System is a space efficient automated freezer which can be used for a wide range of applications and inventory types, designed by combining the advanced automation technologies and user interface from Azenta Life Sciences with the performance of industry-leading LN2 freezers to deliver optimal long term system insulation performance.

Accommodates a wide range of labware
Holds 630 cryoboxes for a wide range of labware
Sample retrieval in under 60 seconds
LIMS connectivity

REQUEST A QUOTE

Capacity storage locations: Holds 630 cryoboxes for a wide range of labware
1.0ml tubes: 123,480
2.0ml tubes: 63,000
6.0ml aseptic vials: 15,750
Box level retrieval speed: Approximately 60 seconds
Labware types: Cryoboxes, SBS racks*
Static holding time vapor: 4 days of hold time from -80°C to -60°C
Electrical: 110v/220v
Empty freezer weight: 114 lbs/ft2
Full freezer weight: 3,721lbs/1,691kg
Maximum floor load: 114lbs/ft2 (4.8kg/m2) (based on full system weight)
LN2 connection type: 1/2” (NPT female fitting to existing vacuum jacket line)
LN2 supply pressure (open valve): 22-35 psig/1.52-2.41bar
LN2 evaporation rate/day (nominal): 12-14l/day

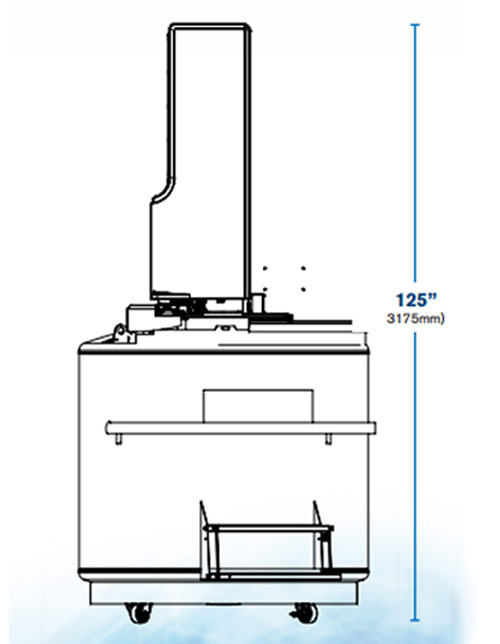

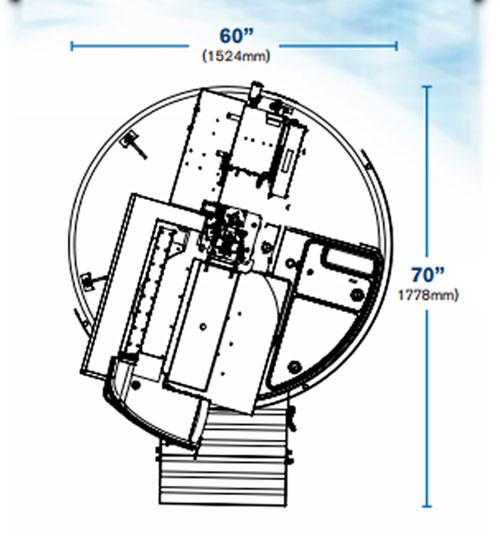

Dimensions (H x W x D): 125 inches (3175mm) x 60 inches (1524mm) x 70 inches (1778mm)
Warranty: 1 year (includes onsite service, travel, and spare parts) (preventative maintenance and wear parts not included)
Other: Installation & operator training included/Validation qualification services available

Properties

Can be set to a desired temperature between -20°C and -150°C*
Insulating tower temperature protection for non-targeted boxes
Extended hold time compared to mechanical freezers in emergency situations
Ergonomically designed for simple user experience and minimized injury risk
Superior user interface for easy operation and inventory documentation
Simple, accurate and documented inventory management to the vial level
Secure username and password access for full traceability
Library management is an option, allowing the freezer to be partitioned into libraries with user defined access control
LIMS integration and reporting options to enhance existing storage and tracking infrastructure
Holds more than 120,000 1.0ml tubes or 63,000 2.0ml tubes
Use with a variety of labware types including cryoboxes, SBS racks
Sample retrieval in less than 60 seconds
Automatic retrieval of samples through a touchscreen interface

*Temperature variation is +/- 6°C due to thermocouple variation and thermal loading

Quality

Innocent sample protection: insulated tower prevents sample warming of targeted and non-targeted tubes when a source rack is removed from the system
Secure: access and defined libraries can be restricted to preauthorized users
Disaster protection: extended sample hold-time during unplanned disasters or emergencies is 16 times longer than typical mechanical freezers
Qualification services: IQ/OQ/PQ available to meet regulatory requirements
