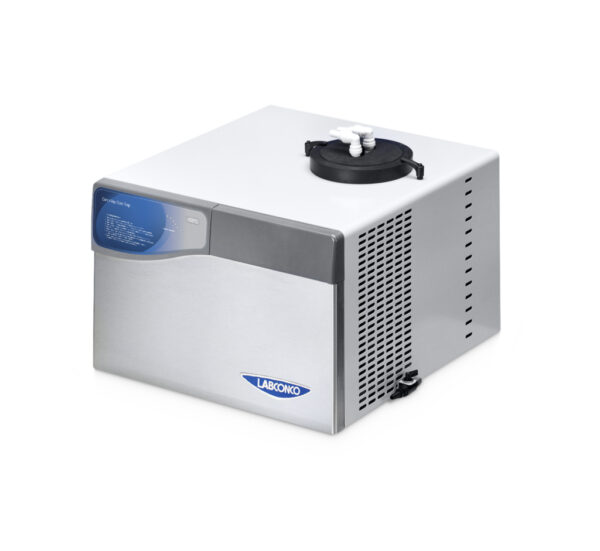

Labconco CentriVap -105C Cold Trap
Item#: 7385020The CentriVap-105C Cold Trap collects evaporated liquid from a CentriVap Concentrator, protecting an accessory vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from very low freezing point liquids.
- Estimated Shipping Weight: 170.0 lbs
- Estimated Shipping Weight metric: 77.0 kg
- Dimensions: 24.1" w x 23.9" d 17.6" h
- Dimensions metric: 61.2 x 60.7 x 44.7 cm
- Electrical: 115 volts, 60 Hz, 12 amps, Domestic
- Region: U.S. and Canada
- CentriVap Optional Accessories: Clear Canisters and Chemical Trap Inserts, Glass Trap, Two-Port Manifold
- Conformance: ETL
- Receptacle and Plug Type: North America, 115 volts, 60 Hz
- Style: Benchtop
- Type/Application: Very Low Freezing Point Solvents
- Brushed, Stainless Steel and Powder-Coated Steel Exterior
- Illuminated Temperature Graph with Endpoint Indication (Operating temperature of -65°C)
- HCFC-Free Refrigerant System
- Two 1/3 hp Compressors (lower Cold Trap to -105°C in less than 40 min.)
- 4-liter, Stainless Steel Collector
- Acrylic or Stainless Steel Lid (with 2 Quick-Disconnect fittings for connection to a CentriVap Concentrator)
- Stainless Steel Drain Port (with corrosion-resistant, nylon valve)
-105°C Centrivap Cold Trap recommended for Alcohol (e.g. Ethanol, Methanol) sample applications.
