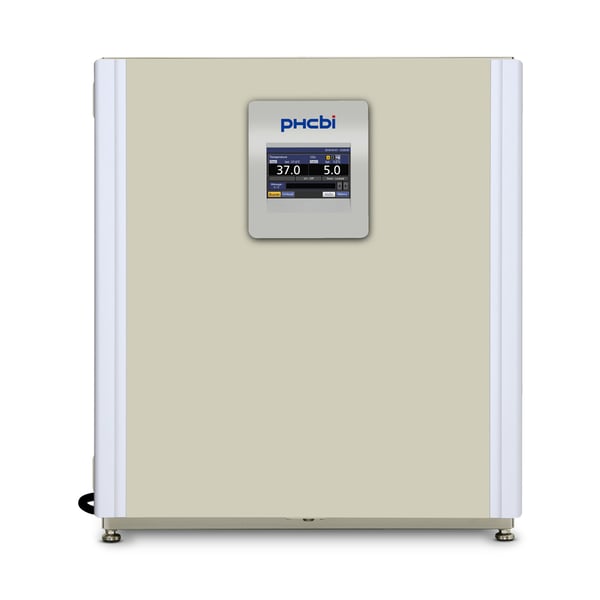

PHCbi MCO-230AICUVLG-PA Cell-IQ Series CO2 Incubator | 8.1 cu. ft. (230L)
Item#: MCO-230AICUVLG-PAThe MCO-230AICUVLG-PA Cell-IQ™ Series 8.1 cu.ft. CO2 Incubator for Cell Culture contains the patented Direct Heat and Air Jacket system to provide precise temperature and CO2 levels, time-saving decontamination, and an intuitive control panel interface for easy programming.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Exterior Dimensions: 30.3" W x 28.7" D x 35.6" H (770 x 730 x 905 mm)
- Interior Dimensions: 25.3" W x 20.6" D x 27.5" H (643 x 523 x 699 mm)
- Interior Volume: 8.1 cu.ft. (230 L)
- Data Acquisition: Optional analog on cloud-based monitoring
- Outer Door: Painted Steel
- Shelves: W24.4 inch x D17.7 inch (W620 mm x D450 mm) Maximum load: 15 lbs (7 kg)/tray
- Access Port: 1: Back side (1.2" [30 mm] diameter)
- Heating Method: Direct Heat and Air Jacket System
- Air Filter: 0.3 um, Efficiency· 99 97 % or higher
- UV Lamp: 4W x 1 (ozone-free emission)
- Net Weight: 198 lbs (90 kg)
- Temperature Control Range: Ambient temperature +5ºC to 50ºC
- Temperature Uniformity: ±0.25ºC (ambient temperature: 23ºC, setting: 37ºC, CO2: 5 %, no load)
- CO2 Control Range: 0% to 20%
- CO2 Controller: PID Control System
- CO2 Gas Connection: 0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
- CO2 Variation: ±0.15% (ambient temperature: 23ºC, setting: 37ºC, CO2: 5%, no load)
- CO2 Sensor Type: Dual Infrared Sensor
- Data Output: USB
- Decontamination Methods: Full chamber UV decontamination, H2O2 decontamination
- Contamination Controls: InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
- Decontamination Cycle Time: 24 hour UV decontamination, 3 hour H2O2 decontamination
- Display: Color LCD touchscreen
- Humidifying System: Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H
- Interior Surfaces: InCu-saFe stainless steel with copper enriched alloy
- Cell Culture Incubators Capabilities: As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.
- Uniform Consistent Environment: The patented Direct Heat and Air Jacket system, IR2 sensor, SafeCell™ UV and inCu-saFe® work together to ensure precise temperature, CO2 levels and contamination control respectively for a precise and repeatable environment.
- Rapid CO2 Recovery with Dual IR Sensor: Proprietary IR2 sensor provides superior CO2 control with fast recovery without overshoot even following multiple door openings.
- Time Saving Decontamination: An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate with at least a six log reduction of major contaminants.
- Contamination Control with SafeCell UV and InCu-saFe: The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.
- Color LCD Display: The high contrast color LCD display allows for easy, touchscreen programming of temperature, CO2and other internal conditions of your incubator even with gloved hands.
- USB Log Function for Data Transfer and Storage: A standard USB port simplifies the storage or transfer of logged data.
