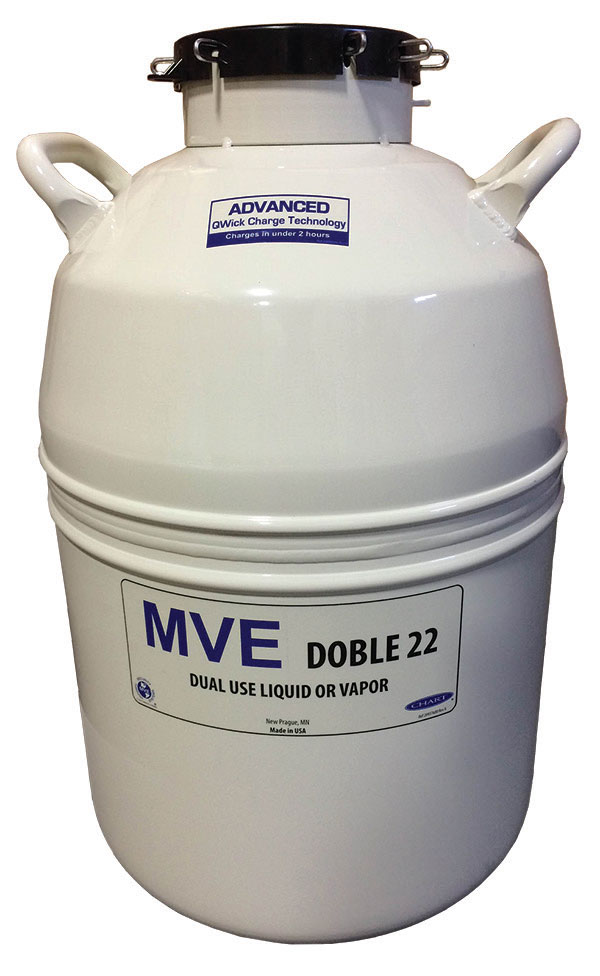

MVE Doble 22 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 810 x 2.0 ml vials)
Item#: 20937586The Doble Series cryogenic LN2 dewars are the first units to be designed for both vapor shipment and liquid storage. The Doble QWick Series utilizes an absorbent wicking material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. A unique absorbent layer in the base of the storage tanks of both series enables them to be charged with nitrogen and employed as dry shippers with hold times of up to 30 days. Once at the final destination, the tanks can be filled with liquid and used for long term storage, therefore avoiding the need for return shipments.
$2,362.00 $2,007.70
- Capacity (Liters.): 20
- Empty Weight: 30 lbs. (13.6 kg)
- Full Weight: 68 lbs. (30.8 kg)
- Neck Diameter: 3.81" (97mm)
- Outer Diameter: 14.5" (462mm)
- Total Height: 22" (559mm)
- Static Evaporation Loss Rate (Liters/day): 0.35
- Static Holding Time (Days): 40
- Canister O.D.: 3.09" (78mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): 2400
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 3 years vacuum
- Liquid and vapor storage options
- Engineered specifically for farm use
- Precision manufacturing design
- Tamper-proof locking lid
- Low liquid nitrogen consumption
- Convenient lightweight packaging
- Charges in less than 2 hours
Chart MVE Doble 22 LN2 Dewar Spec Sheet
DownloadMVE Doble Series Liquid Nitrogen LN2 Dewars Spec Sheet
Download-

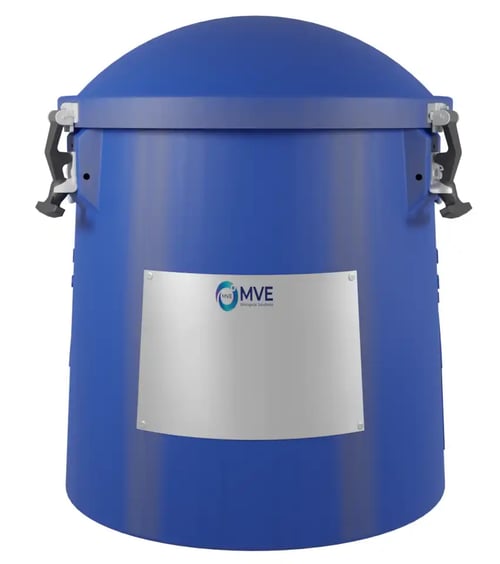

Protective Shipping Container for MVE XC 22/5, XC 20/3V, CryoShipper, Doble 22 and Qwick 9/500 Liquid Nitrogen Systems
