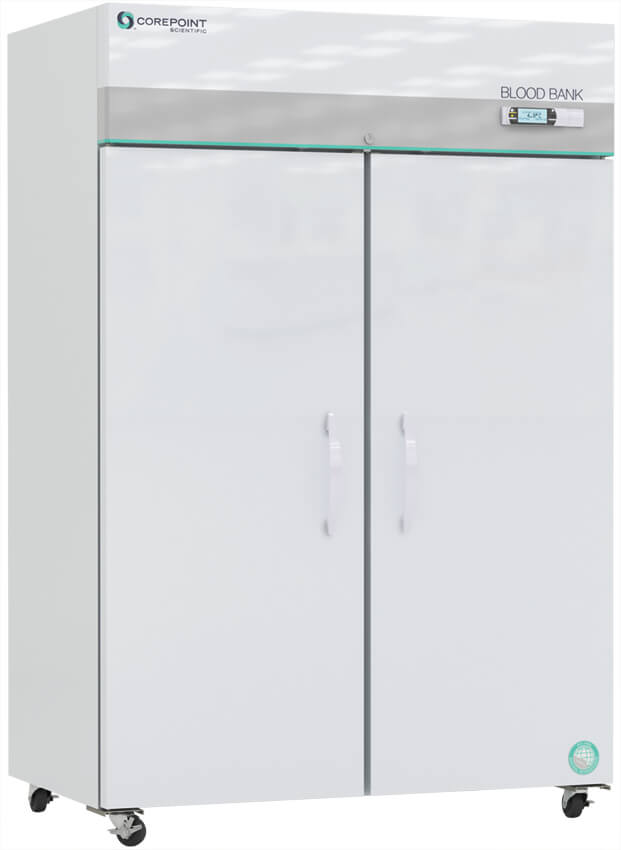

Corepoint Scientific Blood Bank Refrigerator | 49 Cu. Ft. | Solid Double Doors

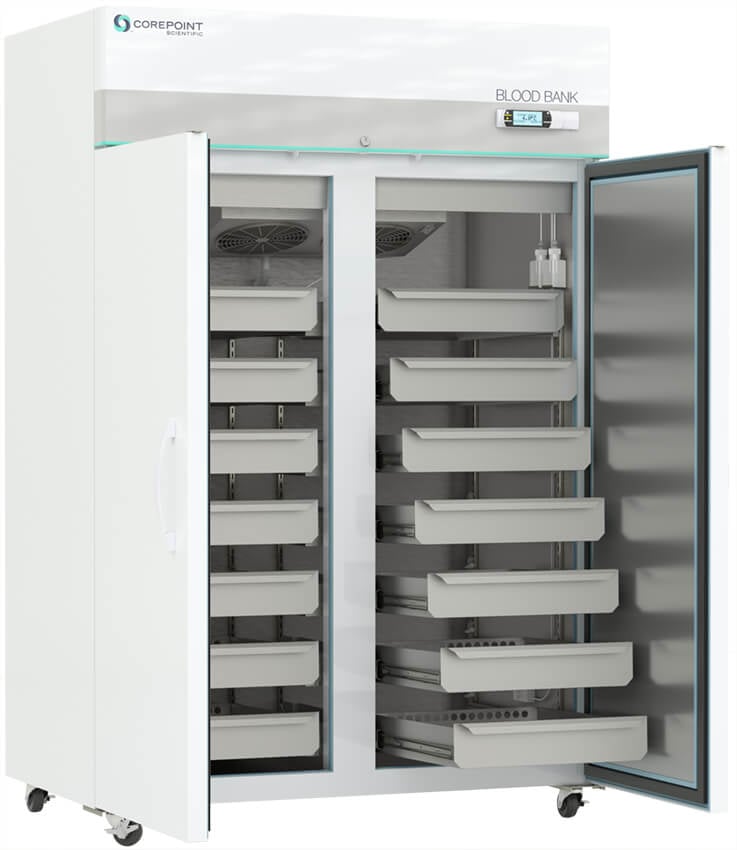

Item#: NSBR492WSW-0Corepoint Scientific Blood Bank 49 cubic foot Refrigerators are designed for safe storage of plasma at a temperature of +4°C. This blood bank refrigerator features (2) hinged solid doors, (14) stainless steel drawers and LED interior lighting. These refrigerators also come standard with 4 swivel casters, with front locking casters, external probe access and keyed door lock. The control system technology features a Proportional Integral Derivative (PID) microprocessor with LCD display with audible & visual alarms/indicators.
$11,686.00 $9,933.00
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Operational Environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage Capacity: 49 cu. ft. gross volume, up to 832 blood bags with optional 8th drawer per door
- Dimensions:
- Exterior (WxDxH): 54” x 36 3/8” x 81 ½”
- Interior (WxDxH): 49 1/8” x 26 ½” x 59”
- Door: Two swing solid doors, self-closing, stay position at 100° open, right and left hinged to open from the middle, non-reversible, magnetic sealed gasket, keyed lock
- Drawers: 7 drawers standard per door (14 drawers total) with option for 8th drawer per door (16 drawers total), 304 SS drawers, 65 lb. capacity each
- Mounting & Installation: 4 swivel casters, front casters locking
- Interior Lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- External Probe Access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior Materials: White powder coated steel
- Access Control: Key lock
- General Warranty: Two (2) years parts and labor warranty, excluding calibrations
- Compressor Warranty: Seven (7) years compressor warranty
- Product Weight: 636 lbs. (14 drawers)
- Shipping Weight: 755 lbs. (14 drawers)
- Rated Amperage: 4.5 Amps
- Power Plug/Power Cord: Hospital grade, NEMA 5-15, 9 ft nominal (2.7 m)
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing & Certification: FDA listed Class II medical device, 21CFR part 820 compliant, ETL, CETL Listed (certified to UL471 standard, hydrocarbon refrigerant safety)
- Optional Accessories: Additional 8th drawer per door, Chart paper, Mounting anchor, Upper solid ballast, Lower glycerol bottle kit (factory install only), IQ/OQ/PQ
For performance data please refer to data sheet.
Refrigeration System:
- Compressor: Hermetic, variable speed (VSC). Rated speed range: 1300-4000 rpm
- Refrigerant: EPA SNAP compliant, R600a, Isobutane
- Condenser: Anti-fouling tube and grid design, ultra-quite multi-speed fan
- Evaporator: Fin and tube design, high efficiency fan
- Defrost: Cycle optimized, zero energy
Controller, Configuration, Alarms & Monitoring:
- Controller Technology: Proportional Integral Derivative (PID) microprocessor with LCD display
- Battery Backup: 24V high capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
- Digital Communication: RS-485 (MODBUS)
- Chart Recorder: N/A
- Temperature Setpoint Range: 1°C to 10°C
- Display Probe: Calibrated, stainless steel
- External Alarm Connection: State switching remote alarm contacts
- Alarms: Visual and audible indicators, Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar
- Simulator Ballast: Upper probe: 4 oz. (120 ml) bottle, 50% glycerol mixture. Lower probe: Solid thermal media
Corepoint Scientific Blood Bank Refrigerator NSBR492WSW-0 Data Sheet
DownloadCorepoint Blood Bank Refrigerators & Freezers Literature
DownloadCorepoint Scientific Blood Bank Refrigerators User Manual
DownloadCorepoint Scientific Blood Bank Refrigerators and Plasma Freezers
-
