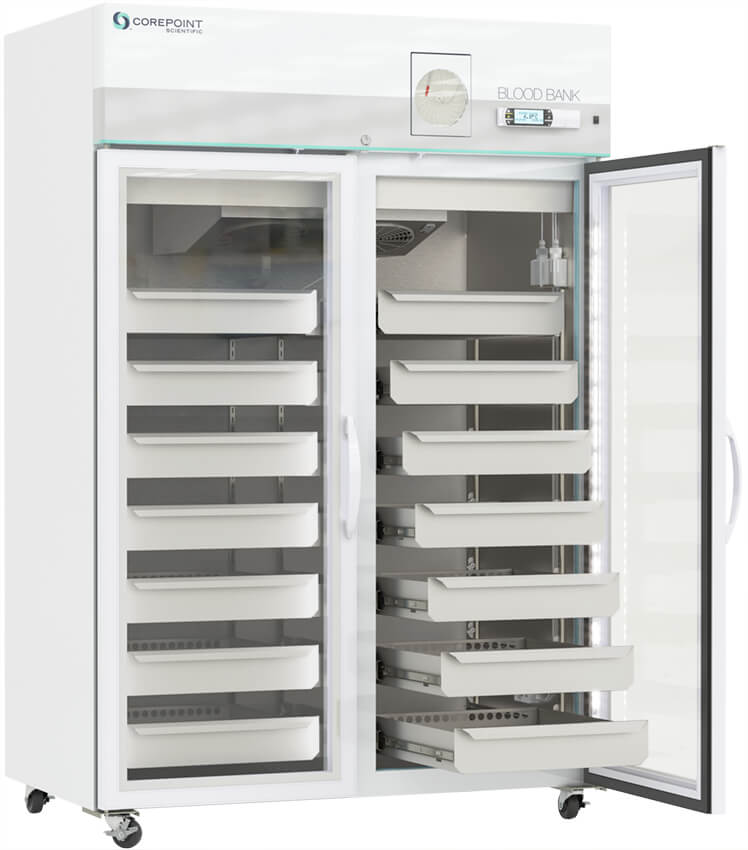

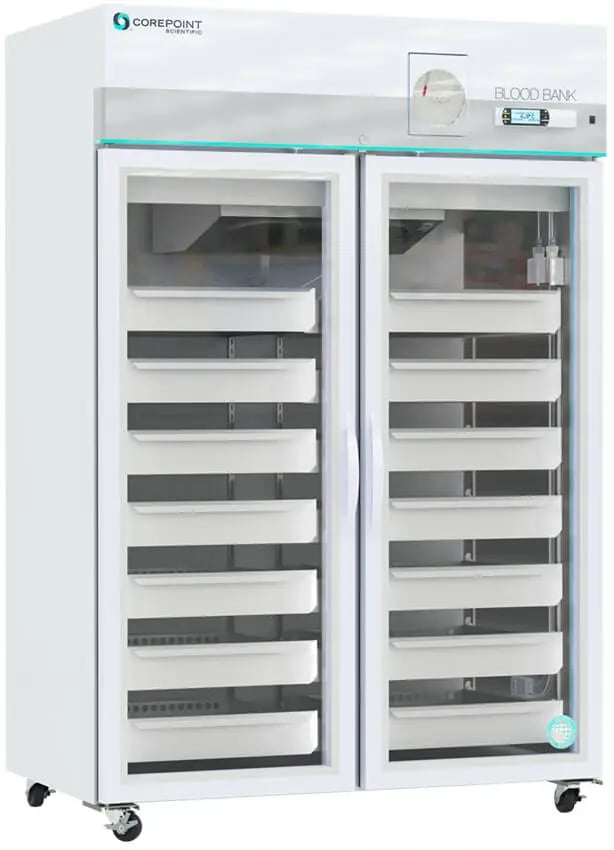

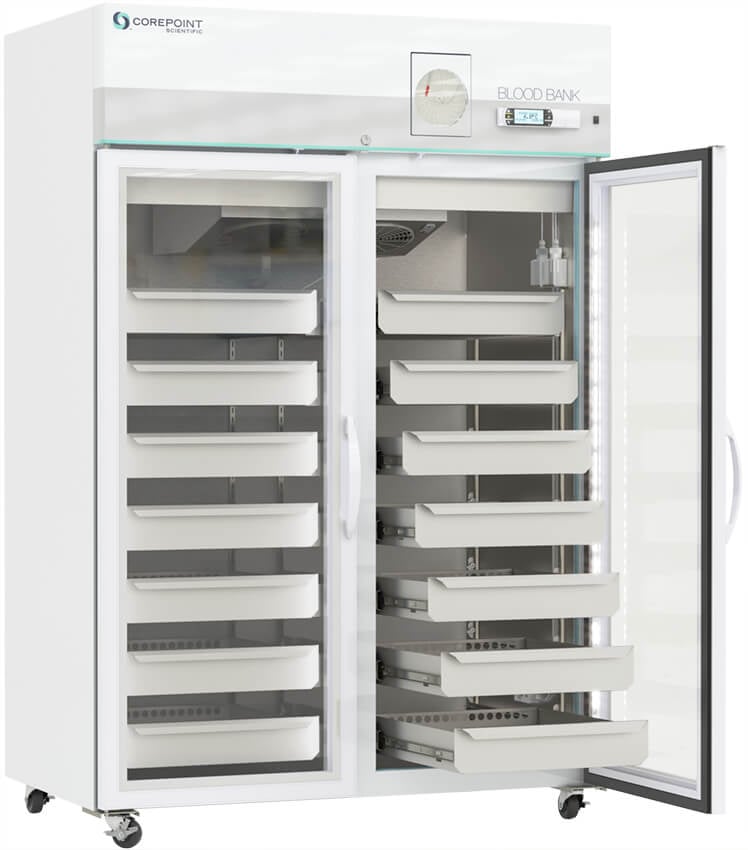

Corepoint Scientific Blood Bank Refrigerator with Chart Recorder | 49 Cu. Ft. | Glass Double Doors

• Operational Environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
• Storage Capacity: 49 cu. ft. gross volume, up to 832 blood bags with optional 8th drawer per door
• Dimensions:
  • Exterior (WxDxH): 54” x 35 3/4” x 81 ½”
  • Interior (WxDxH): 49 1/8” x 26 ½” x 59”
• Door: Two swing glass doors, self-closing, stay position at 100° open, right and left hinged to open from the middle, non-reversible, magnetic sealed gasket, keyed lock
• Drawers: 7 drawers standard per door (14 drawers total) with option for 8th drawer per door (16 drawers total), 304 SS drawers, 65 lb. capacity each
• Mounting & Installation: 4 swivel casters, front casters locking
• Interior Lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
• External Probe Access: Rear wall port (3/4") dia.
• Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
• Exterior Materials: White powder coated steel
• Access Control: Key lock
• General Warranty: Two (2) years parts and labor warranty, excluding calibrations
• Compressor Warranty: Seven (7) years compressor warranty
• Product Weight: 731 lbs. (14 drawers)
• Shipping Weight: 850 lbs. (14 drawers)
• Rated Amperage: 4.5 Amps
• Power Plug/Power Cord: Hospital grade, NEMA 5-15, 9 ft nominal (2.7 m)
• Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
• Agency Listing & Certification: FDA listed Class II medical device, 21CFR part 820 compliant, ETL, CETL Listed (certified to UL471 standard, hydrocarbon refrigerant safety)
• Optional Accessories: Additional 8th drawer per door, Chart paper, Mounting anchor, Upper solid ballast, Lower glycerol bottle kit (factory install only), IQ/OQ/PQ

For performance data please refer to data sheet.
