Blood Bank Refrigerator 49 Cu Ft With Hinged Glass Doors | Corepoint Scientific

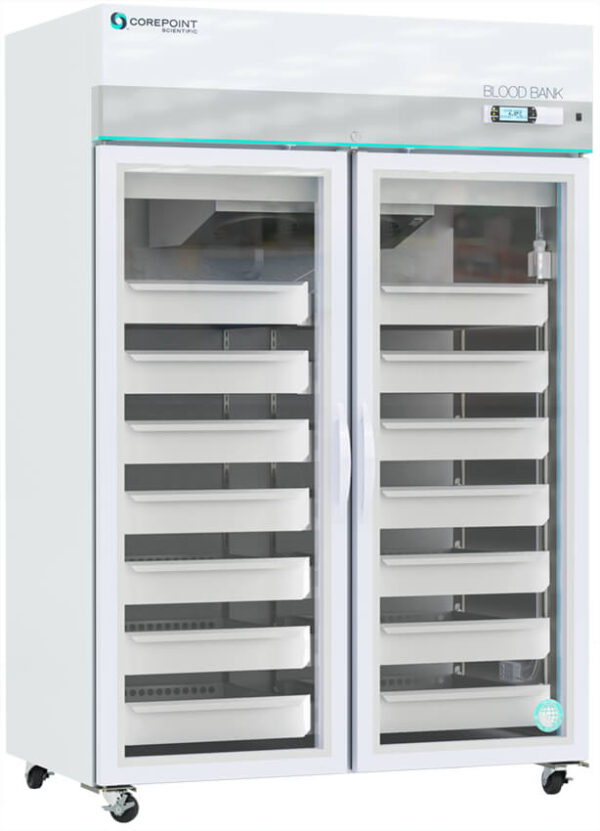

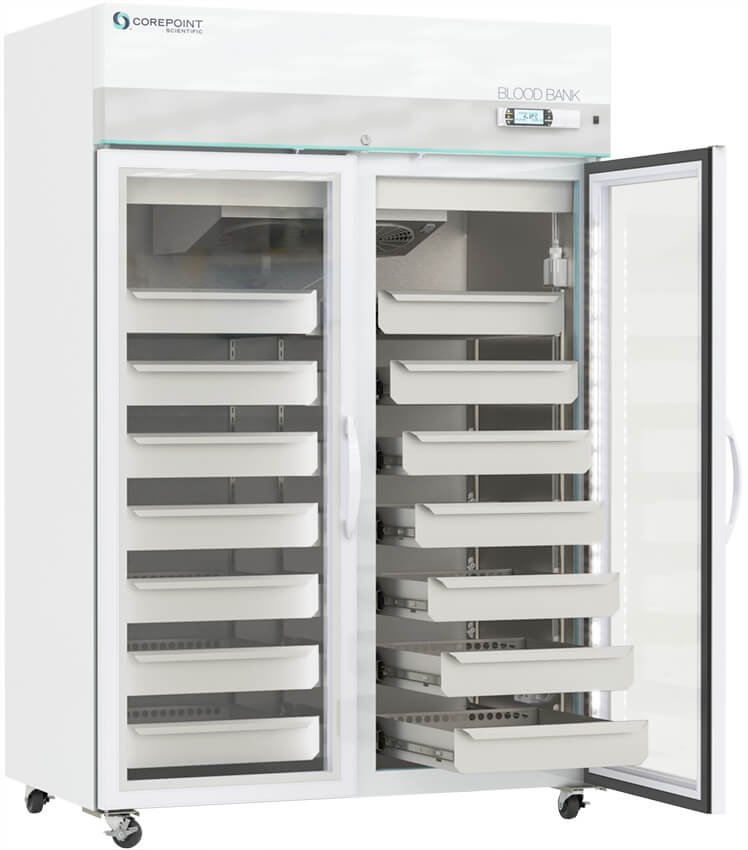

Item#: NSBR492WSG-0The Corepoint Scientific Blood Bank Refrigerator 49 Cu Ft is engineered for the safe and reliable storage of plasma and blood products at a stable +4°C. This 49 cubic foot unit features a high-visibility glass door, seven durable stainless-steel drawers, and bright LED interior lighting for quick inventory checks. Designed for clinical precision, it includes a PID microprocessor control system with an easy-to-read LCD display, as well as audible and visual alarms for temperature deviations. Mobility and security are built-in with 4 swivel casters (two locking), external probe access, and a keyed door lock. Ideal for hospitals, clinics, and blood centers, this Blood Bank Refrigerator 49 Cu Ft model ensures compliance with demanding storage standards while offering efficient organization and dependable temperature control.
$12,762.00 $10,848.00
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Operational Environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage Capacity: 49 cu. ft. gross volume, up to 832 blood bags with optional 8th drawer per door
- Dimensions:
- Exterior (WxDxH): 54” x 35 3/4” x 81 ½”
- Interior (WxDxH): 49 1/8” x 26 ½” x 59”
- Door: Two swing glass doors, self-closing, stay position at 100° open, right and left hinged to open from the middle, non-reversible, magnetic sealed gasket, keyed lock
- Drawers: 7 drawers standard per door (14 drawers total) with option for 8th drawer per door (16 drawers total), 304 SS drawers, 65 lb. capacity each
- Mounting & Installation: 4 swivel casters, front casters locking
- Interior Lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- External Probe Access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior Materials: White powder coated steel
- Access Control: Key lock
- General Warranty: Two (2) years parts and labor warranty, excluding calibrations
- Compressor Warranty: Seven (7) years compressor warranty
- Product Weight: 726 lbs. (14 drawers)
- Shipping Weight: 845 lbs. (14 drawers)
- Rated Amperage: 4.5 Amps
- Power Plug/Power Cord: Hospital grade, NEMA 5-15, 9 ft nominal (2.7 m)
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing & Certification: FDA listed Class II medical device, 21CFR part 820 compliant, ETL, CETL Listed (certified to UL471 standard, hydrocarbon refrigerant safety)
- Optional Accessories: Additional 8th drawer per door, Chart paper, Mounting anchor, Upper solid ballast, Lower glycerol bottle kit (factory install only), IQ/OQ/PQ
For performance data please refer to data sheet.
Refrigeration System:
- Compressor: Hermetic, variable speed (VSC). Rated speed range: 1300-4000 rpm
- Refrigerant: EPA SNAP compliant, R600a, Isobutane
- Condenser: Anti-fouling tube and grid design, ultra-quite multi-speed fan
- Evaporator: Fin and tube design, high efficiency fan
- Defrost: Cycle optimized, zero energy
Controller, Configuration, Alarms & Monitoring:
- Controller Technology: Proportional Integral Derivative (PID) microprocessor with LCD display
- Battery Backup: 24V high capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
- Digital Communication: RS-485 (MODBUS)
- Chart Recorder: N/A
- Temperature Setpoint Range: 1°C to 10°C
- Display Probe: Calibrated, stainless steel
- External Alarm Connection: State switching remote alarm contacts
- Alarms: Visual and audible indicators, Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar
- Simulator Ballast: Upper probe: 4 oz. (120 ml) bottle, 50% glycerol mixture. Lower probe: Solid thermal media
