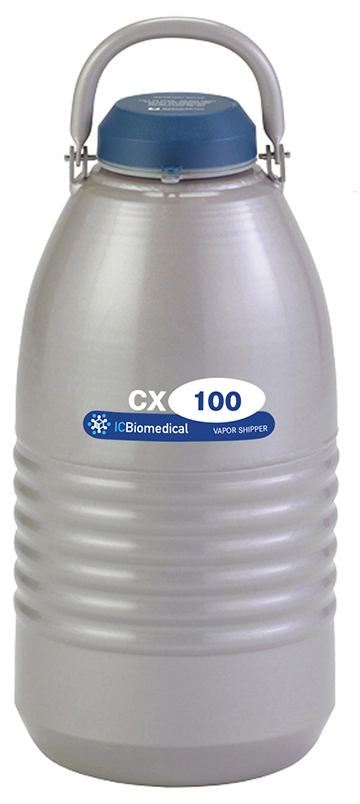

IC Biomedical CX100 Vapor Cryogenic Shipper with 11″ Canister (Capacity: 102 x 2.0mL Vials) – IATA Compliant
Item#: CX100-11MThe Cryo Express (CX) “dry shippers” are designed to safely transport a variety of materials at cryogenic temperatures. The unique adsorbent material prevents a liquid spill if the unit is tipped over. Storage temperature inside the shipping chamber remains at approximately -190°C until the liquid nitrogen evaporates from the absorbent material.
This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.
$1,398.00 $1,188.30
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Static Holding Days(1): 18
- Working Time Days(2): 17
- Evaporation Rate(1): 0.20 liters per days
- Liquid Nitrogen Adsorbed: 4.1 liters
- Weight Empty: 11.7 lbs / 5.3 kg
- Weight Full(3): 19 lbs. / 8.6 kg
- Neck Diameter: 2.78" / 71mm
- Overall Height: 18.4" / 467mm
- Overall Diameter: 9.2" / 234mm
- No. of Canisters: 1
- Canister Dimensions: 2.64" x 11" / 67 x 279mm
-
Canister Material: Thin gauge stainless steel
- No. of 1.2ml & 2.0ml Vials (5/cane): 85
- No. of 1.2ml & 2.0ml Vials (6/cane): 102
- No. of 1/2 Straws (10/cane): 280
- No. of 1/2 cc Straws - Bulk (2 levels): 800
*Comes complete with Necktube Core.
**Straws, canes and vials are not included. See related products for available canes (1 case required) and vials (1 case required).
***The CX Series complies with International Air Transport Association (IATA) Dangerous Goods Regulations PI202-PACKING INSTRUCTION 202 for Open Cryogenic Receptacles as outlined in sections (A) through (J).
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Working time is an arbitrary, reference-only value to estimate container performance under the actual operating conditions.
(3) Without canisters or racks.
- Advanced Concept Adsorbent enables faster charging
- Complies with IATA regulations
- New rugged construction includes dependable, stronger necktube design, ribbed high strength aluminum body and durable paint system.
- Superior vacuum performance with super insulation provides maximum holding times
- Lockable lids
- Temperature logger is available (contact us for more information)
-
Warranty: 2 year vacuum
IC Biomedical CX100 Brochure
DownloadIC Biomedical CX Series Safety
DownloadIC Biomedical Vapor Shippers Catalog
DownloadIC Biomedical CX Series Spec Sheet
DownloadIC Biomedical Dry Shipper Series Manual
DownloadCharging a CX/CXR Dry Shipper from Worthington Industries
