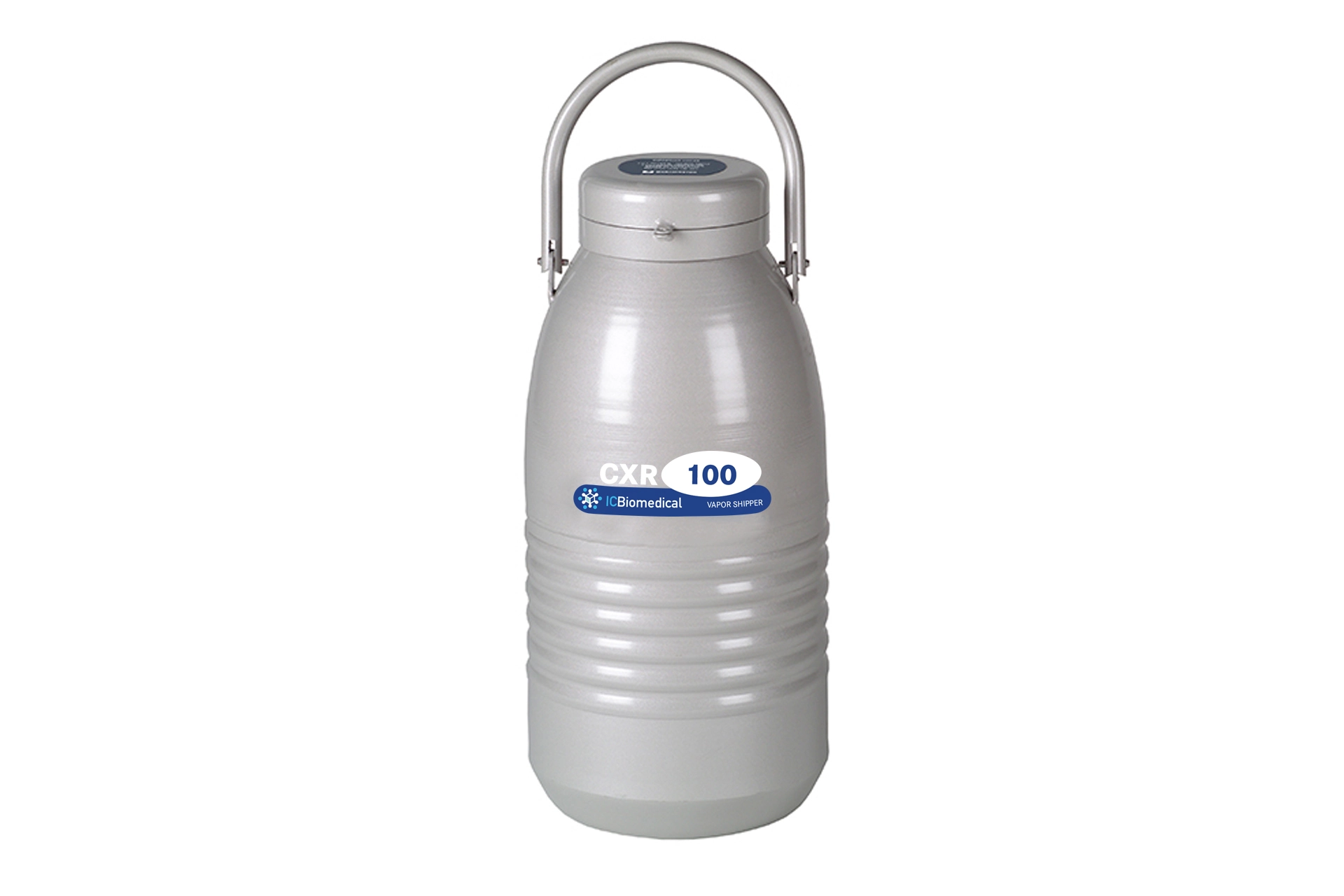

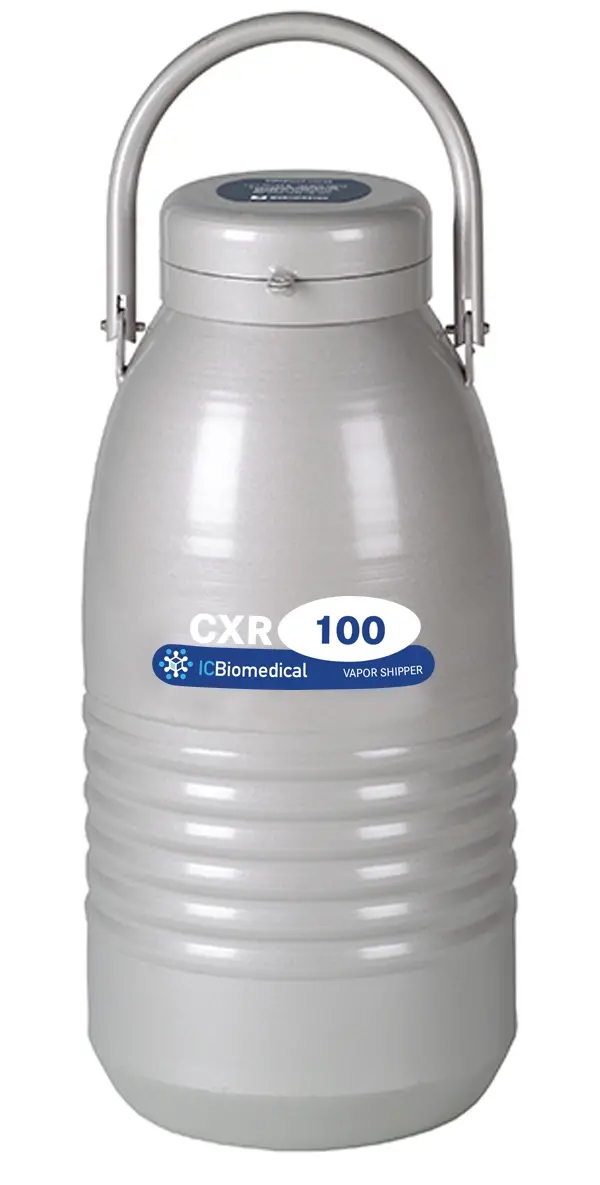

IC Biomedical CXR100 Cryogenic Shipper with Replaceable Absorbent Material and 11″ Canister (Capacity: 102 x 2.0mL Vials) – IATA Compliant
Item#: CXR100-11MThe Cryo Express (CX) “dry shippers” are designed to safely transport a variety of materials at cryogenic temperatures. The unique adsorbent material prevents a liquid spill if the unit is tipped over. Comes complete with Necktube Core. Storage temperature inside the shipping chamber remains at approximately -190°C until the liquid nitrogen evaporates from the absorbent material.
This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.
$1,516.00 $1,288.60
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Static Holding Days(1): 16
- Working Time Days(2): 11
- Evaporation Rate(1): 0.23 liters per days
- Liquid Nitrogen Adsorbed: 3.7 liters
- Weight Empty: 11.7 lbs / 5.3 kg
- Weight Full(3): 18.3 lbs. / 8.3 kg
- Neck Diameter: 3.58" / 91mm
- Overall Height: 19.4" / 493mm
- Overall Diameter: 9.2" / 234mm
- No. of Canisters: 1
- Canister Dimensions: 2.64" x 11" / 67 x 279mm
-
Canister Material: Thin gauge stainless steel
- No. of 1.2ml & 2.0ml Vials (5/cane): 85
- No. of 1.2ml & 2.0ml Vials (6/cane): 102
- No. of 1/2 Straws (10/cane): 280
- No. of 1/2 cc Straws - Bulk (2 levels): 800
*Comes complete with Necktube Core
**Straws, canes and vials not included. See related products for available canes (1 case required) and vials (1 case required).
***The CX Series comply with International Air Transport Association (IATA) Dangerous Goods Regulations PI202-PACKING INSTRUCTION 202 for Open Cryogenic Receptacles as outlined in sections (A) through (J).
- Advanced Concept Adsorbent enables faster charging
- Complies with IATA regulations
- New rugged construction includes dependable, stronger necktube design, ribbed high strength aluminum body and durable paint system.
- Superior vacuum performance with super insulation provides maximum holding times
- Lockable lid
- Temperature logger is available (contact us for more information)
-
Warranty: 2 year vacuum
IC Biomedical CXR100 Brochure
DownloadIC Biomedical CX Series Safety
DownloadIC Biomedical Vapor Shippers Catalog
DownloadIC Biomedical CX Series Spec Sheet
DownloadIC Biomedical Dry Shipper Series Manual
DownloadIC Biomedical Vapor Shippers User Manual
DownloadCharging a CX/CXR Dry Shipper from Worthington Industries
-
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 x CGA 295
Item #: 1600-9C68$529.00$449.65 -
Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$60.00$51.00 -
LN2 Dipper for IC Biomedical Liquid Nitrogen Systems
Item #: R018-8C50$156.00$132.60 -
IC Biomedical Model 83 Phase Separator (1 1/4″ x 1/2″ OD, 1/8″FNPT)
Item #: 1193-8C83$64.00$54.40 -

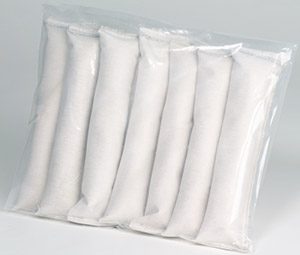

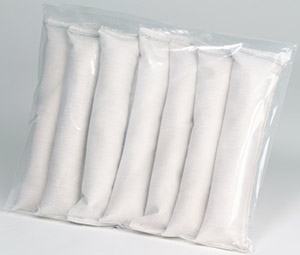

Replacement Absorbent Set for CXR100 & CXR500
