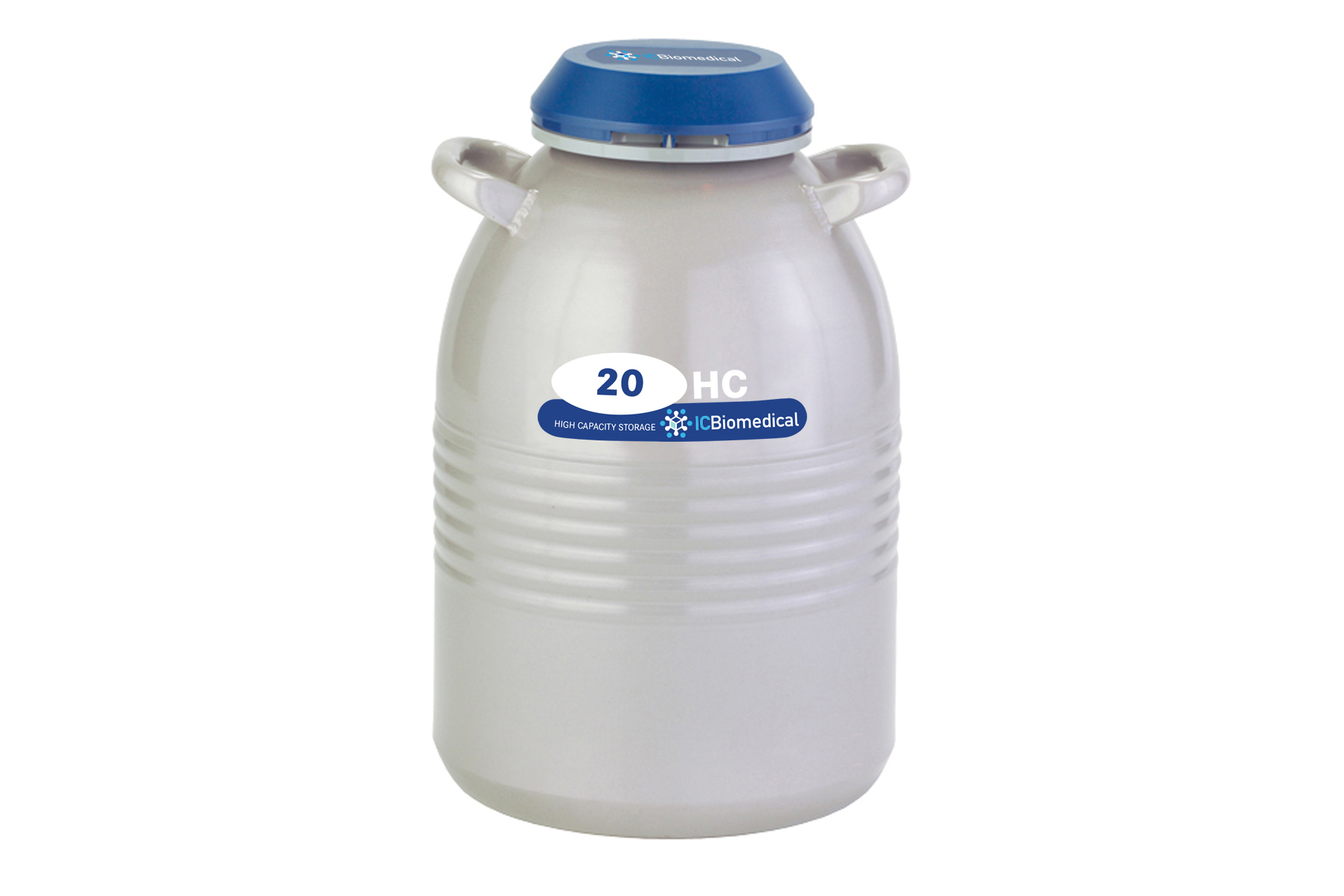

IC Biomedical HC20 Series Liquid Nitrogen Freezer with (6) 11″ Canisters (Capacity: 684 x 2.0 ml vials)
Item#: 20HCB-11MThe HC Series Liquid Nitrogen LN2 dewars are designed for storing large quantities of a variety of materials at cryogenic temperatures. Provides temperatures of -196ºC at the liquid surface and -190ºC at the canister top.
$1,607.00 $1,365.95
Supplier: IC Biomedical (Taylor Wharton)
Tags: Cold Storage Products, Liquid Nitrogen Tanks- Capacity (Liters.): 20
- Empty Weight: 26.4 lbs. (12 kg)
- Full Weight: 62 lbs. (28.2 kg)
- Neck Diameter: 3.6" (91mm)
- Outer Diameter: 15.6" (396mm)
- Total Height: 24.25" (615mm)
- Static Evaporation Loss Rate (Liters/day): 0.23
- Static Holding Time (Days): 87
- Canister O.D.: 2.75" (70mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): n/a
- Straw Holding Capacity Double Level (0.5ml): 5880
- Warranty: 5 years vacuum
*Comes complete with necktube core and canisters.
**Straws, canes and vials are not included. See related products for available canes (3 cases required) and vials (1 case required)...
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Work time is an arbitrary, reference-only value to estimate container performance under actual operating conditions.
(3) Without canisters.
- Large storage capacity
- New rugged construction including ribbed high strength aluminum body, magniformed necktube design, and more durable paint
- Convenient canister numbered index location ring and tapered internal spider
- Superior vacuum performance with super insulation provides maximum holding times
- Security - optional low-level alarm is available with remote monitor and lockable lid
- Mobility - roller bases are available for all models
- Warranty: 5 years vacuum
-
