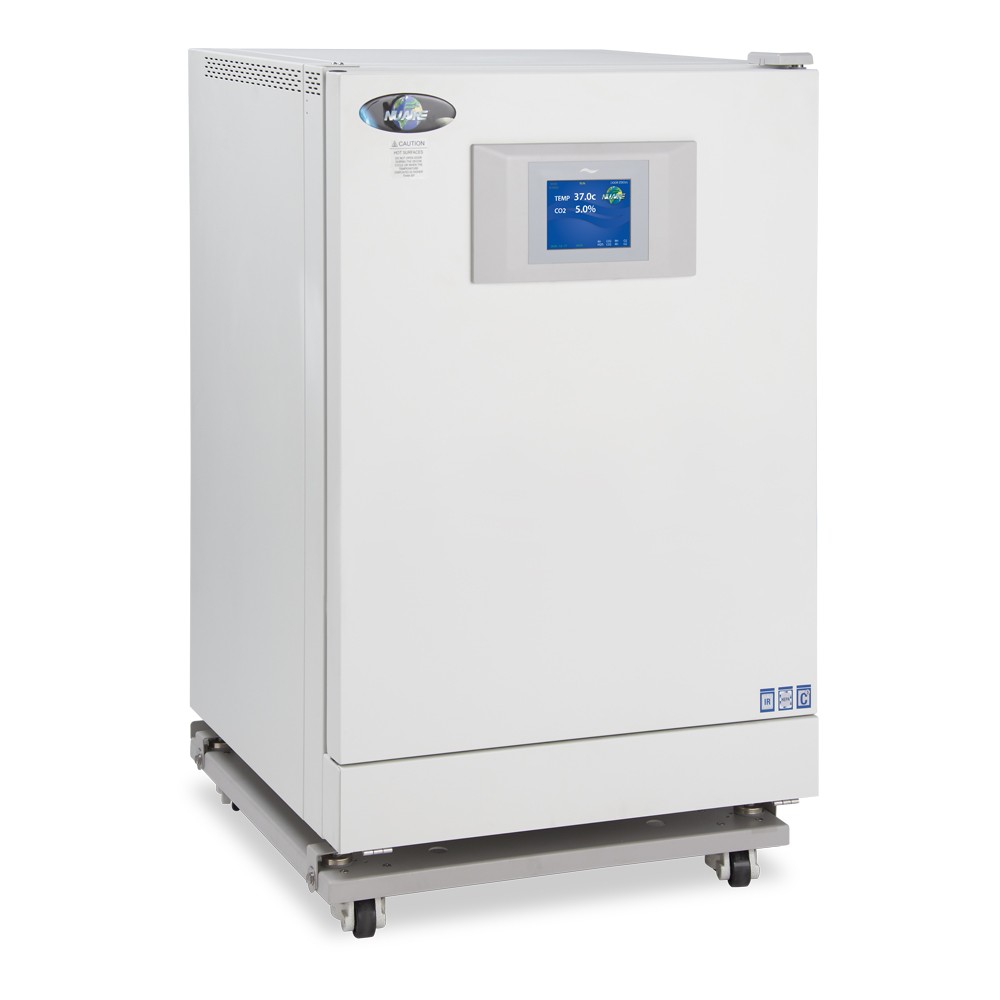

NuAire In-VitroCell ES NU-5800 Direct Heat CO2 Incubator | 7.06 cu. ft. (200L)
Item#: NU-5800NuAire NU-5800 7.06 cu. ft. direct heat CO2 incubator is designed to provide stable environmental control for tissue culture, embryo development, and biological research applications in biotechnology, pharmaceutical, and academic laboratories. This In-VitroCell ES incubator uses direct heating elements surrounding the growth chamber to maintain uniform temperature conditions while supporting precise CO2 regulation for sensitive cell culture environments. The system incorporates infrared CO2 sensing, microprocessor-based environmental control, and integrated communication outputs including USB, RS-485, and 4–20 mA for monitoring and data logging within laboratory management systems. Key specifications include a temperature control range from 5°C to 55°C with ±0.35°C uniformity at 37°C, CO2 control from 0.1% to 20% with ±0.1% accuracy, and a 7.06 cu. ft. (200 L) chamber with adjustable stainless steel shelving and integrated humidity support.
Dimensions:
- Exterior Dimensions (W x D x H): 26.75 x 27.12 x 41.5 in. (679.5 x 689 x 1054 mm)
- Foot Print (W x D): 23.75 x 20.75 in. (603.2 x 527.1 mm)
- Interior Dimensions (W x D x H): 21.5 x 21 x 26.5 in. (546.1 x 533.4 x 673.1 mm)
- Volume: 7.06 ft3 (200 L)
- Net Weight: 235 lbs (106 kg)
Temperature Control:
- Control Range: 5° above ambient (to a 30° max ambient) to 55°
- Set-Point Range: 5°C to 55°C (37.0 Default)
- Uniformity: ±0.35°C @ 37°C
- Accuracy: ± 0.1°C
- Recovery: 0.12°C/min. on Average
- Display Resolution: 0.1°C
- Door and Perimeter Heater Control Logic: Base Duty Cycle set to chamber temperature Set-Point Proportional 0-100% [manually adjustable]
- Temperature Sensor Type: Precision Integrated Circuit
CO2 Control Standard:
- Range: 0.1 to 20% 5% Default Set Point
- Accuracy: ±0.1%
- CO2 Recovery: Up to 5% ±0.2% / -0.5 in 5 minutes Average
- CO2 Display Resolution: 0.1%
- CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
- CO2 Sensor Type: Infrared (NDIR)

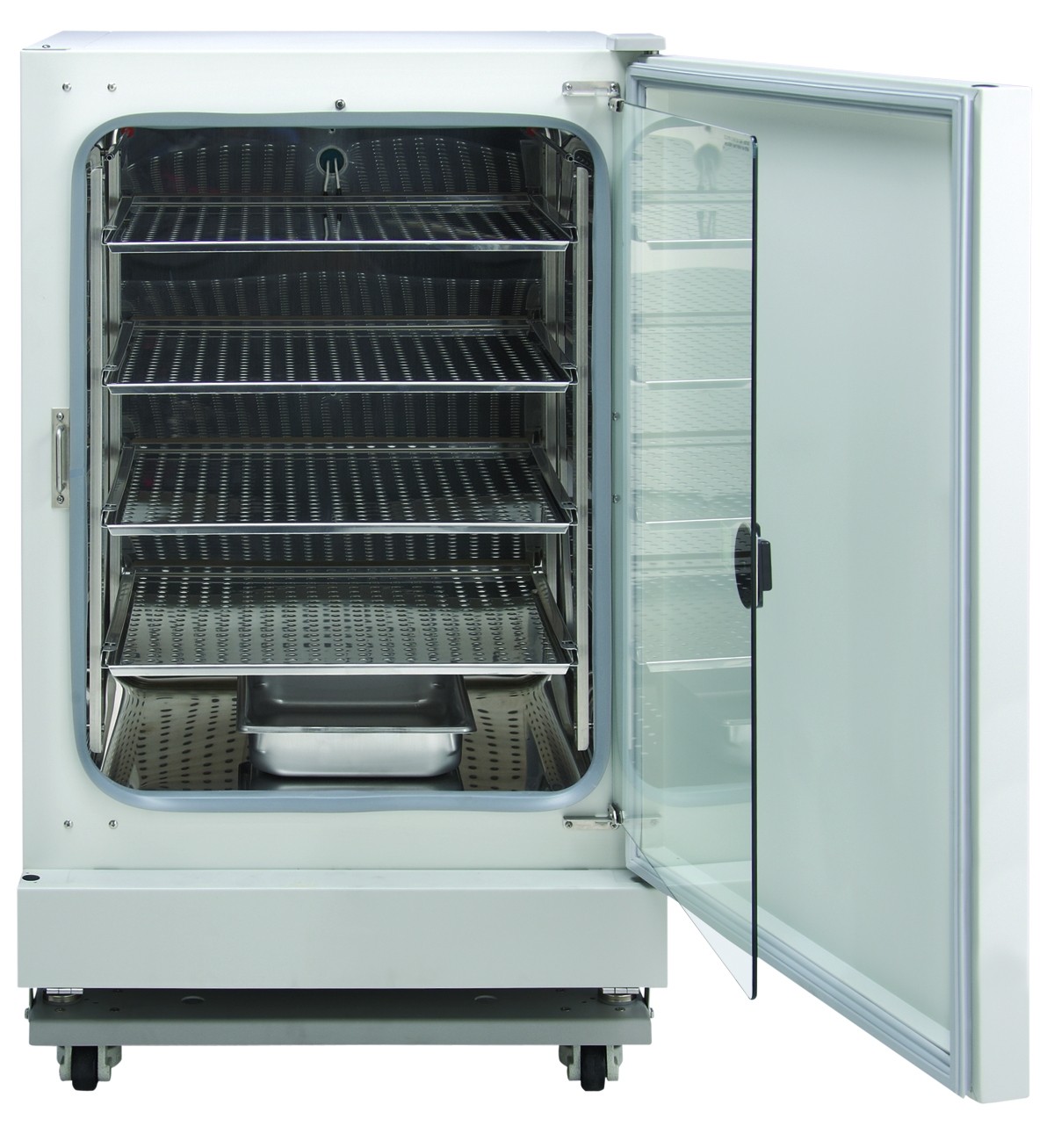

- Four (4) Stainless Steel Shelves
- Eight (8) Stainless Steel Shelf Guides
- Four (4) Shelf elf Brackets
- Field Reversible Outer Door
- Remote Alarm Output Contacts
- 4 to 20 mA Analog Output
- RS-485 Communication
- USB Port
- CO2 Sample Port
- Adjustable Leg Levelers
- Access Port and plug with breather holes
- One (1) Water Pan
- One (1) 6.5 ft. / 2 m Electrical Cord
-
