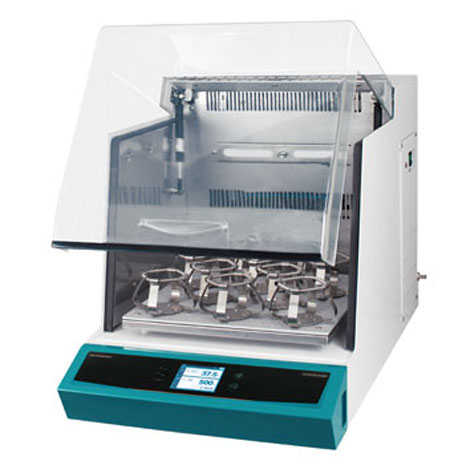

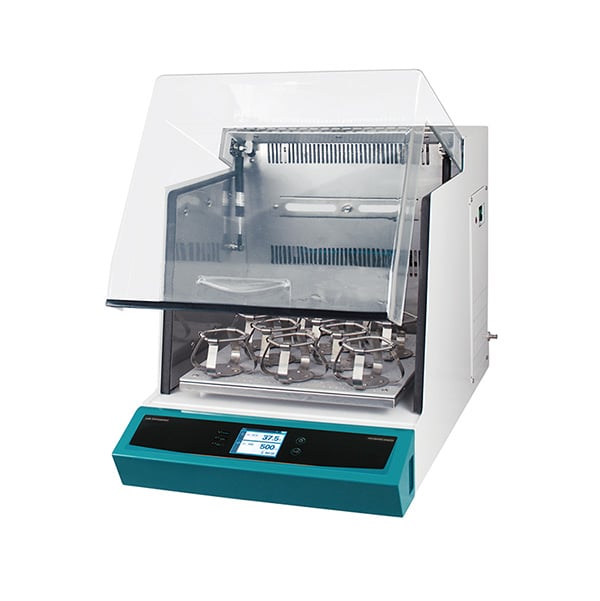

Jeiotech IST-3075 Incubated Tabletop Shaker (53L / 1.9 cu ft)

Name: Jeiotech IST-3075 Incubated Tabletop Shaker (53L / 1.9 cu ft)
Brand: Jeio Tech
SKU: AAH23465U
Availability: InStock

Item#: AAH23465U

Please Note: image shown includes additional accessories not included with purchase

~~$7,009.00~~ $6,448.00

Supplier: Jeio Tech

Chamber volume (L / cu ft): 53 / 1.9
Temperature-
- Range (℃ / ℉): Amb. +5 to 80 / Amb. +9 to 176
- Fluctuation at 37℃ (±℃ / ℉): 0.1 / 0.18
- Variation at 37℃ (±℃ / ℉): 0.5 / 0.90
Shaking System-
- Motion type: Orbital
- Amplitude size (mm / inch, dia.): 19.1 / 0.75
- Speed range (RPM): 20 to 500
- Accuracy: ±1% of set speed (>100rpm) / ±1 (≤100rpm)
- Timer: 1 min. to 999 hr 59 min.
- Max. load (kg / Ibs): 10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm
Dimensions-
- Exterior (W×D×H): 440x785x510 mm / 17.3"x30.9"x20.1"
- Interior (W×D×H): 410×410×320 mm / 16.1"×16.1"×12.6"
- Platform (W×D) (mm / inch): 350×350 / 13.8×13.8
- Net weight (Kg / lbs): 65 / 143.3
Electrical requirements (120V, 50 / 60Hz): 7.5A (230V model available, use AAH23422K)

Performance

Temperature range:
- Ambient +5°C to 80°C for IST-3075 / 4075.
- Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
Competitive high shaking speed up to 500 rpm.
Orbital shaking motion in 19mm diameter.
Microprocessor PID control.
Three point temperature calibration / Automatic tuning.
Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
Air-tight silicone door seal to provide excellent temperature uniformity

Convenience

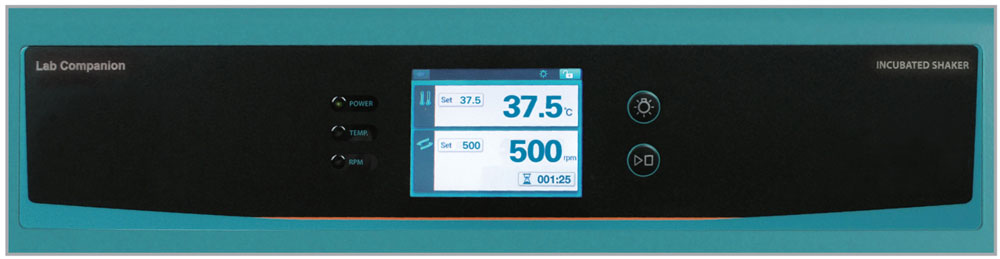

Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Wide sample monitoring and convenient sample loading.
- Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
- Gas spring lid supports providing smooth motion, soft opening and closing.
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Corrosion resistance stainless steel interior.
Built-in RS-232 port and USB port for external control and data collection.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety
