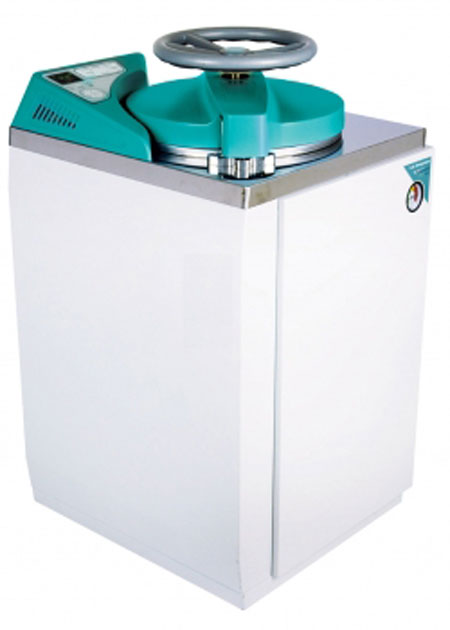

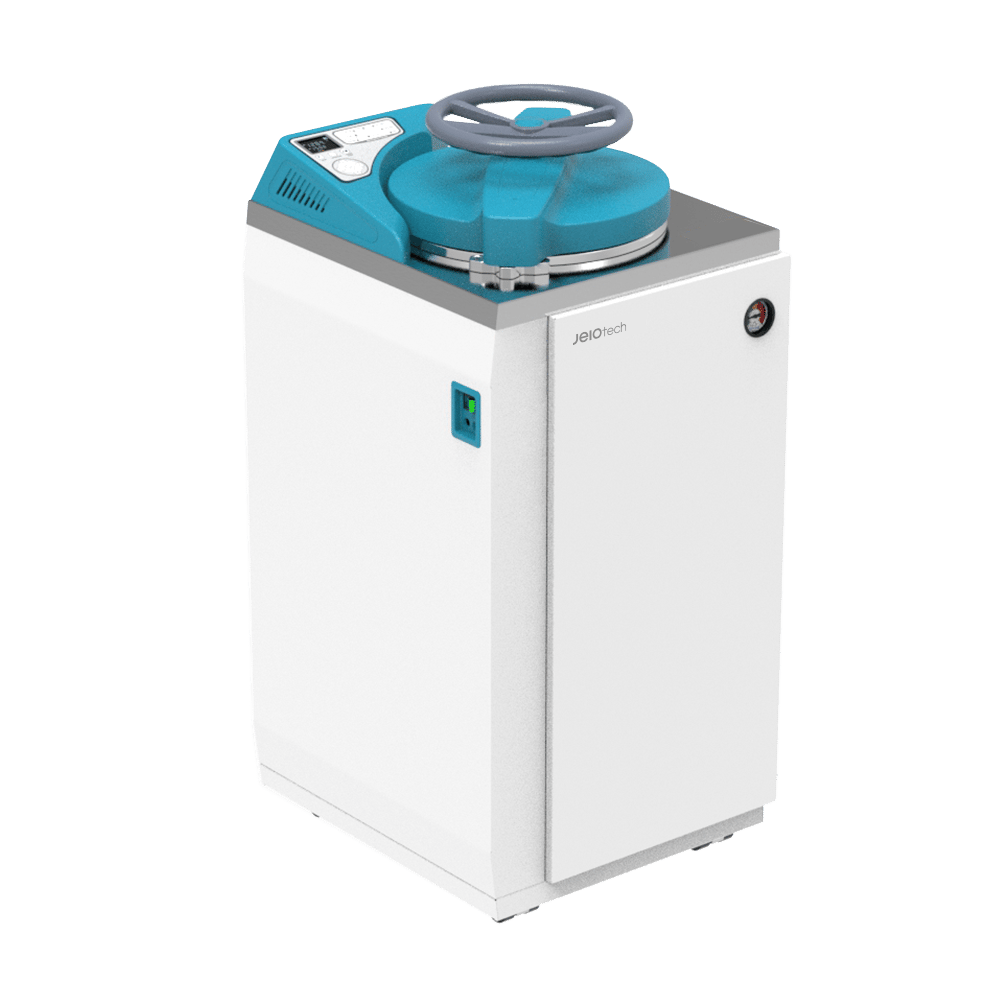

Jeio Tech ST-105G Vertical Autoclave (105L / 3.7 cu ft)
Item#: AAHL1045KThe Jeio Tech ST-105G is a 105L vertical autoclave for laboratory sterilization, heat treatment, and melting applications. Its top-loading chamber accommodates large-volume samples while conserving floor space. PID feedback control and auto-tuning support precise sterilization temperatures from 110 to 123°C.
Multiple operating modes and automatic exhaust simplify routine sterilization workflows. Safety systems monitor pressure, temperature, water level, and door status to help protect users and samples. Casters, an exhaust tank, and a drain bucket support convenient installation, mobility, and maintenance.
$11,539.00 $10,616.00
- Control: Microprocessor PID control
- Chamber volume (L / cu ft): 105 / 3.7
- Temperature-
- Sterilization temp. (℃ / ℉): 110 to 123 / 230 to 253.4
- Melting temp. (℃ / ℉): 60 to 100 / 140 to 212
- Pressure-
- Sterilization at 121℃ (kg/cm2): 1.1 to 1.2
- Gauge range in analog (Mpa): - 0.1 to 0.6
- Permissible altitude (m): Up to 800
- Safety:
- Over temperature protector / Pressure safety valve / Over current protector
- Warning alert (over temp. / low temp. / low heat / sterilization fail / low water level)
- Timer: 0 to 999 min.
- Dimensions-
- Exterior (W×D×H): 624x672x1233 mm / 24.57"x26.46"x48.54"
- Exterior w/ Exhaust tank (W×D×H): 722x672x1233 mm/ 28.42"x26.46"x48.54"
- Interior (W×H): 400x908 mm / 15.75" x 35.75"
- Door max. opening (W×D×H): 1012x672x1245 mm/ 39.84"x26.46"x49.01"
- Basket (ØxH) (mm / inch): 380x405 / 14.96x15.94
- Net weight (Kg / lbs): 110 / 242.51
- Electrical requirements (230V, 50 / 60Hz): 21.3A
Performance
- Microprocessor controller and temperature calibration function allows for high precision temperature control.
- Sterilization temperature at 110 to 123°C
- Melting* temperature at 60 to 100°C
* Liquefaction of coagulated agar media. - Automatic sterilization system for unattended operation.
- Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End - Convenient operation modes for various uses.
- Standard modes and program modes are listed in detail as below tables. - Temperature calibration function.
| Standard modes | Temp.(°C) | Time(min.) |
|---|---|---|
| Decontamination | 121 | 35 |
| Solids sterilization | 121 | 20 |
| Liquids sterilization | 121 | 15 |
| Melting | 100 | 30 |
| Program modes | Temp.(°C) | Time(min.) |
|---|---|---|
| Sterilization 1 | 110 to 123 | 1 to 999 |
| Sterilization 2 | 110 to 123 | 1 to 999 |
| Liquid sterilization | 110 to 123 | 1 to 999 |
| Melting | 60 to 100 | 1 to 999 |
Convenience
- Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
- VFD for visualization of temp, pressure(optional), timer, warning alert checks.
- LED lamps for sterilization process check.
- Easy pressure check with the standard gauge attached to the front. - Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
- Baskets are stackable two high or even more levels, which secure inside the chamber space requirements. - Low-maintenance
- The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
- Easy to replace silicone gasket. - Convenient documentation with the optional data recorder.
- Dot type recorder(6 point) allows for precise documentation.
Safety
- Mechanical safety devices
- Over current protection.
- Over temperature protection by automatic power cutoff.
- Over pressure protection by automatic and manual safety valve. - Safety warning systems
- Over temperature warning.
- Low temperature warning.
- Low water level warning.
- Low heat warning if the temperature does not reach the sterilization or melting temperature.
- Sterilization fail warning if the operation is unexpectedly stopped during sterilization process. - Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.
