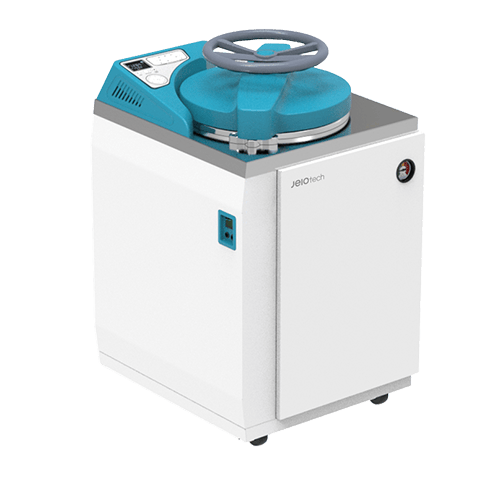

Jeio Tech ST-65G Vertical Autoclave (65L / 2.29 cu ft)
Item#: AAHL1025KThe Jeio Tech ST-65G is a 65 L vertical autoclave for laboratory sterilization, heat treatment, and melting applications. Its top-loading chamber accommodates large-volume samples while conserving floor space. PID feedback control and auto-tuning support precise sterilization temperatures from 110 to 123°C.
Multiple operating modes and automatic exhaust simplify routine sterilization workflows. Safety systems monitor pressure, temperature, water level, and door status to help protect users and samples. Casters, an exhaust tank, and a drain bucket support convenient installation, mobility, and maintenance.
$9,616.00 $8,847.00
- Temperature
- Sterilization (℃ / ℉): 110 to 123 / 230 to 253.4
- Melting (℃ / ℉): 60 to 100 / 140 to 212
- Pressure
- Sterilization at 121℃ (kg / cm2): 1.1 to 1.2
- Gauge range in analog (Mpa): -0.1 to 0.6
- Dimensions
- Volume (L / cu ft): 65 / 2.29
- Internal (Ø x H, mm / inch): 400 x 558 mm / 15.75 x 21.97 in
- External (W x D x H, mm / inch): 624 x 672 x 971 mm / 24.57 x 26.46 x 38.23 in
- External with Exhaust Tank (W x D x H, mm / inch): 722 x 672 x 971 mm / 28.42 x 26.46 x 38.23 in
- Door Max. Opening (W x D x H, mm / inch): 1012 x 672 x 983 mm / 39.84 x 26.46 x 38.7 in
- Basket (Ø x H, mm / inch): 380 x 230 / 14.96 x 9.05
- Net weight (kg / lbs): 99.5 / 219.36
- Electrical requirements (230V, 50/60Hz (A)): 14.3
Proven Control Capability
- Verified according to KS P 6102, providing a more reliable sterilization environment.
- Verified stable temperature control performance by measuring the inside with 10 of temperature sensor.
Structural Functional Features
- Easy to open and close with circular handle.
- Including pressure gauge for internal pressure verification.
- Exhaust tank provided as standard.
- Including drain bucket for use cleanly.
- Upper part is made of stainless steel and is easy to maintain.
- Vertical, top loading system makes it easy to sterilize large volume samples.
- Casters for easy mobility during installation or relocation.
Use Convenience Features
- Easy operation environment allowing the whole sterilization process to be started with just one operation.
- Three operation modes provided according to usage.
- Precise temperature control with PID Feedback control and Auto Tuning.
- Automatic exhaust after the sterilization process.
- LED display lamp for clear VFD and sterilization step to check operation status and sterilization progress conveniently.
- Including sterilization elapsed time display.
- Additional temperature sensor and recorder for recording sterilization procedure. (option)
- Pressure for each step can be checked with pressure sensor. (option)
- Including manual valve for releasing internal pressure.
Outstanding Safety
- Preventing users from get burnt by using safety door cover made of plastic with low thermal conductivity.
- Automatic operation of safety valve when overpressure occurs.
- Over temperature protection. (over temperature limiter)
- Low level of solution alarm. (low level limiter)
- Overcurrent and short circuit protection.
