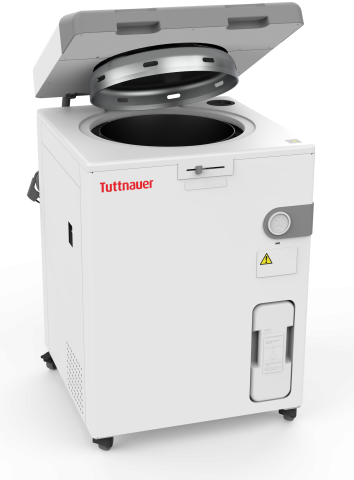

Tuttnauer LabSci 60LV Vertical Lab Autoclave | 230V

Item#: LABSCI60LV

The Tuttnauer LabSci 60LV is a 60 L vertical laboratory autoclave designed for research and educational facilities. Its floor-standing chamber supports general laboratory sterilization and larger loads, including bulky vessels and bioreactors. A multicolor touchscreen provides straightforward cycle setup and status monitoring.

Two integrated temperature probes support liquid sterilization while helping prevent boil-over. Built-in cycle memory and network monitoring support documentation and oversight of routine sterilization. The self-contained design requires no plumbing, simplifying installation in laboratories with limited utility connections.

Request a Quote

Supplier: Tuttnauer

External Dimensions: 25.4“ (W) x 38.8“ (H) x 31.9“ (D)
Chamber Volume: 60 Liter
Chamber Dimensions: 15.4” x 27.6”
Electrical Power, Voltage & Frequency:
- 220-240V, VAC, Single Phase
- 5400W
- 22.3 Amps
- 50-60 Hz
- NEMA L6-30

Wastewater Tank: 3 Liters
Cooling Water Tank: 6 Liters
Maximum Allowable Working Pressure: 40.6 psi
Weight: 264.5 lbs

Loading Capacities:

Erlenmeyer Flasks:
- 250 ml (Ø 85 ×143 mm)-13 units × 2 baskets
- 500 ml (Ø 105 × 183 mm)- 8 units × 2 baskets
- 1000 ml (Ø 131 × 230 mm)- 5 units × 2 baskets
- 2000 ml (Ø 166 × 280 mm)-3 units × 1 baskets
BOTTLES / Schott Duran Size
- 250 ml (Ø 70 ×143 mm)-19 units × 2 baskets
- 500 ml (Ø 86 × 182 mm)- 12 units × 2 baskets
- 1000 ml (Ø 101 × 203 mm)- 8 units × 1 baskets
- 2000 ml (Ø 136 × 260 mm)-4 units × 1 baskets

Simple to Use: Multi-colored touchscreen control makes it simple operate.
Easy to install: No plumbing required.
Integrated Temperature Probes: All liquid capable sterilizers include 2 temperature probes to prevent boil-over and ensuring proper sterilization
Large loads: Perfect for large horizontal objects like Bioreactors
Options:
- Warming (95° to 104°C), Isothermal (80° to 94°C)
- F₀ feature
- 21 CFR
- R.PC.R software
- Biohazard filter
Connectivity:
- Standard USB Connection- Download cycle history to store it on the network
- Optional External Printer- Gives you a detailed cycle report
- IOT Ready: WIFI/Cloud connection will soon be available Ideal for (future) remote monitoring
Remote Monitoring:
- Remote monitoring of multiple autoclaves from any PC on your local network in real time
- Automatic downloading of cycle history to your PC
- Built-in memory is capable of storing approximately 1000 cycles
- Generate PDFs from cycle analysis that can easily be printed for future reference
- R.P.C.R can also analyze, and store cycle history downloaded with USB drive
