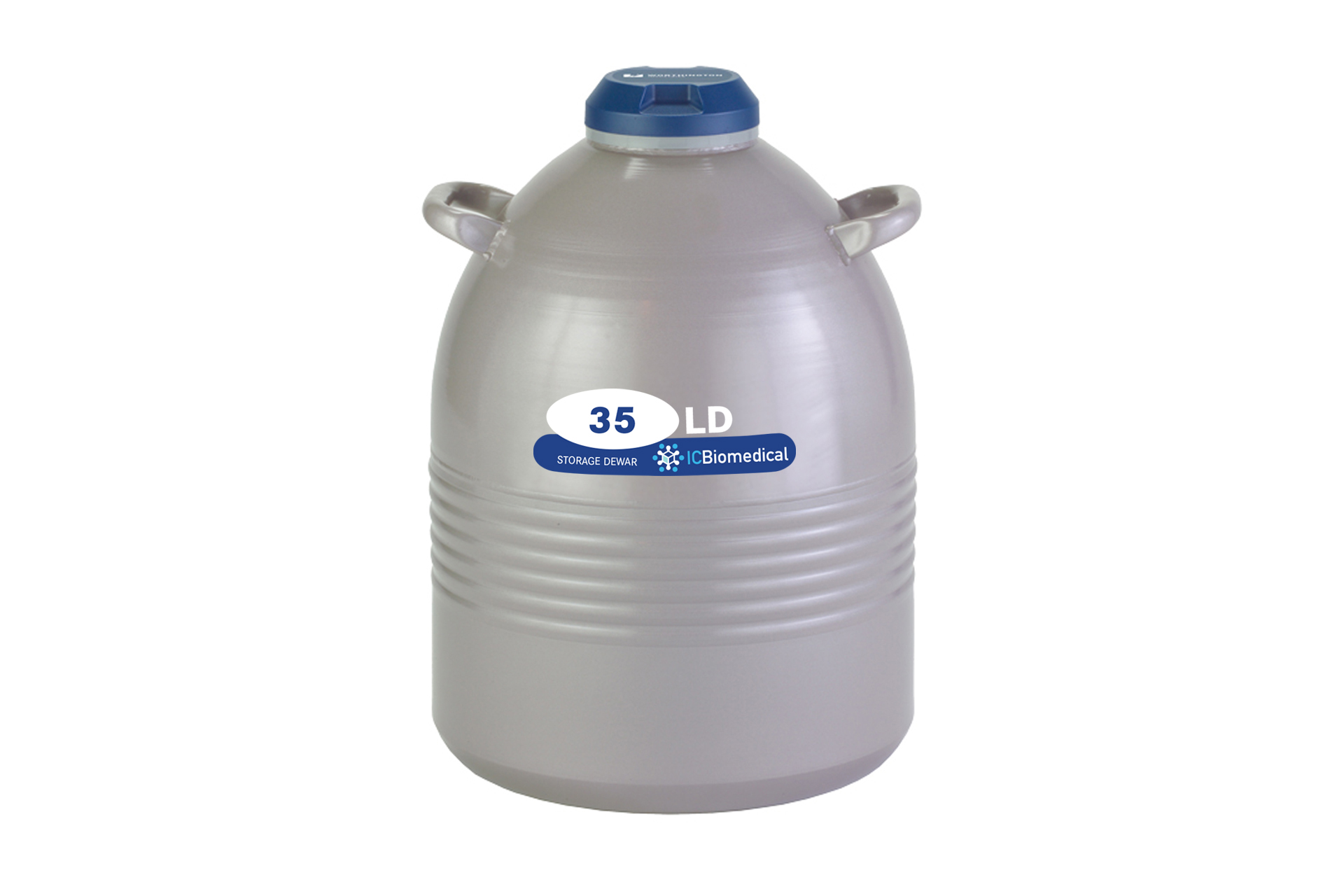

IC Biomedical LD35 Aluminum Cryogenic Dewar (Capacity: 35L)
Item#: 35LDThe LD35 Aluminum Cryogenic LN2 dewars from IC Biomedical is designed for storing and dispensing up to 35L of liquid nitrogen capacity. The IC Biomedical (formerly Taylor Wharton) LD Series of cryogenic dewars are designed for laboratory research and clinical applications.
$1,418.55 $1,205.77
- Static Holding Days(1): 152
- Evaporation Rate(1): 0.23
- Liquid Nitrogen Capacity: 35 liters
- Weight Empty: 35.1 lbs. / 16.0 kg
- Weight Full: 97.4 lbs / 44.3 kg.
- Neck Diameter: 2.5" / 64mm
- Overall Height: 26.3" / 668mm
- Overall Diameter: 18.8" / 475mm
*Comes complete with a necktube core.
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
- High performance modern construction and advanced insulation materials assure high thermal efficiency
- New rugged construction, ribbed high strength aluminum body, magniformed necktube design, and more durable paint system
- Easy operation lightweight snap-on cap and necktube assures tight closure and easy access, convenient larger handles
- Superior vacuum performance with super insulation provides maximum holding times
-
Warranty: 5 year vacuum
-
