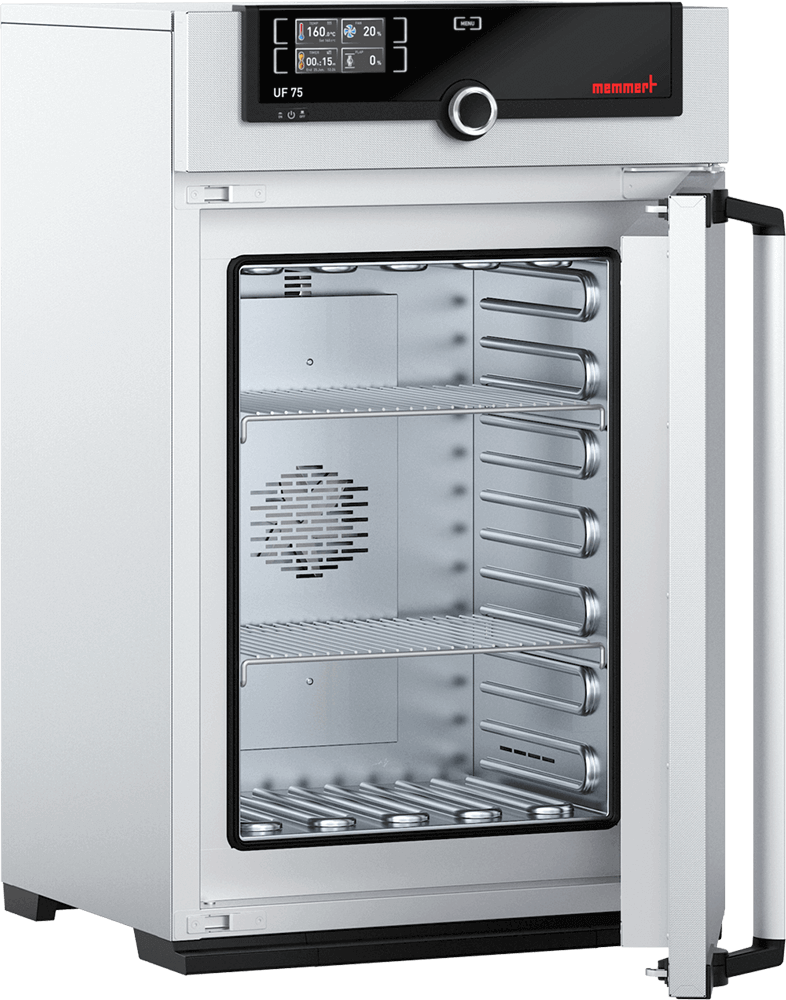

Memmert UF75 Universal Forced Circulation Lab Oven, 115V | 2.7 Cu. ft.
Item#: UF75115VMemmert UF75 universal forced circulation oven is a 2.7 cu. ft. laboratory oven designed for temperature-controlled heating, drying, conditioning, and material testing applications in research, pharmaceutical, and industrial laboratories. The unit provides precise temperature control from ambient +10°C to 300°C using a PID microprocessor controller and forced-air circulation technology for excellent temperature uniformity throughout the chamber. A high-definition ControlCOCKPIT display supports advanced programming, calibration, and monitoring, while the stainless-steel interior ensures durability and easy cleaning. Integrated overtemperature protection, auto-diagnostic functions, and a robust chamber capacity make the UF75 a dependable solution for demanding thermal processing workflows.
$3,621.00
- Volume Approx: 2.7 ft/ 74 L
- Interior Width: 15.7.0 in / 400 mm
- Interior Height: 22.0 in / 560 mm
- Interior Depth: 13.0 in 330 mm
- Number of Stainless Steel Grids (Standard Equipment):
- Maximum Number of Grids: 6
- Maximum Loading per Grid: 44 lb / 20 kg
- Maximum Loading of Chamber: 265 lb / 120 kg
- Net weight approx.: 146 lbs
- Gross weight carton approx.: 192 lbs
- 115 V (+ / - 10%), 50/60 Hz / 19.1 amps
- 3 Year Warranty
- Temperature: 1 Pt100 sensor DIN class A in 4-wire-circuit
- Set temperature range: min.10°C above ambient up to +300°C
- Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
- ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
- Function SetpointWAIT: the process time does not start until the set temperature is reached
- Language Setting: German, English, Spanish, and French
- Calibration: three freely selectable temperature values
- Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
- Auto diagnostic system: for fault analysis
