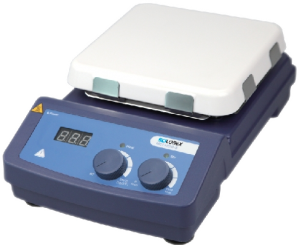

MS7-H550-Pro LCD Digital Magnetic Hotplate-Stirrer with Ceramic Glass Plate
Item#: 813223007 inch square hotplate magnetic stirrers are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields. Magnetic hotplate-stirrers from Scilogex have a PID temperature technology which precisely controls the heating process, rapidly reaches target temperature and enhances control accuracy, heating up to +550°C. These units have glass ceramic plates which are extremely resistant to corrosion and easy to clean. The clear displays show the current temperature and rotation speed, allowing for easy adjustment until appropriate targets are reached. An electronic speed control also ensures a constant speed is maintained, even during changes in load; they generally offer a rotation speed of up to 1500 rpm (depending on the model chosen). A wide variety of accessories are available including a PT-1000 sensor for accurately controlling the medium's temperature.
$872.00 $741.20
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Temp range: Ambient - 550°C
- Speed range: 100-1500rpm
- Temp accuracy at plate: ±1(100°C)
- Temp control accuracy of liquid using PT- 1000 Sensor: ±0.2°C
- Temp increments: 1°C
- Heat output: 1000W
- Max. Stirring Qty: 20 Liters
- Heating rate (1 liter water): 6K/min
- Speed/Heat display : LCD (backlit)
- Motor type: Brushless
- Plate size: 7 x 7"
- Plate material: Ceramic-Glass
- Dimensions: 14"L x 8.5"W x 4.5"H
- Weight: 11lbs
- Voltage: 110Volts 60Hz, 450
- Easy-to-read backlit LCD display
- Heat only, stir only or heat and stir together functions
- RS232 for remote control
- Low temperature stability
- Accessory PT-1000 Sensor for medium temperature control available
- Electronic speed control for constant speed even during changes in load
- Maintenance free brush less motor for long life
- High magnetic adhesion
- Hot warning above 50°C
- 2 YEAR WARRANTY
*PT-1000 Temperature Sensor, Support Rod & Clamp not included*
SCILOGEX Magnetic Hotplate Stirrers Literature
DownloadUser Manual for SCILOGEX 7x7 Digital Hotplate-Stirrer
DownloadSCILOGEX Magnetic Hotplate Stirrers Accessories Literature
DownloadSCILOGEX MS7-H550-Pro Hotplate-Stirrer
-
Gold Quarter Reaction Block for Scilogex Hotplates-Stirrers (Capacity: 4 x 16ml Vials)
Item #: 18900049$98.00$83.30 -
Purple Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 4 x 20ml Vials)
Item #: 18900003$92.00$78.20 -
Green Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 6 x 8ml Vials)
Item #: 18900048$104.00$88.40 -
PT1000 Sensor with Glass Protective Sleeve for MS-H-Pro-Plus, MS7-H550-Pro, MS7-H550-S-LED & MS-H280-Pro
Item #: 18900136$214.00$181.90 -
Black Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 4 x 16ml Vials)
Item #: 18900005$104.00$88.40 -
PT-1000 Temperature Sensor for MS-H-Pro-Plus, MS7-H550-Pro, MS7-H550-S-LED & MS-H280-Pro Hotplate-Stirrers
Item #: 18900016$58.00$49.30 -
PT-1000 Temperature Sensor Support & Clamp for Hotplate-Stirrers
Item #: 18900017$81.00$68.85 -
Blue Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 4 x 30ml Vials)
Item #: 18900004$98.00$83.30 -
Red Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 11 x 4ml Vials)
Item #: 18900002$110.00$93.50
