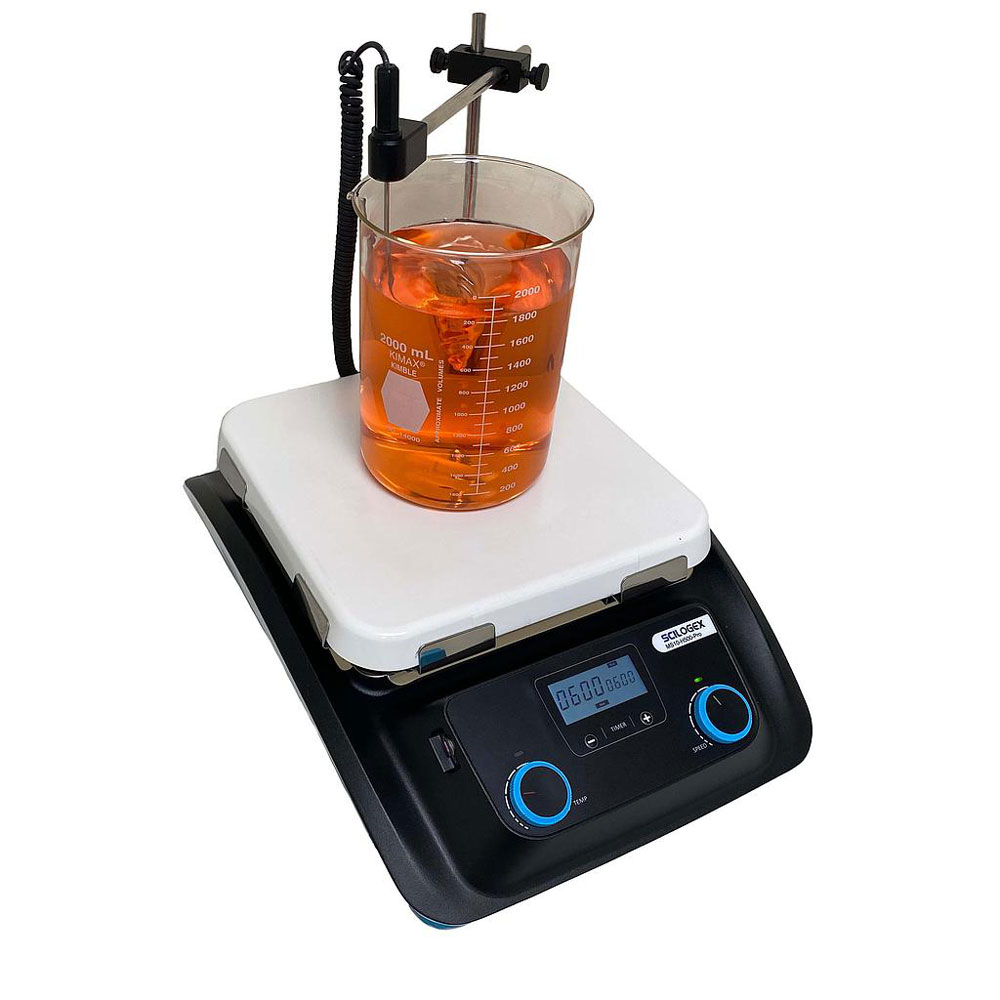

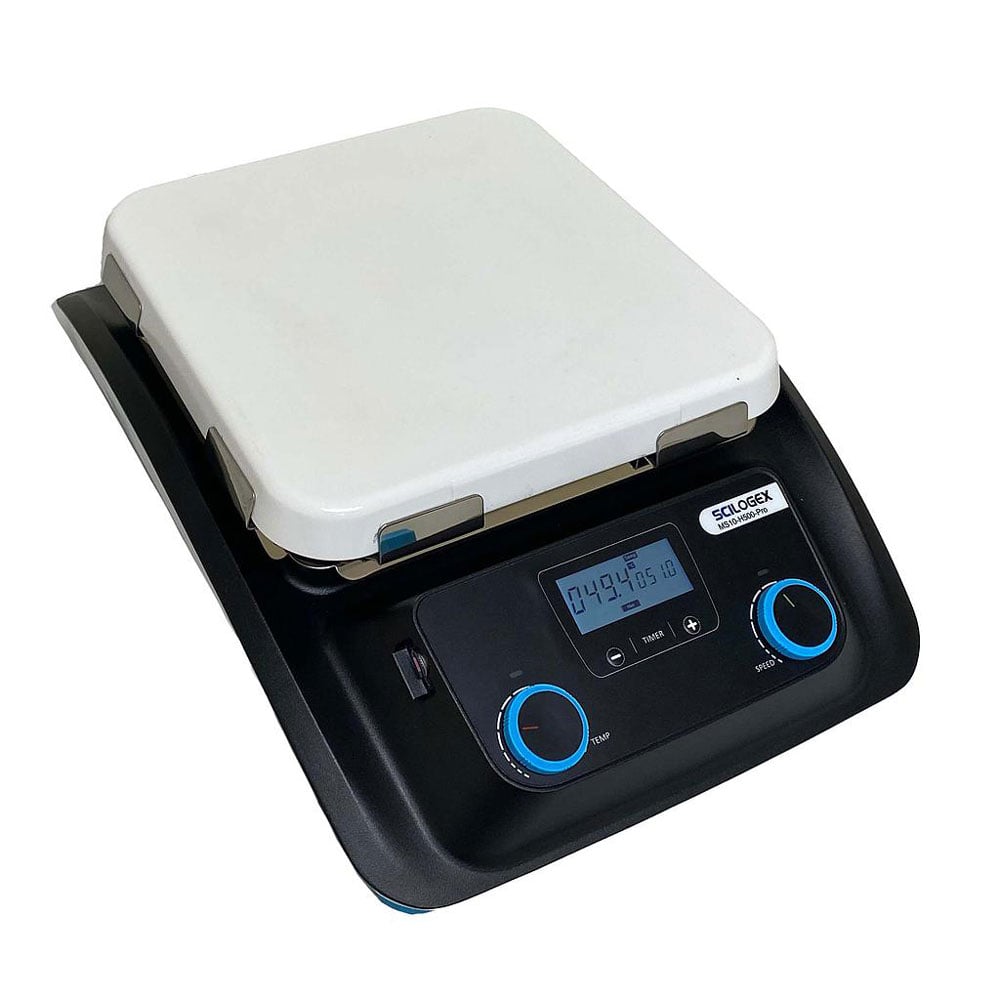

SCILOGEX SCI500HS-Pro LCD Digital 10×10 Magnetic Hotplate Stirrer (500°C Max.)

Item#: 80301321159999

The Scilogex SCI500HS-Pro LCD Digital 10x10 Magnetic Hotplate Stirrer features large volume, up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring. This hotplate stirrer also includes an LCD display for precise monitoring of speed and temperature.

$1,165.00 $932.00

Request a Quote
Supplier:
  • Work plate Dimension [WXD]: 254x254mm(10inch)
  • Work plate material: Glass ceramic
  • Motor type: Brushless DC motor
  • Stirring positions: 1
  • Stirring quantity [H2O]: 30L
  • Magnetic bar[length]: 80mm
  • Speed range: 100-1500rpm resolution±1rpm
  • Speed, Time, Temperature display: LCD
  • stirring quantity [H2O]: 10L
  • Timer display: 1min-99h59min
  • Heating Temperature range: Room Temp. -500°C, increment 1°C
  • Temperature control accuracy: ±1°C(<100°C) ±1%(>100°C)
  • Overheating Protection(°C): 540
  • Temperature Display Accuracy: ±0.1°C
  • External temperature sensor:PT1000 (accuracy ±0.2)
  • "Hot" warning (°C): 50
  • Data Connector: SD Card
  • Protection Class: IP21
  • Power: 1400W
  • Heating output (W): 1350
  • Voltage, Frequency: 100-120/200-240V 50/60Hz
  • Dimensions [WxDxH]: 328x424x138mm
  • Weight (kg): 7.18
  • Permissible Ambient Temperature and Humidity: 5-40° C, 80%RH
  • Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
  • Glass ceramic work plate provides excellent chemical resistant performance and efficient heat transfer
  • LCD display for precise monitoring of speed and temperature. Liquid temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C
  • Digital speed control of 100~1500 rpm
  • heating plate temperature 500°C
  • The "Hot" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

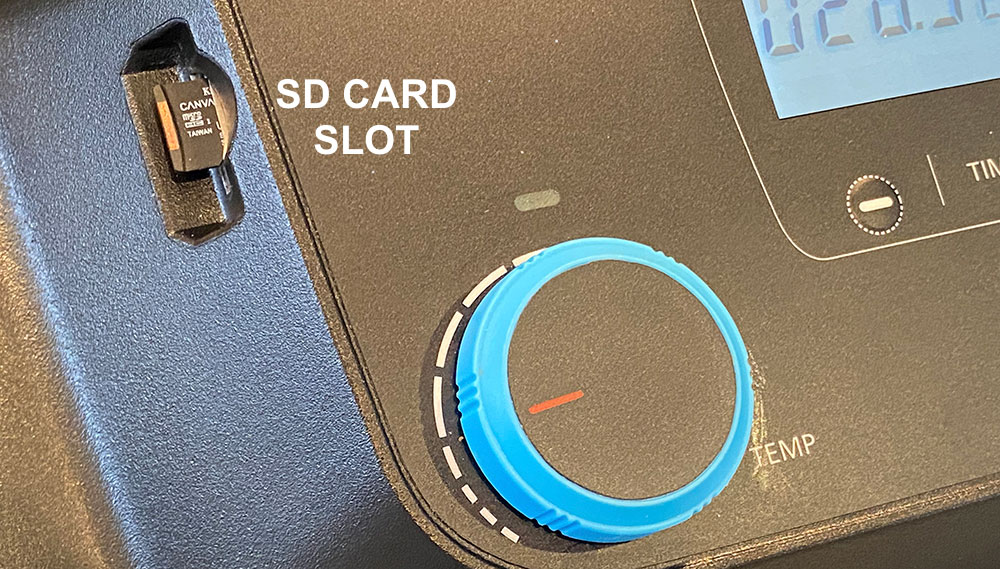

  • Free SD card records the instrument's running data in real time
  • Timing function, the running time of the instrument can be set

SCILOGEX SCI500HS-Pro Hotplate-Stirrer- Specification Sheet

Download
