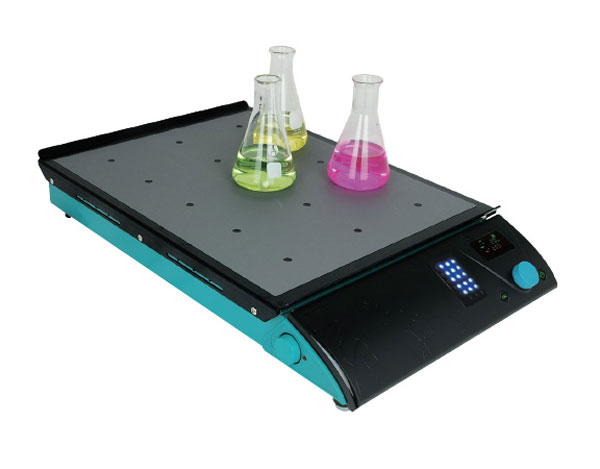

Jeio Tech MS-53MH Multi Position Hotplate & Magnetic Stirrer
Item#: AAHK34023UThe Jeio Tech MS-53MH Multi Position Hotplate & Magnetic Stirrer has temperature control. It has 4 kinds of stirring control mode in 2 models provided with 9/15 position.
$5,102.00 $4,694.00
Heating
- Temperature range (℃ /℉): Top plate, Max, 120 / 248
- Control mode: Scale
- Heating Power (W): 1000
Stirring
- Speed range (rpm): 30 to 2000
- Capacity per point at 2,000rpm (H2O, mL / cu ft): 500 / 0.017

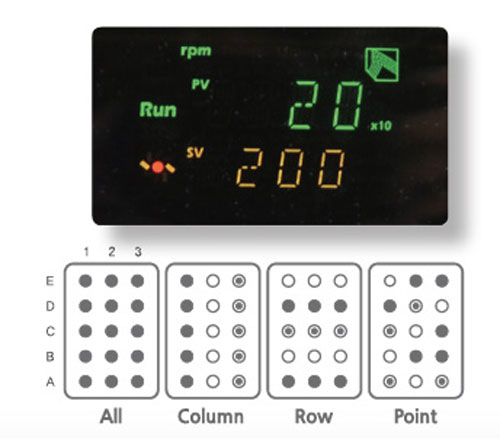

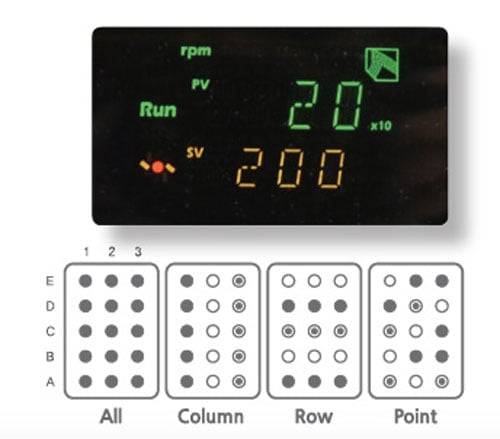

- Operating mode: 4 (All, Column, Row, Point)
- Position (Row x Column): 15 (5 x 3)
- Point distance (W x D, mm / inch): 117 x 90 / 4.61 x 3.54
- Magnetic bar , Max. (L x Ø, mm / inch): 30 x 8 / 1.18 x 0.31
- Load, Max. (kg / lbs): 30 / 66.14
Material
- Top plate: Aluminum
- Body: Powder coated steel
- Motor type: BLDC (Brushless Direct Current)
Dimension
- Top plate (Ø or W x D, mm / inch): 385 x 493 / 15.16 x 19.41
- Exterior (W x D x H, mm / inch): 395 x 614 x 104 / 15.55 x 24.17 x 4.09
- Net weight (kg / lbs): 15 / 33.06
Timer: Max. 99 hrs 59 min.
Electrical requirements: (120V, 60Hz, A) 11.2
Structural Functional Features
- Integrated design with top plate and heater for fast heat transfer and excellent durability.
- Using special permanent magnets for maintaining stirring ability.
- Control by All/Column/Row/Point with four stirring control methods and timer function.
Use Convenience Features
- Separate heater knobs and operation LED display.
- Maintains accurate speed with feedback control even when sample viscosity and amount change.
- Count-down timer provided. (up to 99 hours and 59 minutes)
- Rapid stirring and stop function according to the user’s needs.
- VFD display with excellent visibility and visibility.
Outstanding Safety
- The upper part of the top plate is composed of silicon pads, allowing for prevention of slippage of glassware and display of stirring point.
- Spill-proof design minimizes inflow solution into device.
- Safety ensured by BLDC motor that does not generate sparks.
- Safe by automatically shutting down the heater power when overheated.
- Prevents sample run-off thanks to smooth stirring start.
