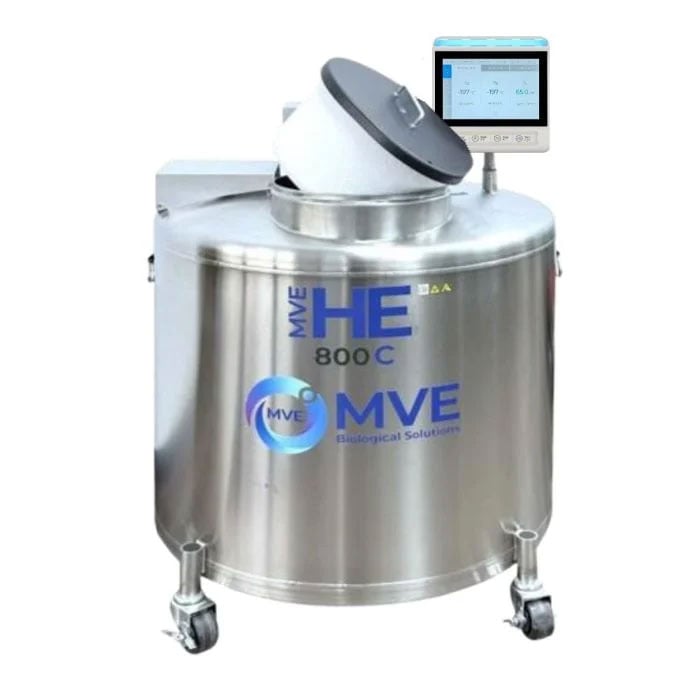

MVE HE 800 C AF-GB LN2 Freezer w/ CryoVerse™ Connect Controller, Full Auto Fill & Gas Bypass (Capacity: 5,680 x 2.0 ml vials)
Item#: 21839088The MVE HE Series sets the benchmark for cryogenic storage performance, now integrated with the new MVE CryoVerse™ Connect Controller. Combining industry leading LN₂ efficiency with intelligent, connected control, the HE Series delivers confidence, visibility, and security for the world’s most valuable biological materials. As the on-device command center of the CryoVerse™ platform, CryoVerse™ Connect Controller transforms the freezer into an intelligent system, providing real-time insights, traceability, and secure connectivity.
- Performance:
- Static NER: 5 L/day
- LN₂ Capacity – Liquid Full: 205 L
- LN₂ Capacity – Vapor Storage: 62 L
- Static Hold Time – Vapor: 11 days
- Static Hold Time – Liquid Full: 40 days
- Unit Dimensions:
- Neck Opening: 12.5”
- Usable Internal Height: 13”
- Inner Diameter: 28.81”
- Outside Diameter: 32"
- Overall Height: 44.56”
- Lift-over Height: 34.81”
- Internal Diameter (tray): 28.81
- Weight Empty: 330 lb (145 kg)
- Weight Liquid Full: 695 lb (310 kg)
- Vapor Storage: 440 lb (195 kg)
- Max. Storage Capacity:
- 1.2 & 2ml Vials: 77,000
- # of Racks for 100 Cell Boxes: 54
- # of Racks for 25 Cell Boxes: 30
- # of Stages per Rack: 15
- Storage Capacities:
- SUC-1 Canisters: 71
- 1.0 ml Vials: 9,798
- 1.2 ml Vials: 10,224
- 2.0 ml Vials: 5,680
- 1/2 cc Straws: 22,010
- Rack Layout: C-1 cane layout in SUC-1 box, 23 canes per box, 138 vials
- SGS listed (US & Canada)
- Equipped with the CryoVerse™ Connect Controller
- Vapor Phase Storage Holds 10,224 Vials in Boxes
- Space-Saving: Compact design ideal for constrained environments
- Applications: IVF Facilities, Clinical Laboratories, Research Institutions, Biopharma, Backup or Quarantine LN2 Freezer
- Operational Capacity: 7 XC 47/11 = 1 HE 800 C
- LN2 Efficiency: Consumes less LN2 than a wide-neck dewar or open-top freezer
- Enhanced Ergonomics: Reduced physical strain by eliminating reaching under shelfs or cabinets, virtually eliminating the need to bend over to lift cannisters. Retrive samples at counter-top height
- Reliable Preservation: Maintains premium thermal stability for sample integrity
- Energy-Efficient: Lower operation costs without compromising performance with controlled automated filling
- 5-Year Vacuum Warranty, 2-Year Parts Warranty
-
