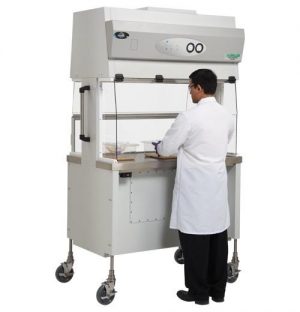

NuAire AllerGard NU-S620 Innovive Edition Animal Transfer Station

Item#: NU-S620

The AllerGard NU-S620 Innovive Edition Animal Transfer Station from NuAire offers ISO Class 4 sterility and protection for valuable research animals, minimizes personnel exposure to allergens and dander, and optimizes the work area for use with Innovive disposable IVC mouse and rat cage systems.

REQUEST A QUOTE
Supplier:
Tags: ,

NU-S620-400M Specifications:

  • Configuration- Mouse
  • Nominal Width- 4ft. (1.2m)
  • Electrical- 115 VAC / 60 Hz E: 230 VAC / 50-60 Hz
  • Exterior Dimensions- 48”W x 30”D x 80 ½”H (1219mm W x 762mm D x 2045mm H)
  • Internal Dimensions- 45 3/8”W x 28 ¼ ”D x 26” H (1083mm W x 718mm D x 659mm H)
  • Net Weight- 475lbs (215kg)
  • Work Surface Height- 32-44 inches (813-1118mm) Standard
  • Cabinet Height- 79 1/8-91 1/8 inches (2010-2315mm) Standard

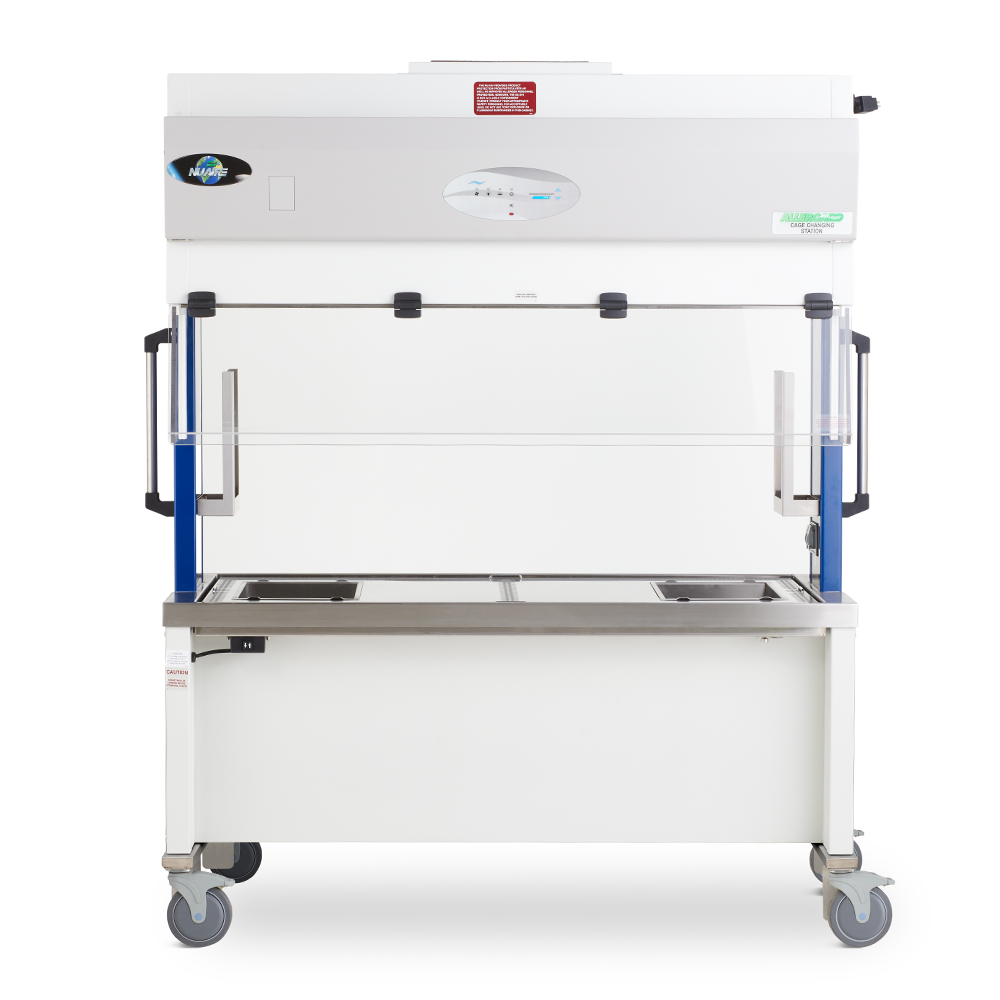

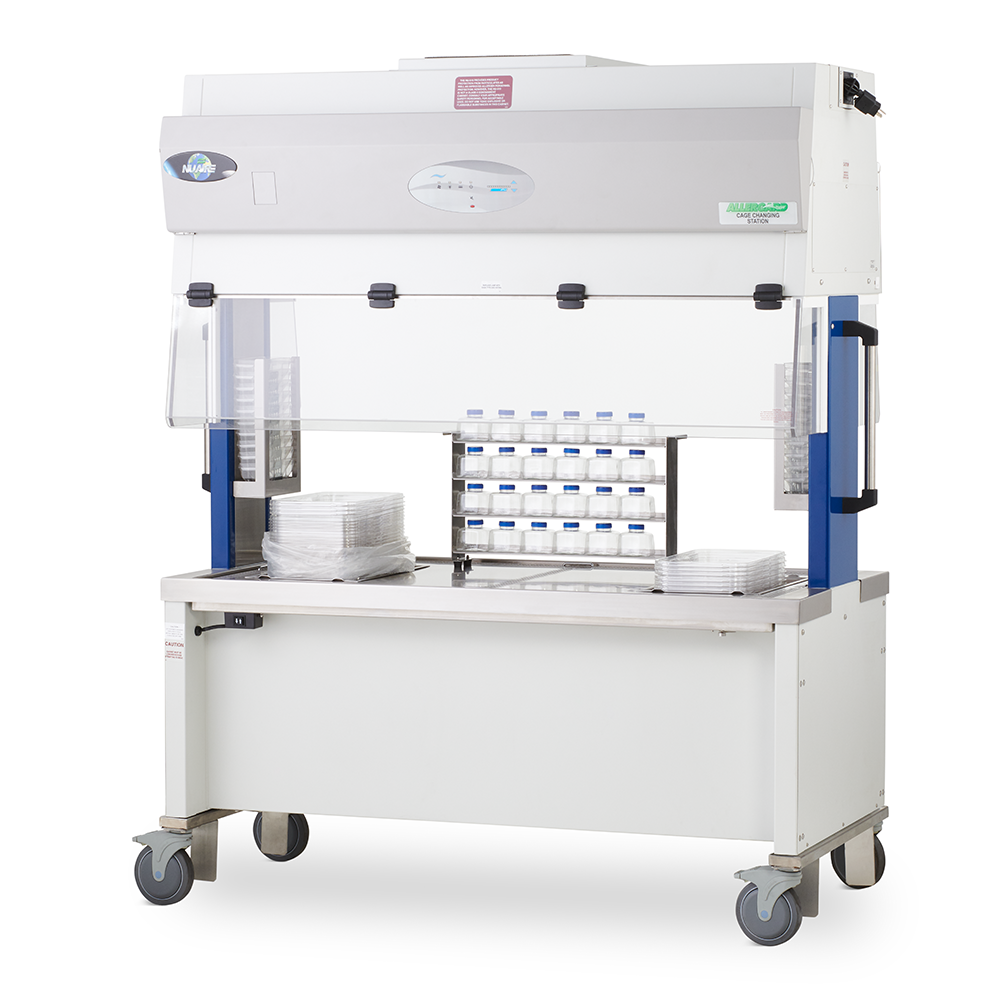

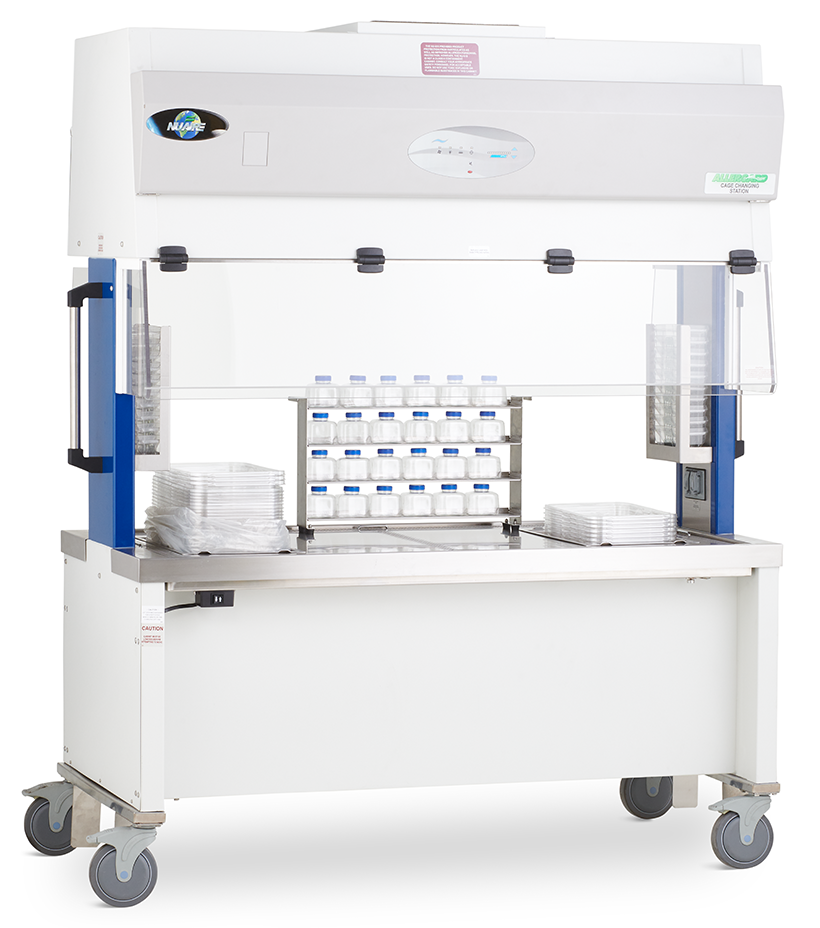

NU-S620-500M Specifications:

  • Configuration- Mouse/Rat
  • Nominal Width- 5ft. (1.5m)
  • Electrical- 115 VAC / 60 Hz E: 230 VAC / 50-60 Hz
  • Exterior Dimensions- 60”W x 30”D x 80 ½”H (1524mm W x 762mm D x 2045mm H)
  • Internal Dimensions- 54 3/8”W x 28 ¼ ”D x 26” H (1387mm W x 718mm D x 659mm H)
  • Net Weight- 548lbs (248kg)
  • Work Surface Height- 32-44 inches (813-1118mm) Standard
  • Cabinet Height- 79 1/8-91 1/8 inches (2010-2315mm) Standard

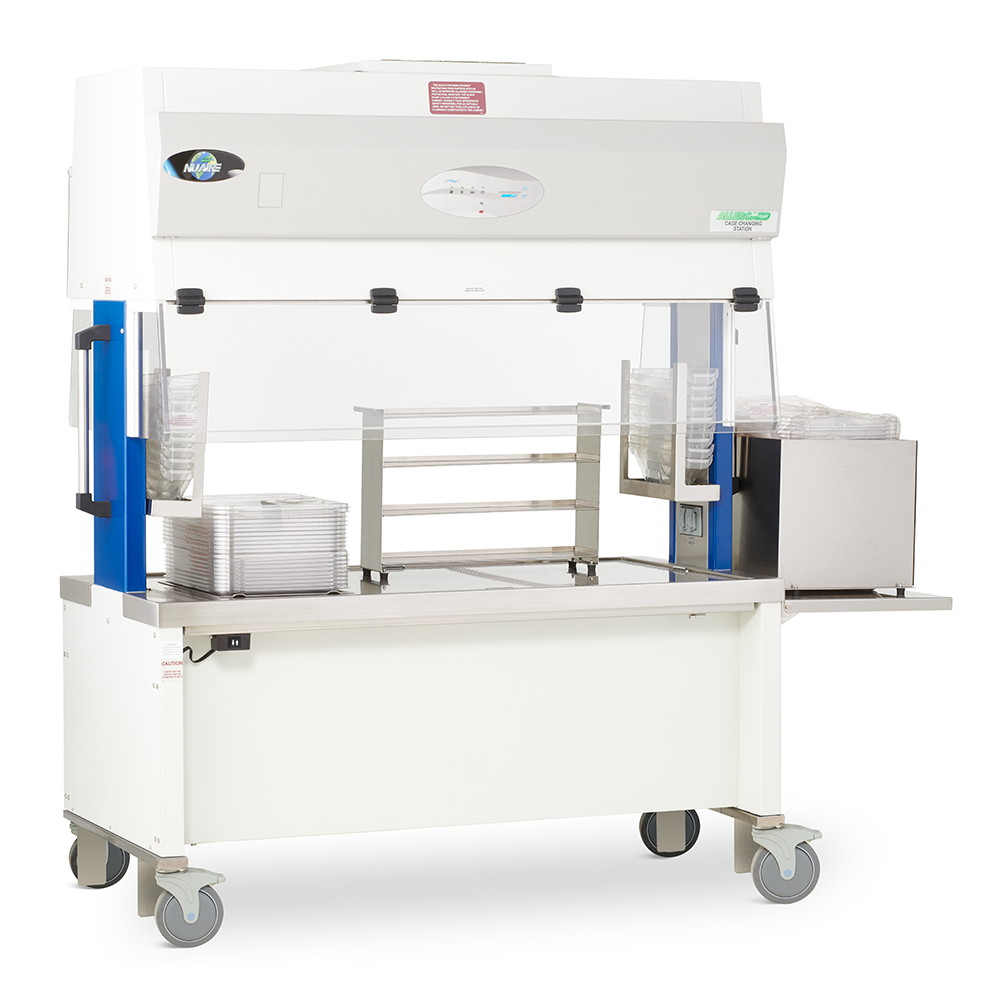

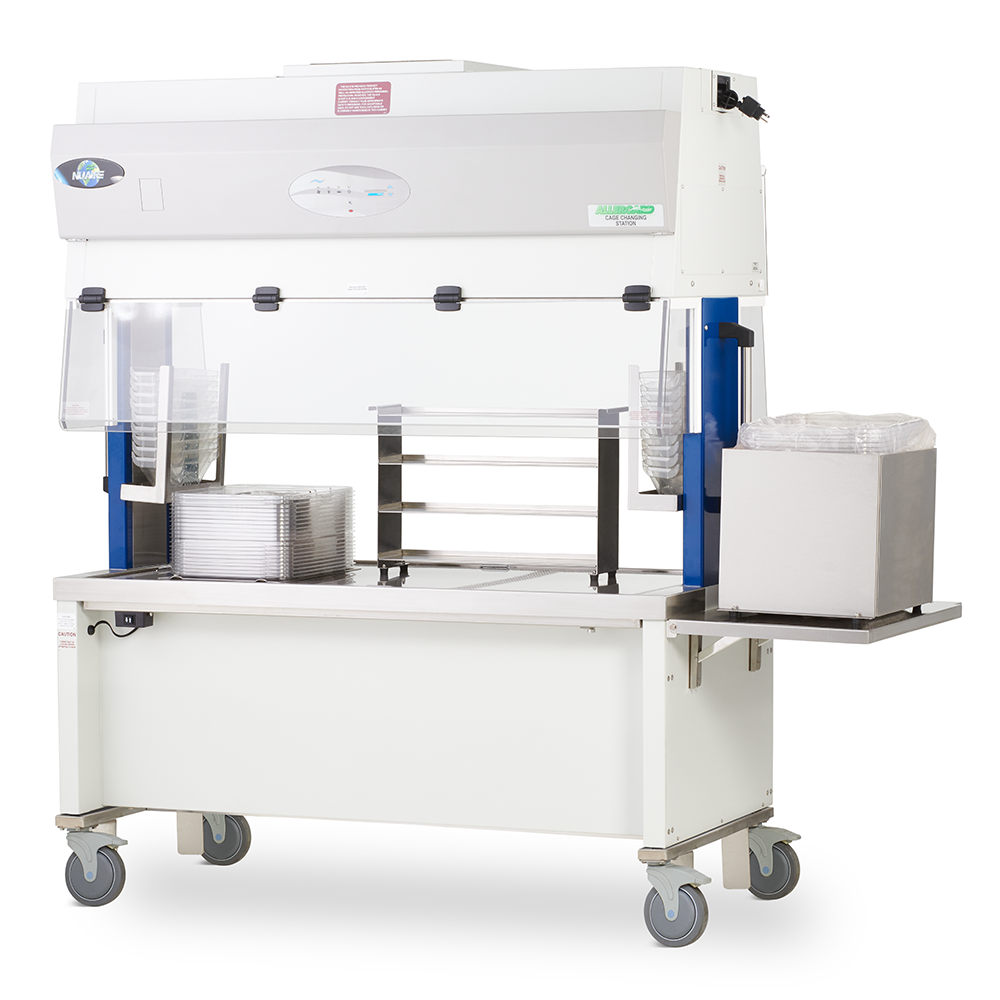

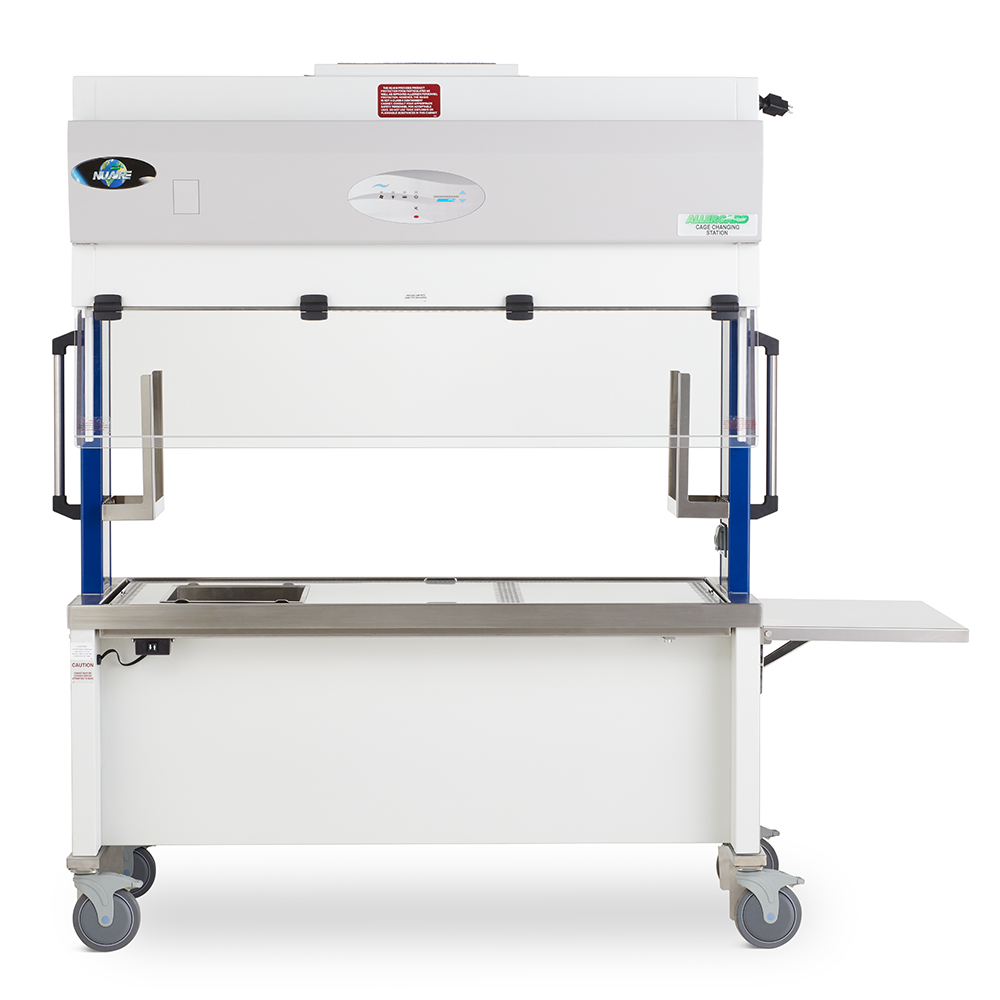

NU-S620-500R Specifications:

  • Configuration- Mouse/Rat
  • Nominal Width- 5ft. (1.5m)
  • Electrical- 115 VAC / 60 Hz E: 230 VAC / 50-60 Hz
  • Exterior Dimensions- 60”W x 30”D x 80 ½”H (1524mm W x 762mm D x 2045mm H)
  • Internal Dimensions- 54 3/8”W x 28 ¼ ”D x 26” H (1387mm W x 718mm D x 659mm H)
  • Net Weight- 548lbs (248kg)
  • Work Surface Height- 32-44 inches (813-1118mm) Standard
  • Cabinet Height- 79 1/8-91 1/8 inches (2010-2315mm) Standard
  • AeroMax Electronic Control System
  • Electronic Auto-lift
  • True Laminar Airflow
  • Push Pull Airflow Design
  • Reusable Pre-filter System
  • Easy Access Filter Panels
  • 14” (356 mm) Window Access Opening Height
  • (Two Sides)

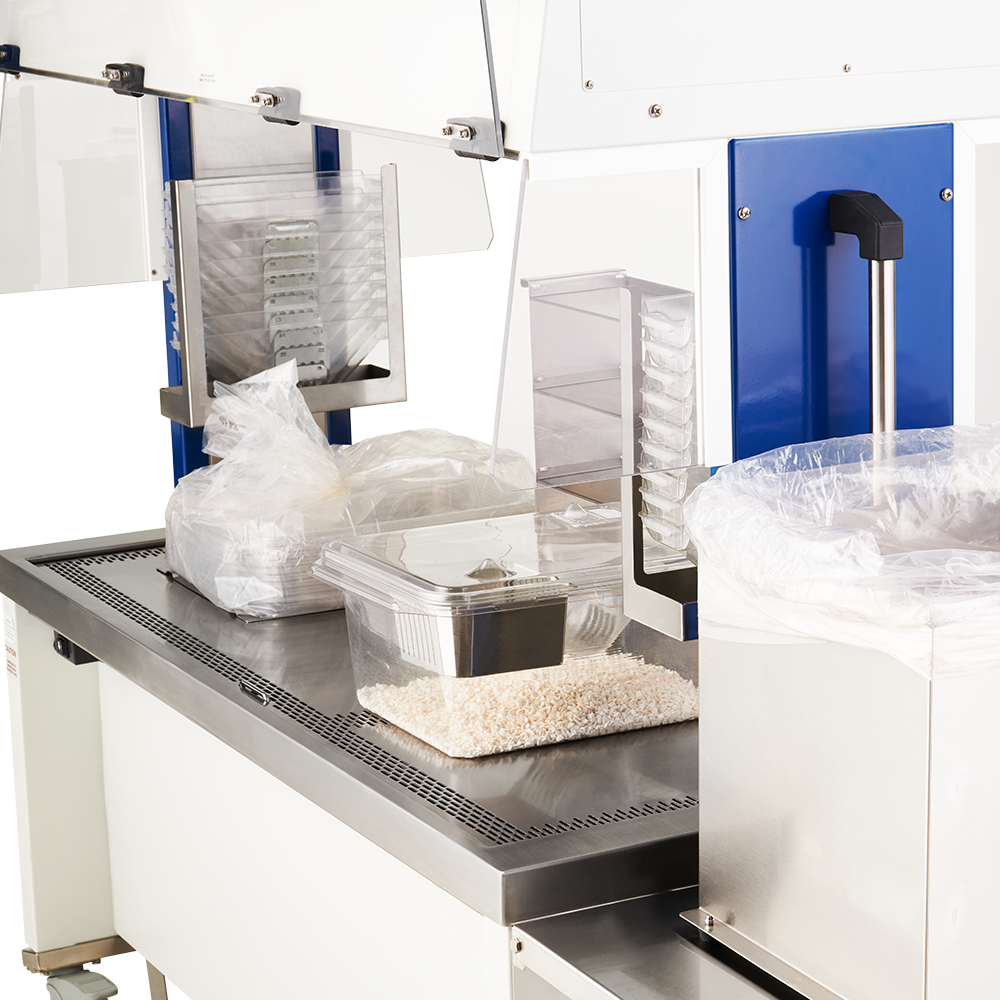

  • Stainless Steel Prop-up Work Surface

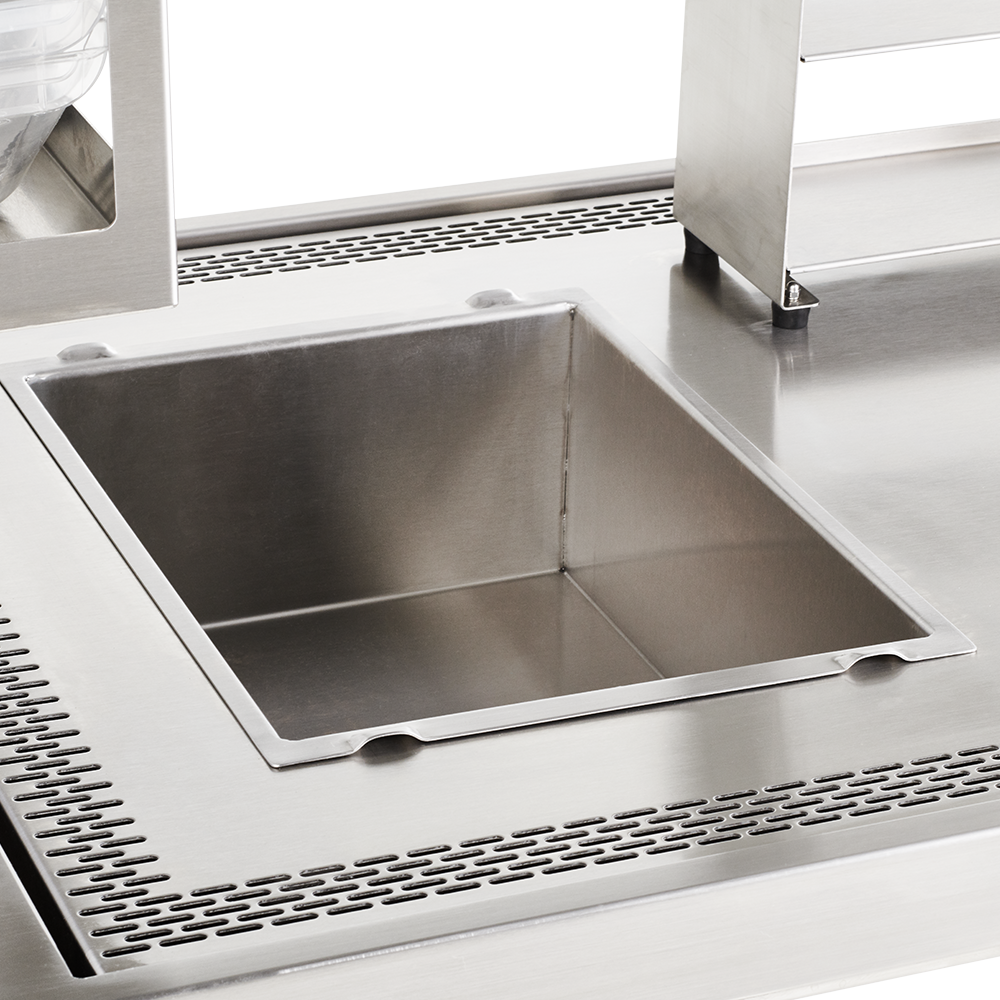

  • Animal Waste Chute
  • Heavy Duty Plate Castors with Brakes (4)
  • Accessory Outlet
  • LED Lighting
  • Hinged Scratch Resistant Windows (2)
  • Fixed Scratch Resistant Side Windows (2)
  • Stainless Steel Folding Shelf (Left or Right)
  • Magnifying Glass



Optional Features:

  • Cage Top Holding Rack
  • Stainless Steel Feed Hopper Left,
  • Right, or Dual Chute
  • One Sided Enclosure
  • Shelf Option for User Standing
  • AQUAVIVE® Mouse Water Bottle Holder
  • AQUAVIVE® Rat Water Bottle Holder
  • Free Standing Cage Top Holder
  • Disposable Pre-filters
  • Custom Solutions (Watering Systems,
  • Unit Depths/Widths, Additional Outlets, Etc.)

NuAire AllerGard NU-S620 Innovive Edition Animal Transfer Station Brochure

Download

NuAire Animal Laboratory Products

Download

Request a Proposal

Related Products

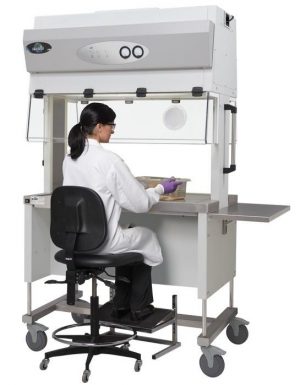

  • NuAire AllerGard ES 619 Dual Access Animal Transfer Station

    Item #: NU-619   VIEW PRODUCT

  • NuAire AllerGard NU-620 High Containment Animal Transfer Station

    Item #: NU-620   VIEW PRODUCT

  • NuAire AllerGard ES NU-621 Single Side Animal Transfer Station

    Item #: NU-621   VIEW PRODUCT

  • Animal Transfer and Transport Class III Biosafety Cabinet

    Item #: ANIMAL-CLASSIII   VIEW PRODUCT

  • NuAire LabGard ES 677 Class II Type A2 Animal Handling BSC/Cage Changing Station

    Item #: NU-677   VIEW PRODUCT

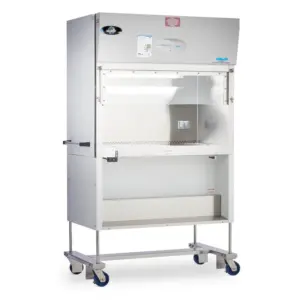

  • NuAire NU-640 Class II, Type A2 Animal Handling BioSafety Cabinet

    NuAire NU-640 Class II, Type A2 Animal Handling BioSafety Cabinet

    Item #: NU-640   VIEW PRODUCT

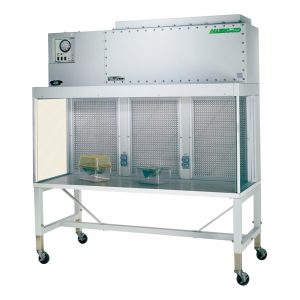

  • NuAire LabGard NU-603 Reverse Flow Workstation

    Item #: NU-603   VIEW PRODUCT

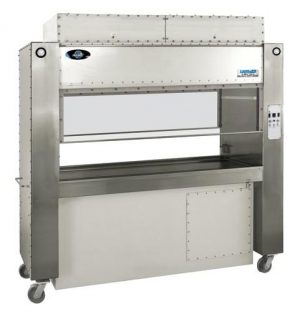

  • NuAire LabGard ES 610 Dual Access Class II Type A2 Animal Handling Safety Cabinet
