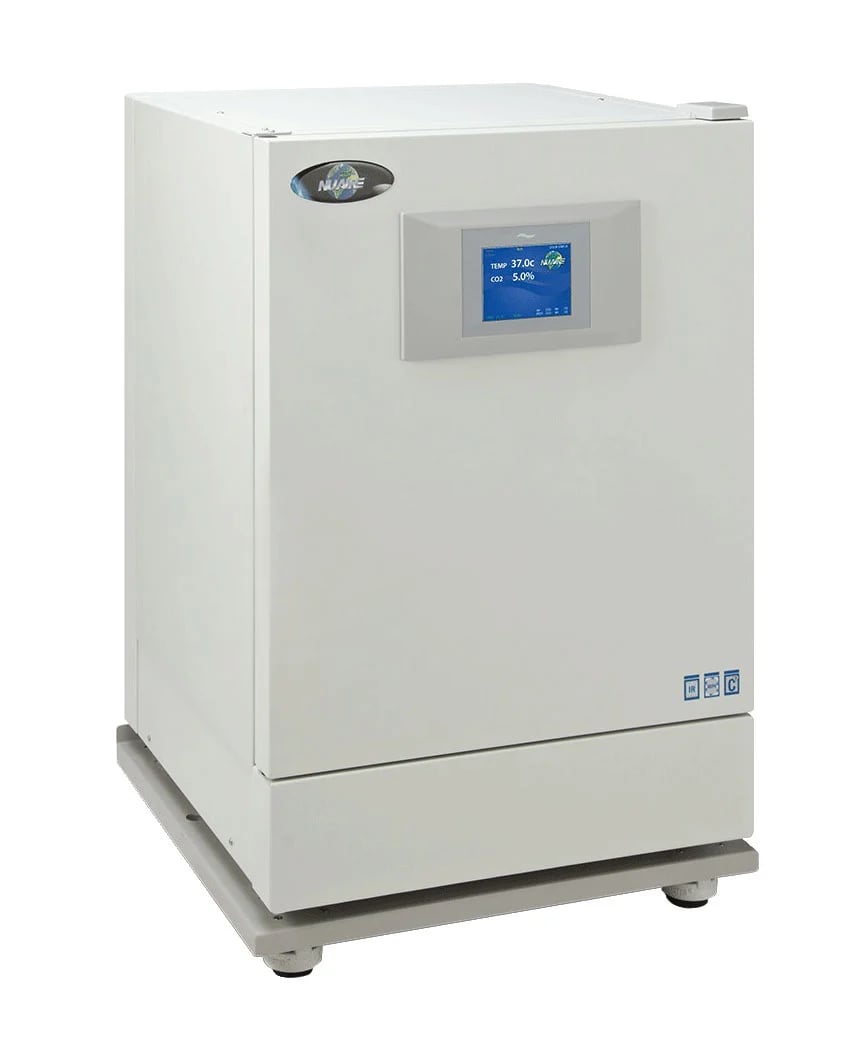

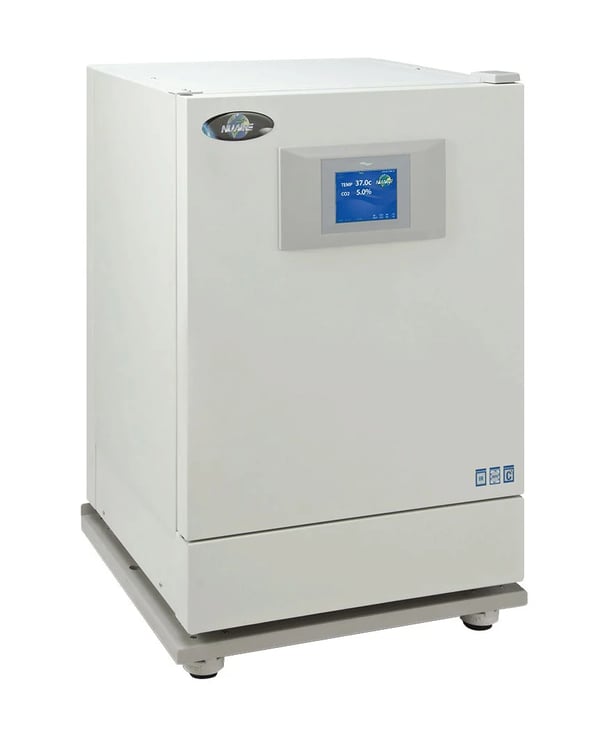

NuAire In-VitroCell ES NU-8631 5.65 cu. ft. (160L) Water Jacketed Hypoxic CO2 Incubator with O2 Cont | 5.65 cu. ft. (160L)

Item#: NU-8631
NuAire NU-8631 5.65 cu. ft. water jacketed hypoxic CO2 incubator is designed to provide precise environmental control for cell culture and hypoxia research applications in biotechnology, pharmaceutical, clinical, and academic laboratories. This In-VitroCell ES incubator uses a water jacket heating system surrounding the growth chamber to maintain highly stable temperature conditions while supporting controlled oxygen environments for advanced biological studies. The incubator maintains consistent temperature, humidity, CO2, and oxygen concentrations through infrared CO2 sensing, automated oxygen control with nitrogen injection, and microprocessor regulation to create reproducible low-oxygen culture conditions. Notable features include NuAire’s NuTouch electronic control system with touchscreen monitoring and USB data export, closed-loop HEPA filtration that maintains ISO Class 5 chamber air quality, and a polished stainless steel growth chamber designed for durability and easy cleaning. Key specifications include a temperature control range from 5°C to 55°C with ±0.2°C uniformity at 37°C, CO2 control from 0.1% to 20% with ±0.1% accuracy, oxygen control from 0.5% to 21% with ±0.25% accuracy, and a 5.65 cu. ft. (160 L) chamber with adjustable stainless steel shelving.
Request a Quote
  • Exterior Dimensions (W x D x H) 25.625” x 27” x 37.75”
  • Interior Dimensions (W x D x H) 20.375” x 20.625” x 24”
  • Foot Print (W x D): 22” x 17.5”
  • Chamber Volume: 5.65 ft3 (160 Liter)
  • Shelf Dimensions (W x D): 18” x 18.75”
  • Shelves Supplied (Standard) Quantity 4
  • Maximum Shelf Capacity: 16
  • Maximum Weight Capacity:
    • 25 lbs (11.34 kg) per shelf
    • 125 lbs (56.7 kg) per incubator
  • Water Pan Dimensions (W x D x H) 10" x 1.5" x 12"
  • Water Pan Capacity:
    • 2 Liters (Maximum)
    • 1.5 Liters (Recommended Fill)
  • Volume  5.65 ft3 (160 L)
  • Net Weight (Including Water and Shelving): 403 lbs
  • Electrical Requirements: 115V, 50/60Hz
  • Quality Assurance: UL, UL-C, CE
Temperature Control:
  • Control Range: 5°C above ambient (to a 30°C max ambient) to 55°C
  • Set-Point Range: 5°C to 55°C (37.0 Default)
  • Uniformity: ±0.2°C @ 37°C
  • Accuracy: ± 0.1°C
  • Recovery: 0.12°C/min. on Average
  • Display Resolution: 0.1°C
  • Door and Perimeter Heater Control Logic: Proportional base duty cycle based on Temperature set point and 0-100% manually adjustable to adapt to ambient conditions.
  • Temperature Sensor Type: Precision Integrated Circuit
  • 16-Gauge Type 304 Polished Stainless Steel Growth Chamber
  • 16-Gauge Type 304 Polished Stainless Steel Shelving (Qty 4)
  • NuTouch Electronic Control System (ECS)
  • Closed Loop HEPA Filtration System
  • Infrared (IR) Sensor
  • O2 Monitor and Control System
  • R5 Insulation System
  • Independent Door Heater
  • Right Hinge Swing Field Reversible Exterior Door

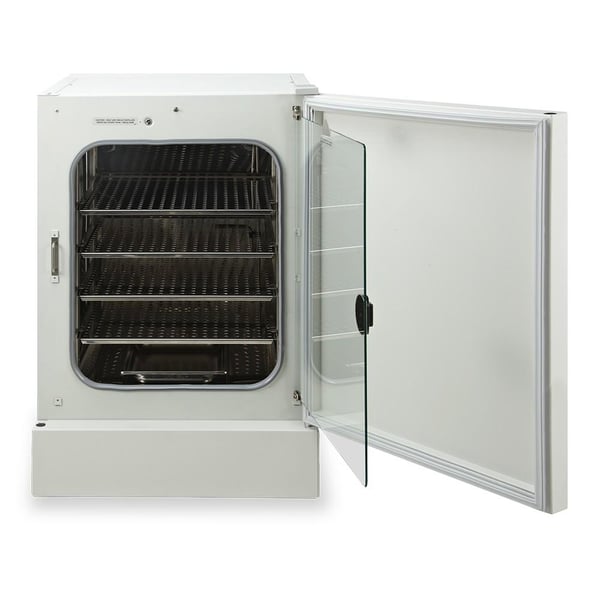

  • Right Hinge Swing Field Reversible Inner Glass Door
  • Removable/Autoclavable Inner Door Gasket
  • Water Fill Port
  • Drain Valve
  • Quantity Four (4) Shelves
  • Quantity Four (4) Wall Brackets
  • Quantity Eight (8) Shelf Guides
  • Heavy Duty Leg Levelers
  • USB Port
  • RJ-11 Communication Port for Remote Alarm Connection
  • RJ-45 Jack - RS-485 2-way Communication
    • Output: Control system levels and alarms/events
    • Input: Commands from a Computer to view and update operating parameters
  • RJ-45 Jack - 4-20 mA Analog Output for monitoring all active control system levels
  • Utility Access Port
  • Stainless Steel Water Pan
  • 8-foot (2.5m) electrical power cord

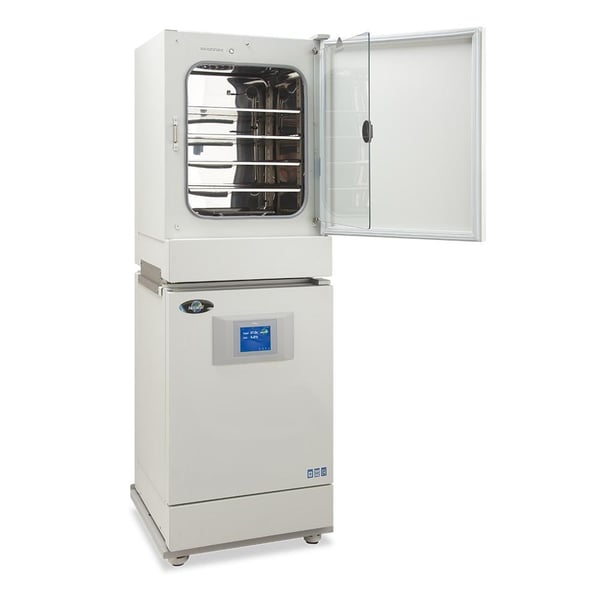

  • Field Stackable with Appropriate NuAire Incubator Models
CO2 Control Standard:
  • Range: 0.1 to 20% (default 5%). (0.0 set point idles system)
  • Accuracy: ±0.1%
  • CO2 Recovery: Up to 5% ±0.2% / -0.5 in 5 minutes Average
  • CO2 Display Resolution: 0.1%
  • CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
  • CO2 Sensor Type: Infrared single source dual wave length
Oxygen Display and Control:
  • Control Range: 0 to 25%
  • O2 Set-Point Range 0.5 to 21%
  • Default Set Point 21%
  • O2 Accuracy: ±0.25%
  • O2 Recovery: 5% ±2%: 15 minutes on average
