- Efficiency Features:
• Single Ultra High Efficiency DC/ECM Motor
• Auto Filter Loading Compensation
• Motor Speed Controller
• nitecare Night Setback - Superior Construction Features:
• Monolithic 16/18 Gauge, Type 304 Stainless Steel Welded
• Pressure Tight Construction (Silicone Free)
• Removable Control Center
• Removable Stainless Steel Coved Work Tray
• Recessed and Removable Front Intake Grill
• Stainless Steel Spill Trough with Drain Valve
• Vibration Reducing Work Surface Support System
• External Non-Glare 110 lm/ft2 LED Lighting - Safety Features:
• 3” (76 mm) Supply UL 586 HEPA Filter, 99.99 @ 0.3 Micron Efficiency Rating
• 12” (305 mm) Exhaust UL 586 HEPA filter, 99.99 @ 0.3 Microns Efficiency Rating
• Airflow probe, pressure grid airflow monitoring
• Airflow / Window Alarms with Ring Back Function
• Security Password Protection
• HEPEX Zero Leak Airflow System
• NSF/ANSI 49, UL Listed
• UL 1805

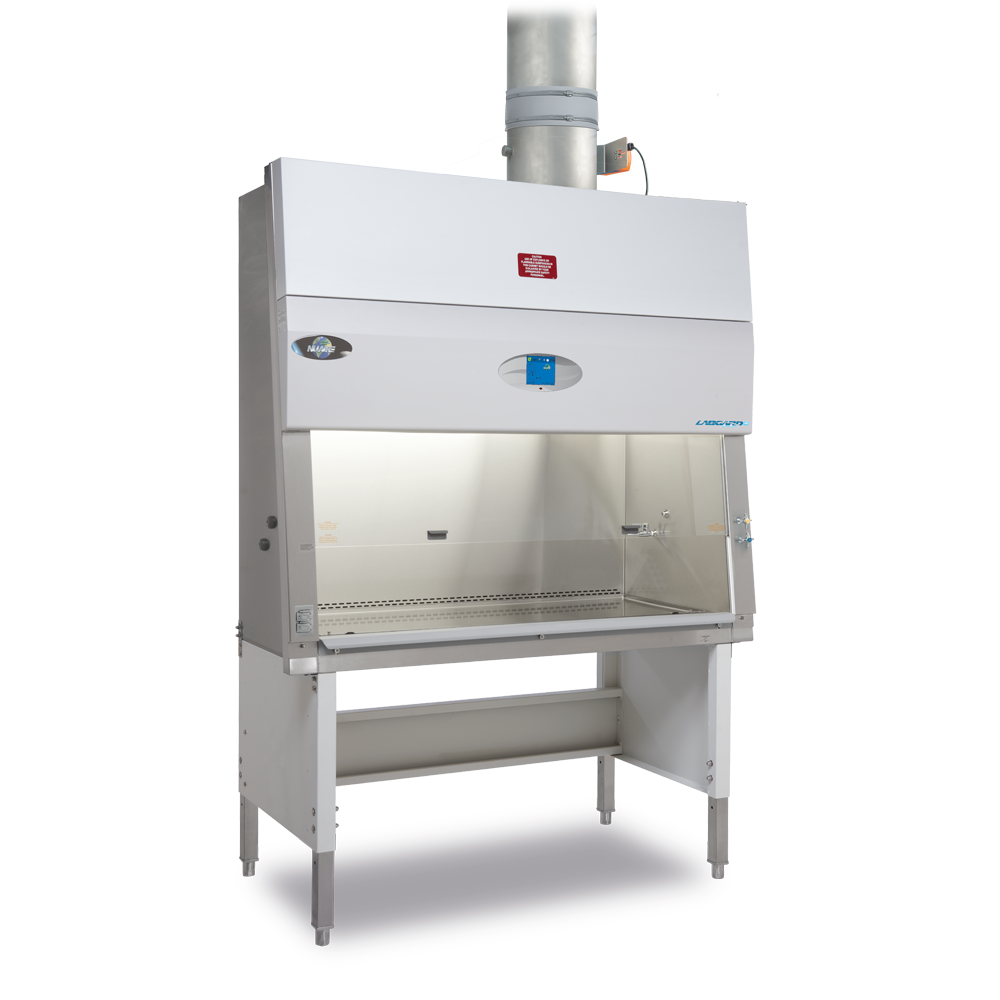

NuAire LabGard NU-565 Class II, Type B2 BioSafety Cabinet Fume Hood
Item#: NU-565The LabGard® ES (Energy Saver) TE (Total Exhaust) model NU-565 Laminar Flow Biosafety Fume Hood/Cabinet is a bench/table top model, optionally available with a base support stand, for operation as a console model. Model NU-565 utilizes an Energy Saver DC ECM motor optimally determined forward curved fan for each model size/width to maximize both energy efficiency and filter loading capacity. The Energy Saver ECM motor is controlled to airflow setpoints via a solid-state DC motor controller with digital dual thermistor airflow sensors that provide an automatic compensation (constant volume control) for both filter loading and line voltage variances.
