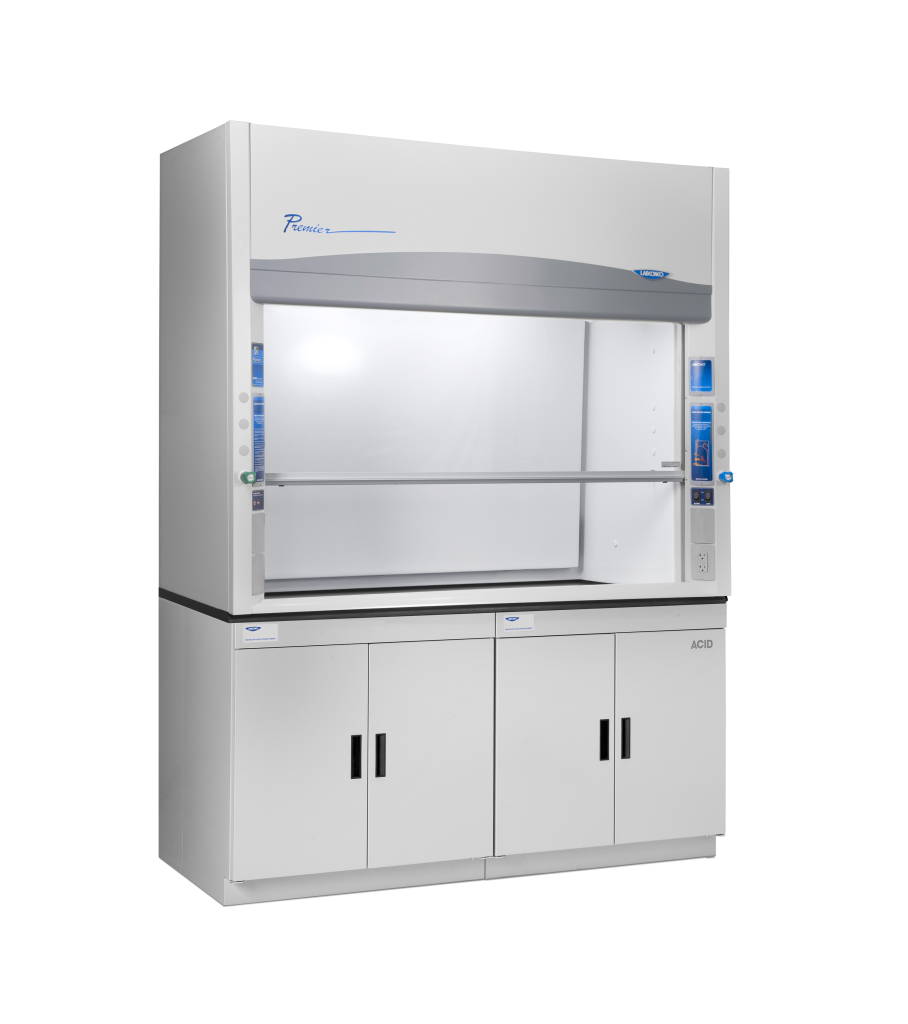

Labconco Protector Premier I-S Laboratory Fume Hoods

Item#: PROTECTOR-PREMIERl-S

Protector Premier I-S Laboratory fume hoods incorporate a sleek interior with a molded one-piece fiberglass liner, the signature feature of Labconco’s leading line of fume hoods since 1961. The one-piece liner of specially-formulated, fiberglass-reinforced polyester offers corrosion and fire resistance and easy clean up. Without seams, the interior has fewer points of deterioration for longer life.

Designed for use with Intelli-Sense Multi-Speed Blowers, Protector Premier I-S Hoods feature integrated sash position blower controls. As the sash is raised or lowered, sensors alert the blower to change speeds to maintain a safe face velocity. That face velocity is displayed on the factory-installed Guardian™ Digital Airflow Monitor for users’ peace of mind.

These hoods are suitable for providing personal protection needed for general chemistry applications involving fumes and vapors. They meet the SEFA-1 standard of a low velocity, high performance hood and may be safely operated as low as 60 fpm.

Request a Quote

Supplier: Labconco

Exceed SEFA 1 standards for high performance fume hood
By-pass design with upper by-pass block to reduce airflow (CFM)
Exclusive Air Foil®
- With maximum containment airflow openings
- Cord-keeping slots on either side for safety
Pre-wired LED lighting
- Rated for up to 50,000 hours
- Vapor-proof design
- ADA-compliant light and blower switches
Baffle(s) with flame spread index less than 25 per ASTM E84
Built-in Digital Guardian Airflow monitor for safe operation
Tempered safety glass sash
- With chain and sprocket
- Vertical-rising design
- Powder-coated aluminum handles have maximum containment airflow openings
37.5" high sightline from work surface to header panel
12.8" ID exhaust connection(s)
Removable front and side panels
Glacier white powder-coated steel exterior
One-piece molded fiberglass liner and exhaust connections
Baffles remove for easy cleaning

4 ft. Hood Airflow and Static Pressure

Blower Speed	Sash (inches)	Face Velocity (fpm)	Airflow Volume (CFM)	Premier SP (in. of H2O)
LOW	0”-4”	190	200	0.02
MEDIUM	4”-18”	100	440	0.08
HIGH	18”-28”	100	705	0.21
LOW	0”-4”	190	200	0.02
MEDIUM	4”-18”	80	350	0.05
HIGH	18”-28”	80	565	0.14
LOW	0”-4”	190	200	0.02
MEDIUM	4”-18”	60	265	0.03
HIGH	18”-28”	60	425	0.08

5 ft. Hood Airflow and Static Pressure

Blower Speed	Sash (inches)	Face Velocity (fpm)	Airflow Volume (CFM)	Premier SP (in. of H2O)
LOW	0”-4”	190	260	0.03
MEDIUM	4”-18”	100	580	0.11
HIGH	18”-28”	100	930	0.30
LOW	0”-4”	190	260	0.03
MEDIUM	4”-18”	80	465	0.07
HIGH	18”-28”	80	745	0.19
LOW	0”-4”	190	260	0.03
MEDIUM	4”-18”	60	350	0.04
HIGH	18”-28”	60	560	0.11

6 ft. Hood Airflow and Static Pressure

Blower Speed	Sash (inches)	Face Velocity (fpm)	Airflow Volume (CFM)	Premier SP (in. of H2O)
LOW	0”-4”	190	320	0.04
MEDIUM	4”-18”	100	720	0.15
HIGH	18”-28”	100	1150	0.39
LOW	0”-4”	190	320	0.04
MEDIUM	4”-18”	80	575	0.09
HIGH	18”-28”	80	920	0.25
LOW	0”-4”	190	320	0.04
MEDIUM	4”-18”	60	430	0.05
HIGH	18”-28”	60	690	0.14

8 ft. Hood Airflow and Static Pressure

Blower Speed	Sash (inches)	Face Velocity (fpm)	Airflow Volume (CFM)	Premier SP (in. of H2O)
LOW	0”-4”	190	440	0.02
MEDIUM	4”-18”	100	1000	0.10
HIGH	18”-28”	80	1280	0.17
LOW	0”-4”	190	440	0.02
MEDIUM	4”-18”	80	800	0.06
HIGH	18”-28”	80	1280	0.17
LOW	0”-4”	190	440	0.02
MEDIUM	4”-18”	60	600	0.04
HIGH	18”-28”	60	960	0.09

By-pass airflow design
Eco-Foil™ Air Foil with aerodynamic Clean-Sweep™ airflow openings
Cord-Keeper™ Slots on left and right side of air foil
Factory-installed Intelli-Sense Blower control box
Factory-installed sash position activated blower speed switches
Factory-installed Guardian™ Digital Airflow Monitor
Glacier white powder-coated steel exterior
One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E-84
Tempered safety glass vertical-rising sash with powder-coated sash handle
37.5" (95.3 cm) high sightline from the work surface to header panel
Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours.
Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
Molded fiberglass 12.81" ID exhaust connection(s)

Fixtured Models May Feature

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided.
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Required Accessories (Not Included)
