- External Dimentions: 18.2" W x 22.9" D x 68.3" H (470 x 580 x 1735 mm)
- Internal Dimensions: 14.9" W x 18.75" D x 52.4" H (388 x 477 x 1333 mm)
- Effective Capacity: 7.6 cu.ft. (218 L)
- Insulation PUF (CFC/HFC Free)

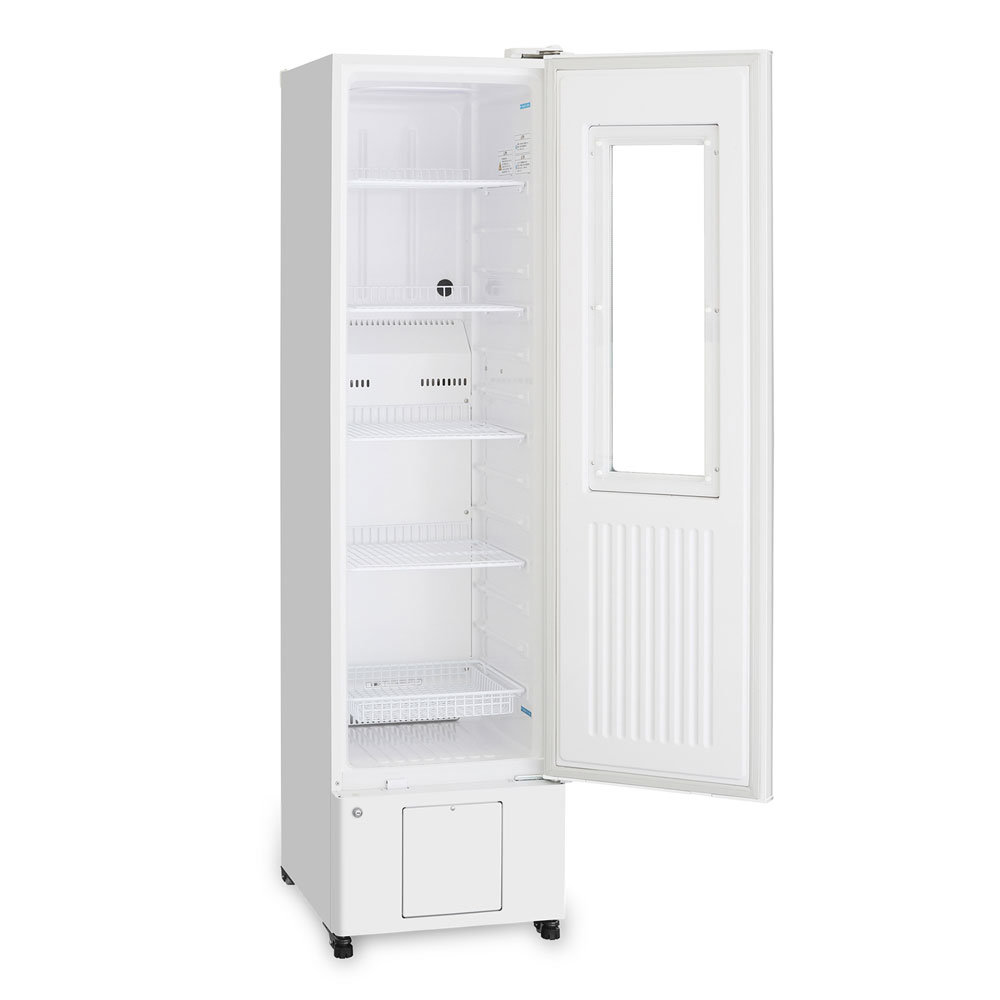

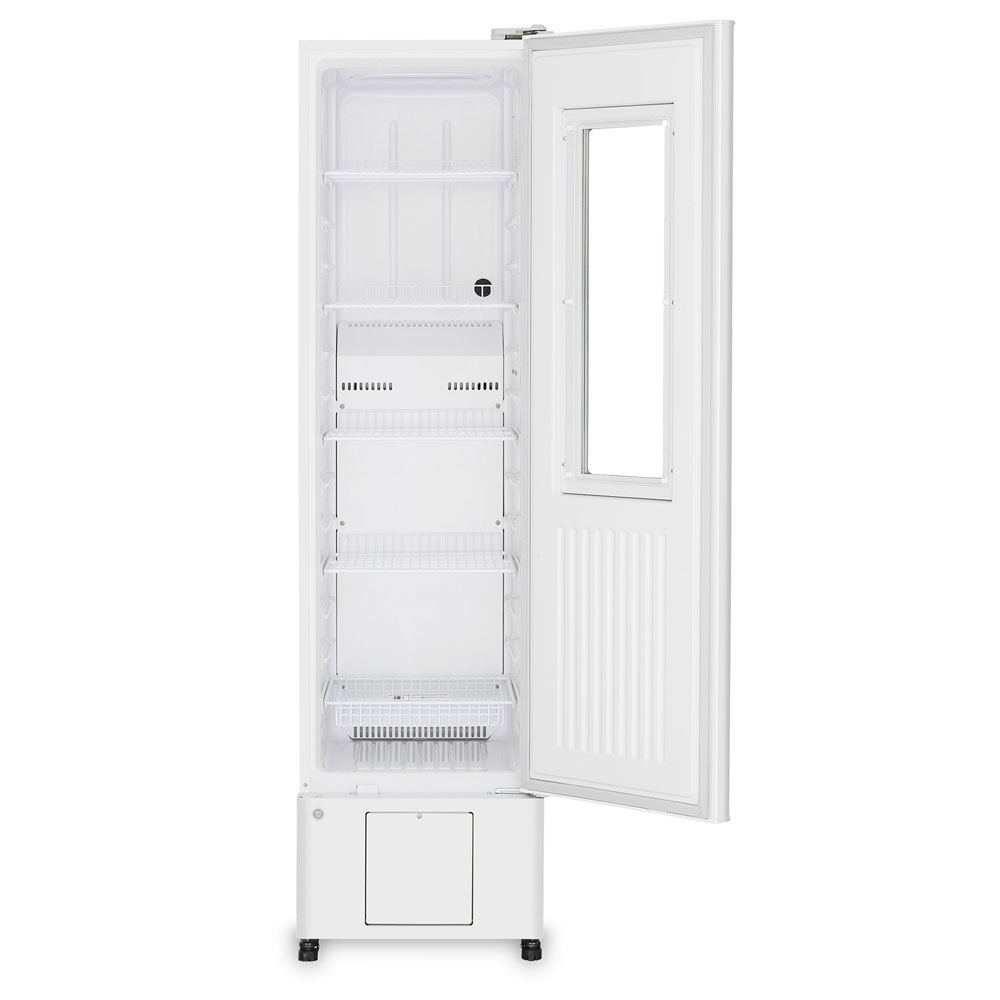

- Shelves: 4 Upper, 1 Lower (allowable load 44 lbs. (20 kg)/shelf; inner dimensions upper W x D: 12.8" x 13.3" (326 x 339 mm), inner dimensions lower W x D: 11.8" x 11.8" (300 x 300 mm))
- Access Port: (1) Middle Right Back side above evaporator (1.2" (30 mm) diameter)
- Refrigerant: SNAP Approved R-600A
- Temperature Control Range: +2ºC to +14ºC
- Alarms: High temperature, low temperature, air circulation, door, power failure
- Net Weight: 141 lbs (64 kg)
- Data Management: Optional with LabAlert Monitoring System (must be purchased separately)
- Sound level: 40 dB(A)

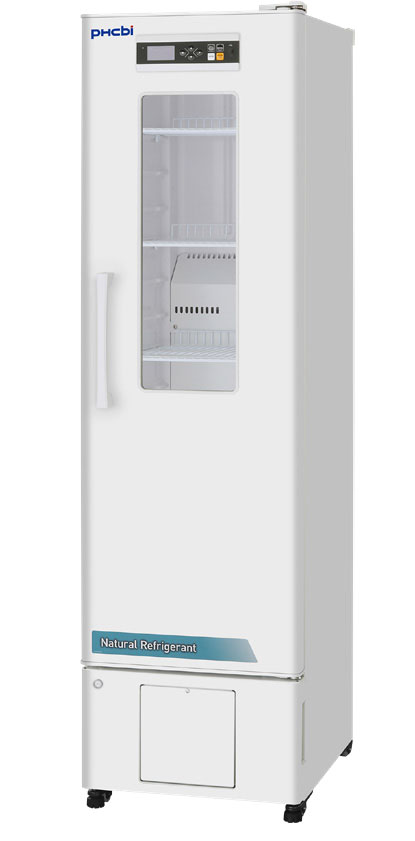

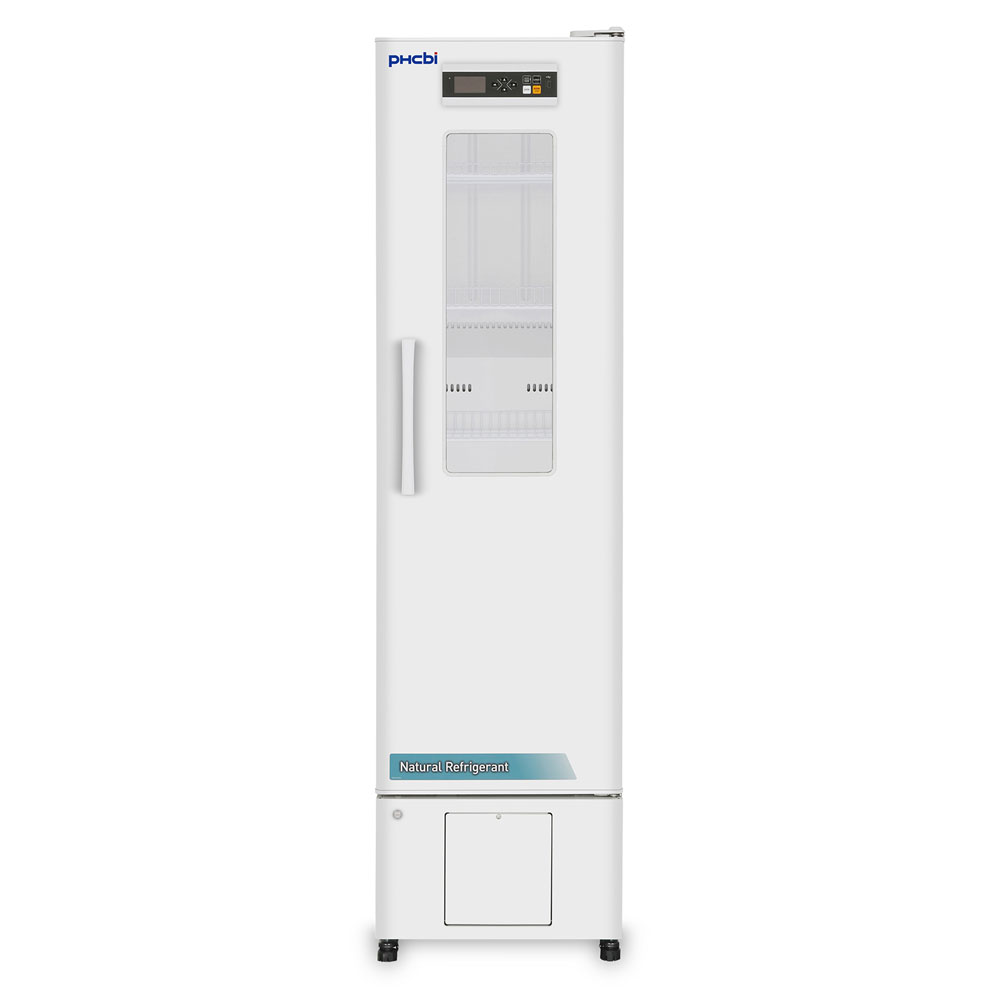

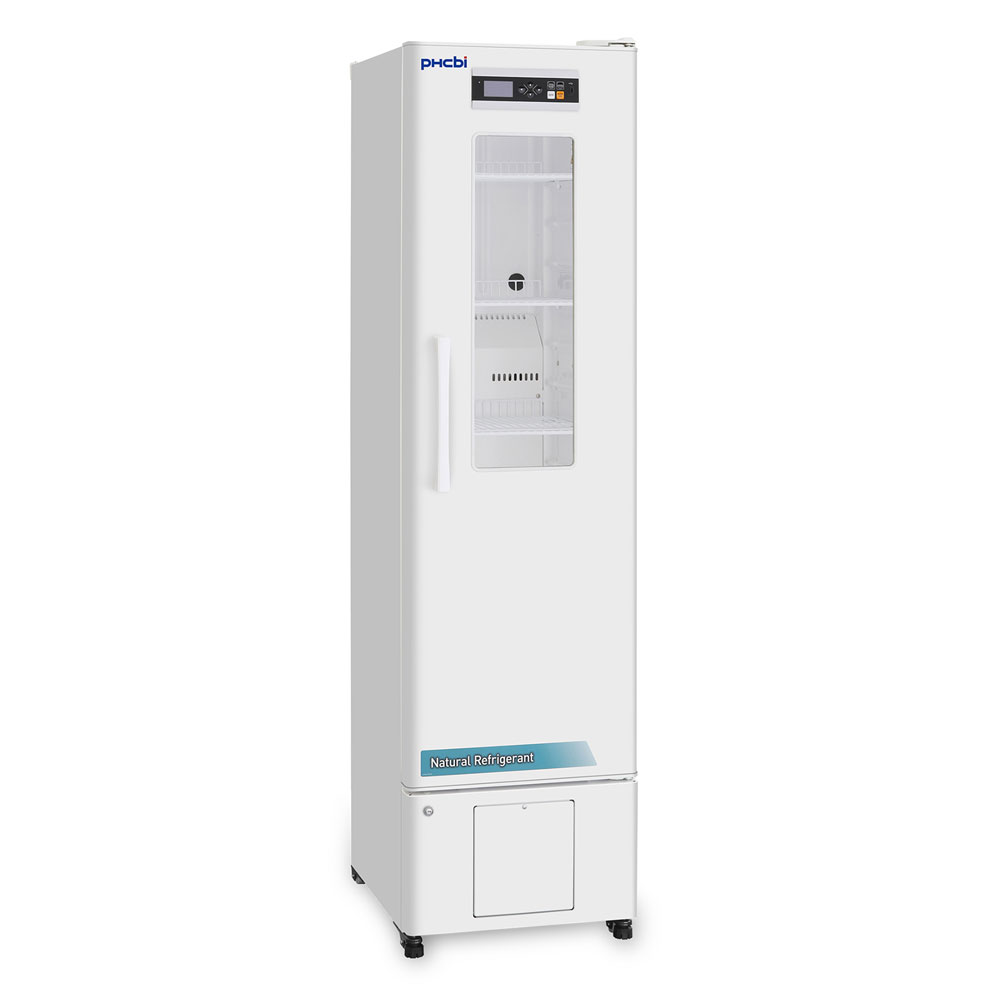

PHCbi MPR Series 7.6 Cu. Ft. Medical-Grade Refrigerator | Glass DoorItem#: MPR-N200H-PA
The MPR-N200H-PA 7.6 cu ft Medical-Grade Refrigerator from PHCbi brand offers a purpose-built, space-saving design engineered to meet prevailing vaccine guidelines. This high-performance pharmaceutical refrigerator offers energy-saving technology with the proprietary inverter compressor algorithm (ICA). The MPR-N200H-PA 7.6 cu ft Medical-Grade Refrigerator features a robust, synchronous refrigeration system to deliver precise temperature control and uniformity for biologics, vaccine, and reagent storage. This unit is build with a microprocessor controller with OLED display providing convenient and secure user management with temperature reading and a password protected alarm system.
REQUEST A QUOTE
Purpose-Built Cold Chain Storage: PHCbi brand pharmaceutical refrigerator units are engineered from the inside out to create, maintain, and restore precise temperatures necessary for vaccine storage. Designed specifically for storage not only of vaccines but also other pharmaceuticals, our purpose-built refrigerator units are designed for temperature uniformity and stability that is not commonly found in household or commercial cabinets. PHCbi brand vaccine cold chain storage solutions satisfy current and evolving storage protocols essential for continued vaccine efficacy.
Space-Saving, Versatile Design: The MPR-N200H-PA Pharmaceutical Refrigerator offers a space-saving design engineered to meet prevailing vaccine guidelines. This slim design fits in the smallest of footprints available in your workspace which permits easy installation in narrow aisles and hallways for greater flexibility. The slim profile cabinet is designed with a triple-paned viewing window. Optional blackout panel is available to protect light-sensitive products.
Excellent Uniformity: The refrigerator provides excellent uniformity throughout the cabinet. Temperatures remain stable wherever products are stored, even in a loaded chamber. The refrigerator is engineered to prohibit inadvertent freezing of temperature sensitive vaccines.
Natural Refrigerants: Hydrocarbon refrigerants help achieve facility sustainability objectives by minimizing any environmental impact without compromising cooling performance, ambient tolerance and recovery speeds following door openings. The use of refrigerants compliant with SNAP (Significant New Alternatives Policy), established by the United States Environmental Protection Agency, underscores our recognition of social responsibility and environmental sustainability by integrating the latest refrigeration technology. For more information on SNAP refrigerants, visit https://www.epa.gov/snap.
Energy Saving Inverter Compressor Algorithm: The PHCbi brand proprietary inverter compressor algorithm [ICA] modulates the compressor motor speed according to temperature need. Unlike standard on/off compressors, combined with energy-saving and environmentally friendly natural refrigerants the MPR-N200H-PA produces less heat, lower noise, and lower energy consumption.

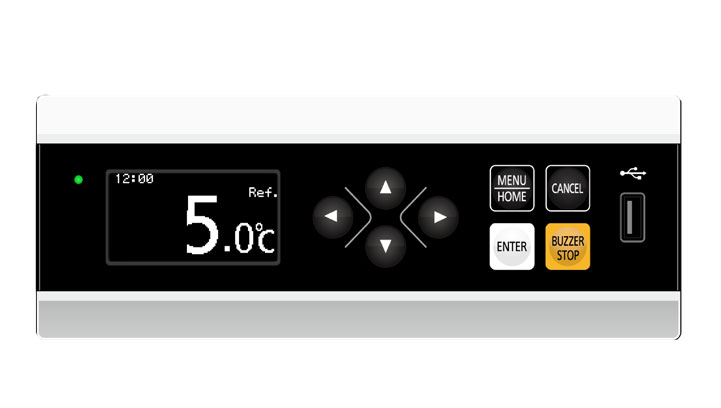

Microprocessor Controls, OLED Display: The microprocessor controller and softkey interface are door mounted at eye level. An OLED alphanumeric display provides convenient, secure user management. Temperature readings can be displayed in single digits or 0.1 increments. Minimum/maximum temperatures can be easily viewed. All alarm conditions are displayed and recorded. Data transfer is available through a USB port.
Password Protected Alarm System: Adjustable audible and visual alarms are standard, along with integrated system diagnostics and predictive performance supervision. The password protected control panel provides data archiving with minimum / maximum temperature readings, supporting CDC clinical recording recommendations, and reduces the risk of accidental change in set point.
