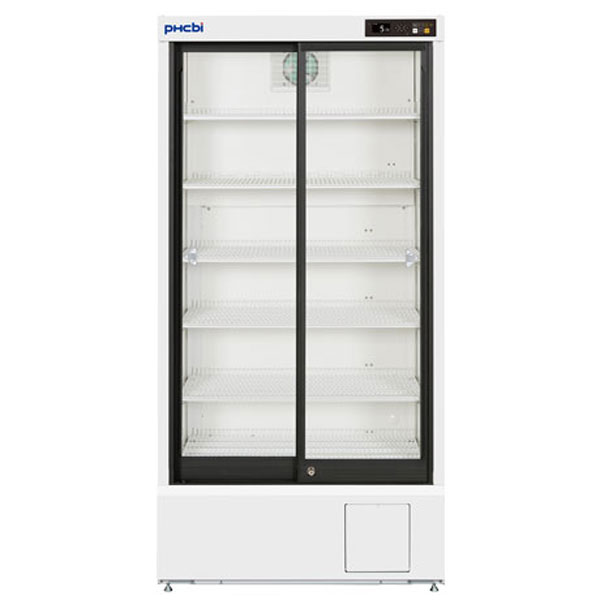

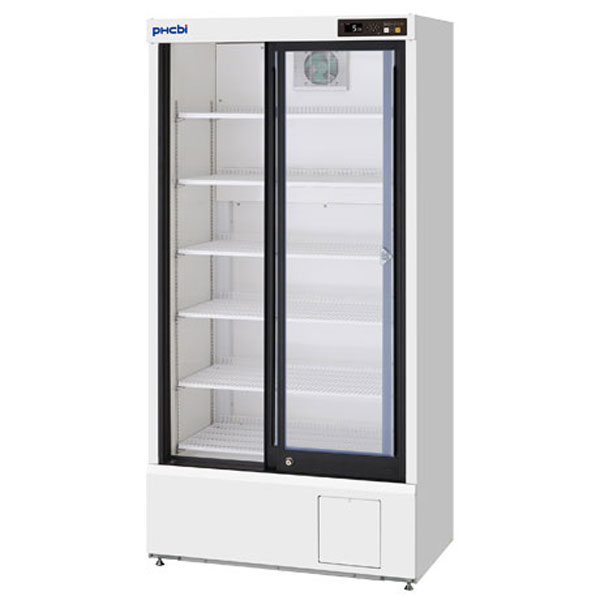

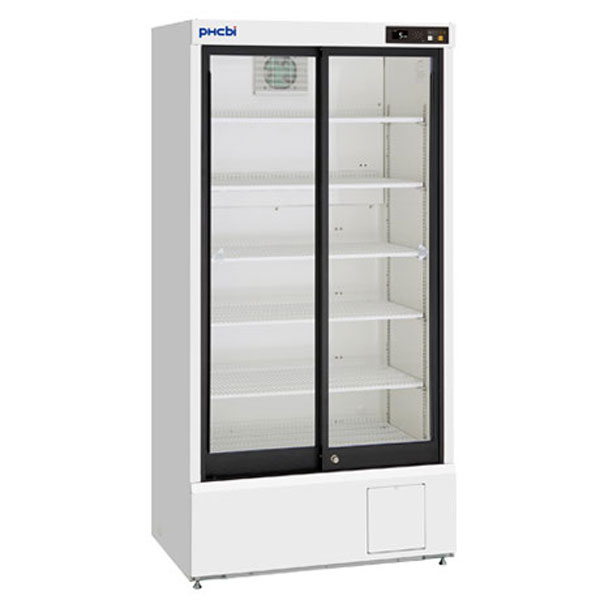

PHCbi MPR Series 19.5 Cu. Ft. ECO Pharmaceutical Refrigerators | Sliding Glass Doors
Item#: MPR-S500H-PAThe PHCbi MPR medical refrigerators offer a complete solution for the most demanding requirements for storage of pharmaceuticals, medicines, vaccines, and other temperature-sensitive applications.
$9,056.00 $5,976.96

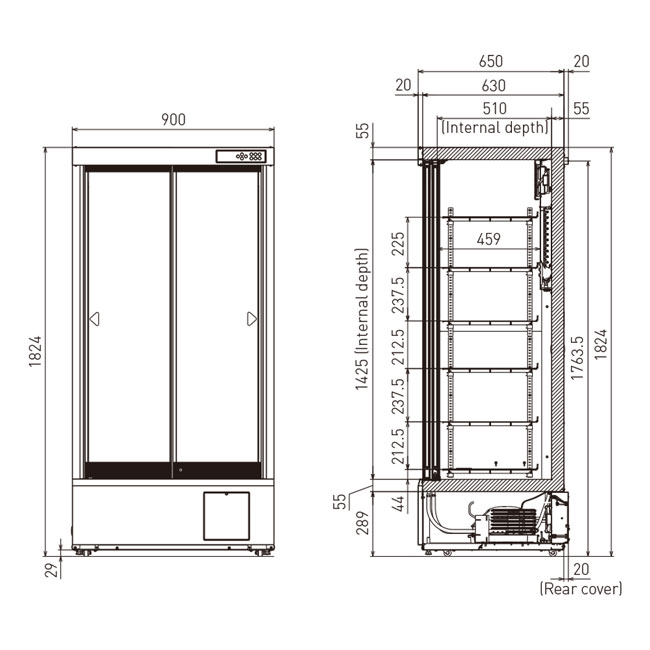

- External Dimensions: 35.43" W x 25.6" D x 71.81" H (900 x 650 x 1824 mm)
- Internal Dimensions: 31.5" W x 20" D x 56.1" H (800 x 510 x 1425 mm)
- Effective Capacity: 19.56 cu.ft. (554 L)
- Net Weight: 308.65 lbs (140 kg)
- Temperature Setting Range: +2 to +14 °C
- Temperature Control Range: +2 to +14 °C
- Controller: Microprocessor
- Display: Digital (White graphic OLED), 1°C (increment of 0.1)
- Temperature Sensor: Thermistor
- Cooling Method: Forced air circulation
- Defrost Method: Cyclical defrost (plus forced defrost)
- Refrigerant: R-600a
- Insulation Material: PUF (Rigid polyurethane foamed insulation)
- Exterior Material: Painted steel
- Interior Material: Painted steel
- Outer Doors: 2 (Highly insulated double glass door with tempered glass)
- Outer Door Lock: Yes
- Shelves: 6 coated steel wires
- Drawers: N/A
- Load - Per Shelf/Drawer: 50 kg
- Load – Total: 300 kg
- Access Port: 2
- Access Port Position: Back
- Access Port Diameter: 30 mm
- Casters: 4 [2 levelling feet]
- Interior Light: LED
- Power Failure: V-B-M-R (Optional MPR-48B2-PW required) [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
- High Temperature: V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
- Low Temperature: V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
- Door Open: V-B-M [V = Visual Alarm, B = Buzzer Alarm, M = Message]
- Power Supply: 115V/60Hz
- Noise Level: 42 dB [A]
- Warranty: 3 year parts & labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
Natural Refrigerants and Inverter Technology
Hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance and recovery time following door openings.
OLED Control Panel
The microprocessor controller and OLED display have good visibility and intuitive operation. Control buttons allow convenient but secure user control. Refrigerator temperature can be displayed in 0.1°C increments.
Minimum/maximum temperatures are automatically displayed every 12/24 hours. All alarm conditions are displayed and recorded.
User-friendly Design
The ergonomic design of the MPR Pharmaceutical Refrigerators provides a clear view of stored items through the large glass door. The slim, hassle-free sliding glass door allows for easy retrieval of products, without the concern for swinging door clearance. Users can prevent unauthorized access by utilizing the keylock on the door
Energy-efficient performance
Natural refrigerants, compressors and integrated electronics combine to achieve facility sustainability objectives by minimizing any environmental impact without compromising cooling performance, ambient tolerance and recovery time following door openings.
Safe & Secure storage
Adjustable audible and visual alarms are standard, along with integrated system diagnostics and predictive performance supervision. The password-protected control panel provides security and minimizes risk of accidental changes. If desired, alarm and operating history can be uploaded through the USB port.
Enhanced sliding glass door
The sliding glass door is meticulously designed to increase energy efficiency and safeguards stored items against heat transfer through the window. The thermal glass door is constructed from a double glass pane where argon gas is used to fill the 12 mm gap. Together with the air vents near the sliding glass door rail, it prevents the formation of moisture.
-
