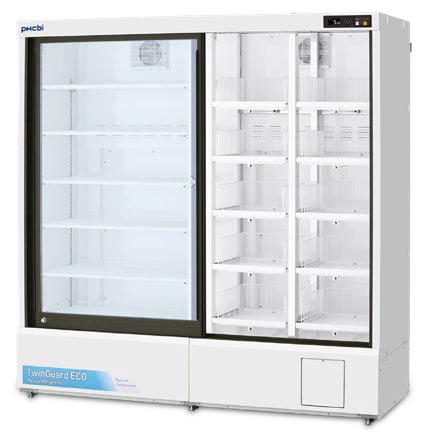

PHCbi MPR Series TwinGuard Eco 40.8 Cu. Ft. Pharmaceutical Refrigerator | Sliding Glass Door
Item#: MPR-S1201RXH-PAThe MPR-S1201RXH-PA features a TwinGuard Eco cooling refrigeration system for redundant sample protection, a microprocessor controller and digital display providing great visibility and intuitive operation. The voltage requirements for this model are as follows: 115V/60Hz/single phase/15-amp breaker. The refrigeration system utilizes Hydrocarbon refrigerants R600a. This model also comes equipped with three (3) access ports and an USB port on the control panel for data log retrieval. Door glass heating for condensation prevention on the glass.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- TwinGuard Eco cooling refrigeration system for redundant sample protection with on-board backup built in
- Refrigerator Settable Temperature Control Range of +2°C to +14°C
- Exterior Dimensions: 70.87 W × 25.59 D × 74.17 H | W 1800 x D 650 x H 1824 mm
- Interior Dimensions Refrigerator: W 66.93 x D 20.08 x H 56.10 in | W 1700 x D 510 x H 1425 mm
- Power Requirements of 115V /60Hz / single phase /15-amp breaker. (NEMA type 5-15R receptacle)
- 6 Wire shelves: Dimensions 30.74W x 16.51D x .90H in | 781W x 420D x 23H mm
- Shelf max load: 110lbs |50 kg
- 12 Sliding drawer racks: Dimensions 12.24W x 13.97D x 5.70H in | 311W x 355D x 145H mm
- Drawer max load: 44lbs | 20 kg
- Net Weight: 610.7 lbs | 277kg
- Warranty: 3 year parts & labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
- Utilizes Hydrocarbon [HC] refrigerants that are compliant with US EPA SNAP legislation for environmental sustainability.
- Digital display Control Panel that allows convenient but secure user control. Refrigerator temperature can be displayed in 0.1°C increments. USB data download available.
- Audible and visual alarms with adjustable set points warn of deviations from set point temperatures.
- Natural refrigerants, variable speed inverter compressors and integrated electronics combine to help achieve facility sustainability objectives by minimizing environmental impact.
- Condensation prevention by way of warm air emissions across the glass.
- Wire, roll out drawers
Accessories Included:
- 1 Set of 2 door keys for door lock
- Access Port
- Casters
- Interior Light
- Operator’s manual
- Warranty: 3 years Parts & Labor
Options:
- LabAlert™ Wireless Monitoring System
- LabSVIFT™ Wireless Monitoring System
- Battery kit for power failure alarm: MPR-48B2
- 4-20mA Output modules available: MTR-420MAC and MTR-420MAL
- Circular Type Dual Pen Chart Recorder: MTR-G04A-PA
- Chart Recorder Mounting Plate: MPR-S7-PW
- Circular Type Chart Recorder Paper: PG-G04-PW
- Circular Type Chart Recorder Ink Pen (Pack of 6): PG-R-PW
- I.S.T Calibration
- IQ/OQ/PQ Documents, FAT and Complete On-Site Validation
