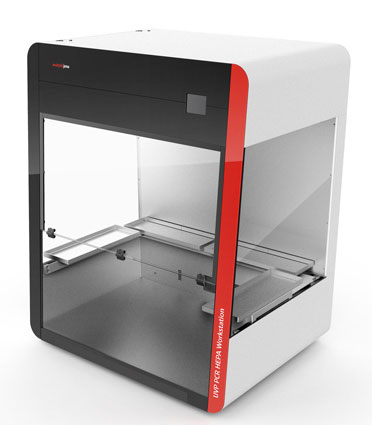

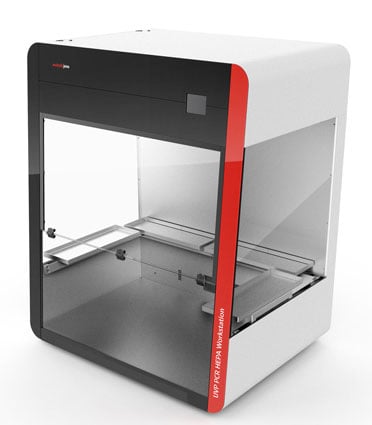

UV HEPA PCR Workstations

Item#: UVPCRHEPA-UVP
The UV HEPA PCR hood brings together UV irradiation, HEPA filtration, and antimicrobial metal surfaces to create a dual-attack environment against PCR contamination. This PCR workstation is designed for a variety of applications including PCR preparation & amplification, and microbial research. Choose from two different sizes: cabinet or workstation.
Request a Quote
Supplier:
Tag:
  • UV Source (254 nm)
    • Inside the work area
    • Pre-filter chamber
    • Air recirculator at the bottom
  • UV Safety
    • UV shut-off switches in all the chambers
    • Red LED ambient light to indicate UV on
  • White light- Overhead white LED lights brightly illuminates the work area

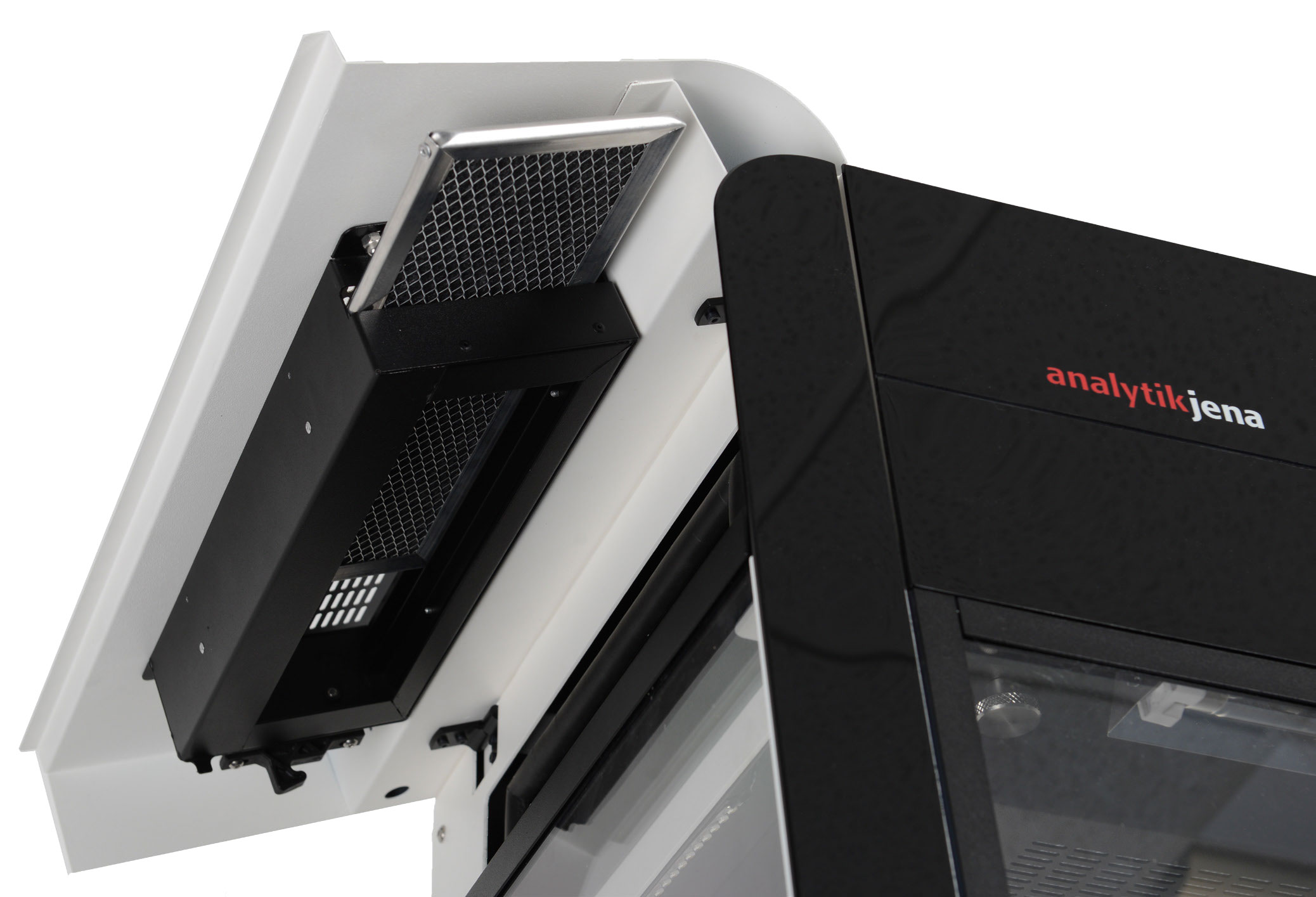

  • Filter module- 2-stage filter module: Carbon pre-filter, HEPA filter
  • Timer- 15 minutes, 30 minutes, custom (up to 99 minutes)
  • Power Outlets- 2
  • Shelves- 2
  • Work Surface- Antimicrobial coated stainless steel and aluminum
  • Exterior Dimensions (W x D x H):
    • Workstation- 32.5 x 24.25 x 39 in. (826 x 616 x 991 mm)
    • Cabinet- 27 x 20 x 35 in. (686 x 508 x 889 mm)
  • Interior Dimensions (W x D x H):
    • Workstation- 31 x 21.5 x 29 in. (787 x 546 x 737 mm)
    • Cabinet- 25 x 17 x 29 in. (635 x 432 x 737 mm)
  • 254nm UV irradiation to achieve efficient decontamination
  • Easy-clean antimicrobial coating on the stainless steel and aluminum surfaces doubles up the attack on PCR contaminants
  • Safety shut-off switch automatically turns the UV light off when door is opened
  • Makrolon® panels block all UV light below 400nm
  • Built-in power outlets for operation of equipment inside the Workstation
  • Touch screen interface to control all system functions
  • Choice of HEPA or non-HEPA system configurations based on customer needs
  • HEPA models only: 3 layers of UV irradiation + air filtration/circulation to ensure maximum decontamination, Carbon pre filter with long-life UV, HEPA filter with standard UV lamps, and Recirculator with long-life UV
  • Unique folding assembly that takes as little as 20 minutes
  • Quick and easy filter and lamp replacement as well as service
