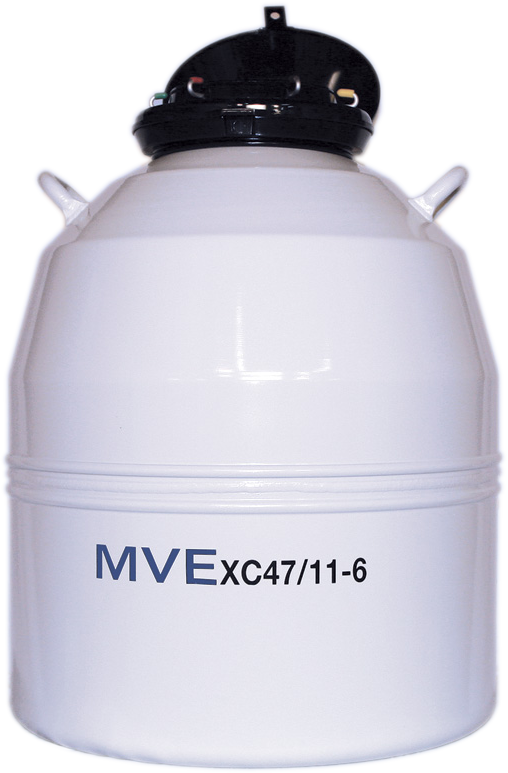

MVE XC 47/11-6 Cryogenic Freezer with (6) 11″ Canisters (Capacity: 6,200 x 1/2cc Straws)

Item#: 10719924

The XC Series tanks are manufactured to a world class level of excellence.  These durable, lightweight LN2 dewars can be relied on to perform in the most demanding of environments.  The XC Series is designed for the user who requires large capacity storage and low liquid nitrogen consumption in a convenient lightweight package.  Protective shipping carton not included.

$2,173.00

Add to wishlist
REQUEST A QUOTE
Supplier:
Tag:
  • Maximum Storage Capacity
    • Number of Canisters: 6
    • Number of ½ ccs Straws 10/cane: 3900
    • Number of ½ cc Straws 1 Level Bulk: 6216
    • Number of 1.2 & 2.0 ml vials 5/cane: 1320
    • Number of Rack 25 Vials: N/A
  • Performance
    • LN2 Capacity L: 47.4
    • LN2 Capacity Below Spider L: N/A
    • Static Evaporation Rate* L/day: 0.39
    • Normal Working Duration, Full Days: 76
  • Unit Dimensions:
    • Neck Opening in. (mm): 5.00 (127)
    • Overall Height in. (mm): 26.5 (673)
    • Overall Inner Height in. (mm): N/A
    • Outer Diameter in. (mm):  20.0 (508)
    • Canister Height in. (mm): 11 (279)
    • Canister Diameter in. (mm):  4.00 (102)
    • Distance: Platform to Top of Neck in. (mm): N/A
    • Weight Empty lb. (kg): 42 (19.0)
    • Weight with Canisters lb. (kg): N/A
    • Weight Full lb. (kg): 120.4 (54.6)

*Does Not Include Straws and Vials*

See Related Products for available canes (6 cases required)...

  • Designed for large capacity storage
  • Low liquid nitrogen consumption
  • Convenient lightweight package
  • Durable, tamper-proof lid design
  • High strength neck tub reduces liquid nitrogen loss
  • Strong light weight aluminum construction
  • Advanced chemical vacuum retention system
  • Spider design on platform for easy retrieval and insertion of product canisters
  • Warranty: 2 year parts ; 3 year vacuum

MVE XC Series Spec Sheet

Download

Chart MVE XC Series Literature

Download

Chart MVE Accessories Catalog

Download

You may also like…

  • Roller Base for MVE CryoSystem 750, XC 47/11-6, XC 47/11-10, & XC 43/28 Liquid Nitrogen Systems

    Item #: 10937411 $391.00 VIEW PRODUCT

  • Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems

    Item #: 11734421 $193.00 VIEW PRODUCT

  • Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044151 $176.00 VIEW PRODUCT

  • Protective Shipping Container for MVE XC 47/11-6, XC 47/11-10, Doble 47 & Doble 47-10 Series Liquid Nitrogen Systems

    Item #: 14035731 $871.00 VIEW PRODUCT

  • Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)

    Item #: 9713159 $217.00 VIEW PRODUCT

  • Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044143 $136.00 VIEW PRODUCT
  • Placeholder

    Hinged Lid Kit for MVE XC 47/11-6 Liquid Nitrogen Systems

    Item #: 10858721 VIEW PRODUCT

  • Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)

    Item #: 9713109 $290.00 VIEW PRODUCT

  • Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)

    Item #: 10615885 $64.00 VIEW PRODUCT

  • Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)

    Item #: 10615877 $116.00 VIEW PRODUCT

  • 11″ Canister for MVE XC 47/11-6, Doble QWick 14/4500 & Doble 47 Series Liquid Nitrogen Systems

    Item #: 14782411 $72.00 VIEW PRODUCT

  • Replaceable Neck Cork for MVE Cryosystem 750, XC 47/11-6, Doble 47 and Doble Qwick 14/4500 Liquid Nitrogen System (Dewar Neck Opening Diameter: 5″)

    Item #: 14759051 $122.00 VIEW PRODUCT

  • 47″ Long Liquid Measuring Stick for Liquid Nitrogen (pack of 5)

    Item #: 20561020 $105.00 VIEW PRODUCT

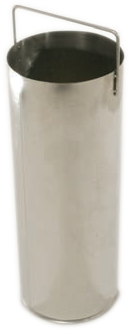

  • Center Canister for MVE XC 47/11-6 Liquid Nitrogen System
