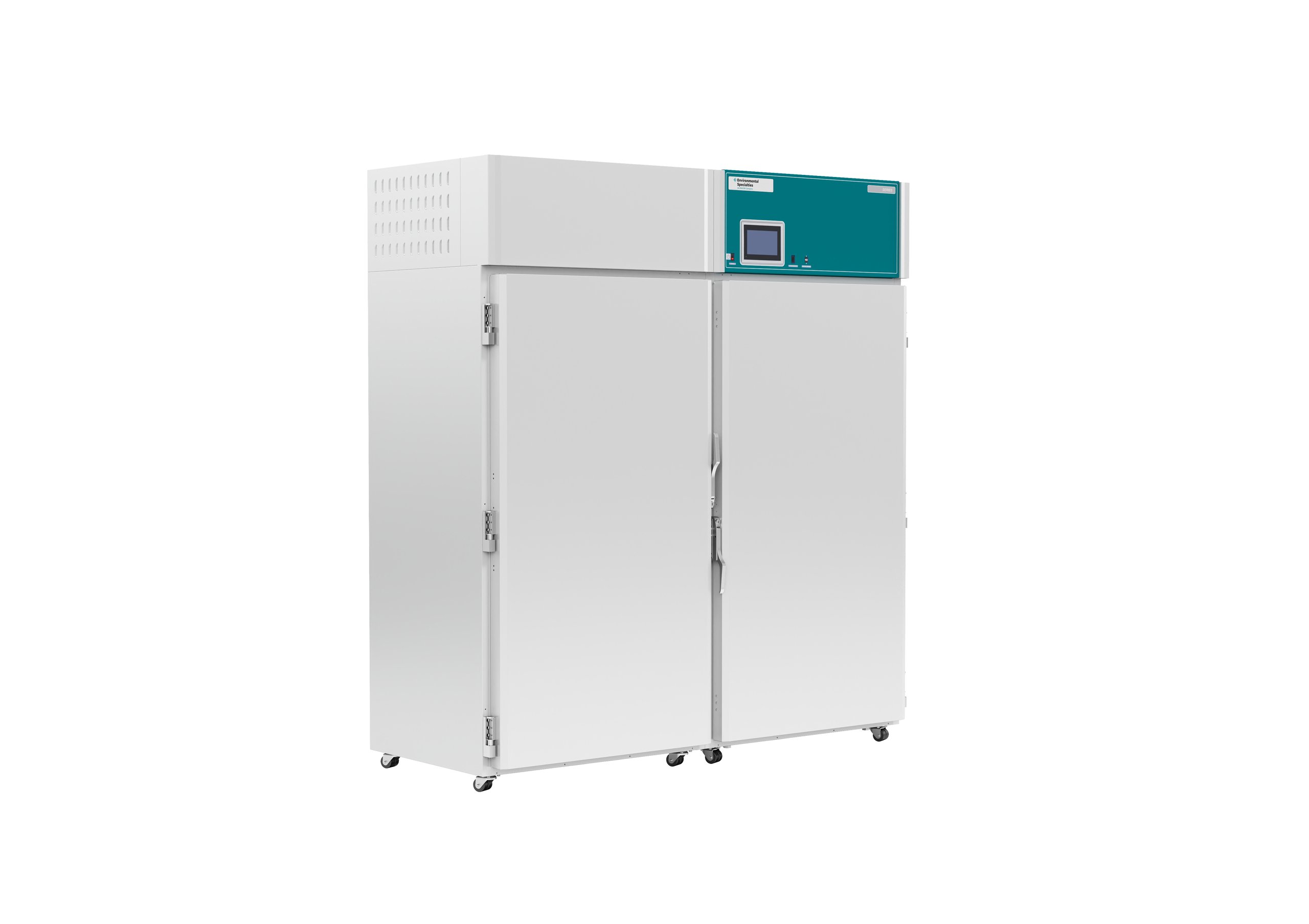

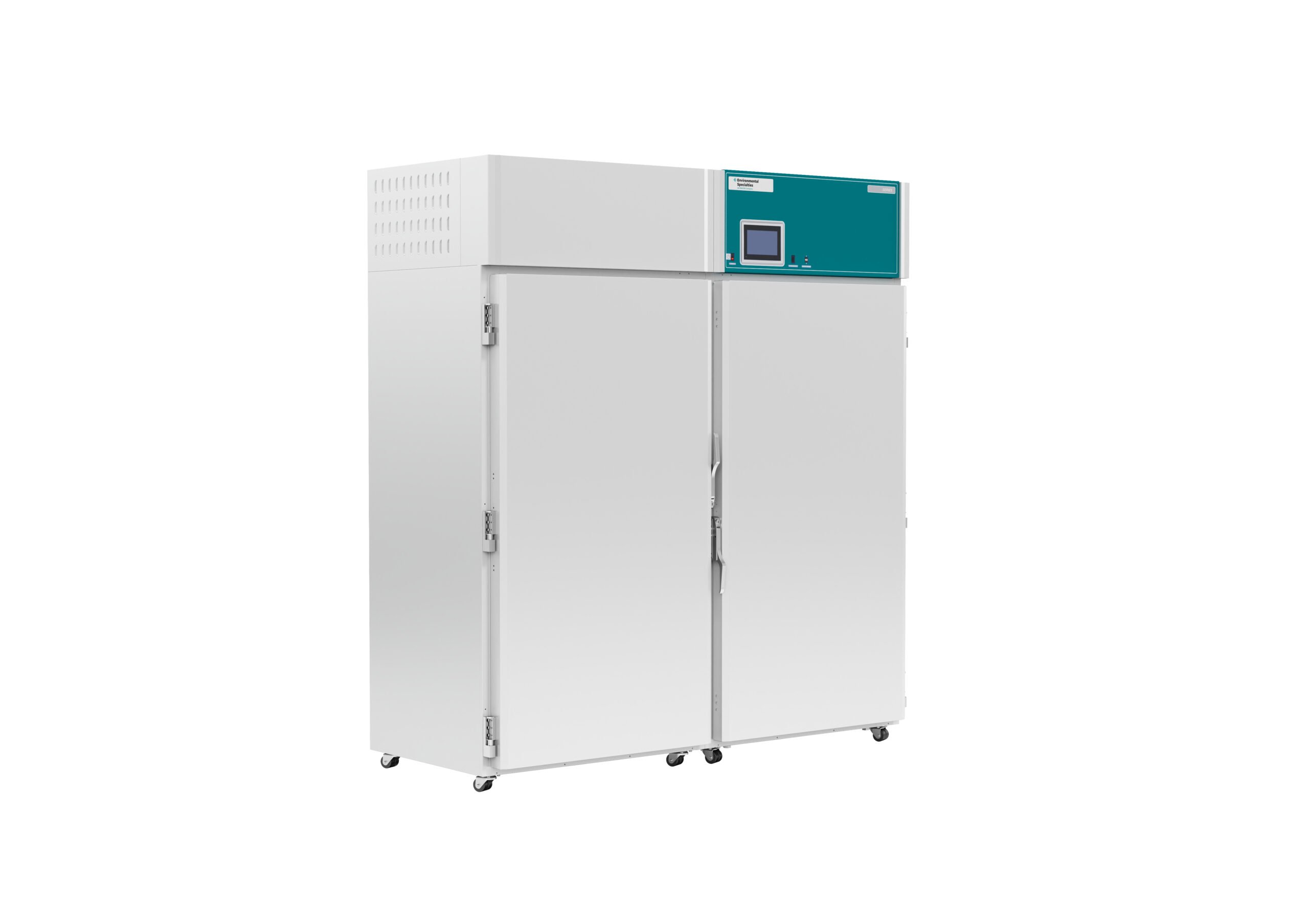

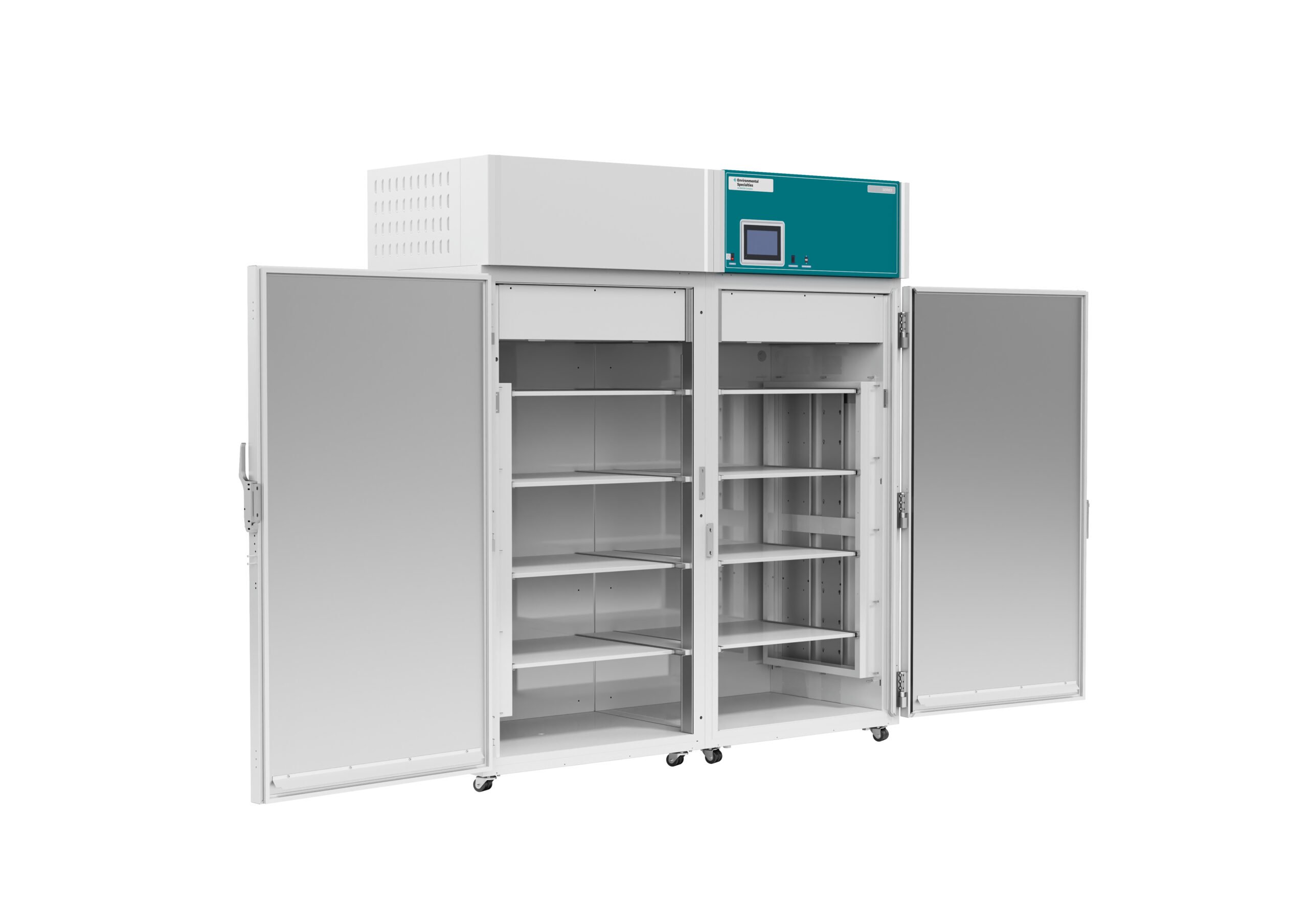

ES2000 Model A-DWC “Compact Doublewide” Warm Temp-Only Chamber | 55 Cu. Ft.

Item#: ES2000-A-DWC Request a Quote
  • Cu. Ft.: 55.6
  • Door(s): (2) solid swing doors (glass viewing window available upon request)
  • Temperature Range: +35°C to +70°C (+/- 1.0°C Volumetric Uniformity)
  • Exterior Dimensions: 82” W x 34.5” D x 76.5” H
  • Interior Dimensions: 75” W x 28.5” D x 45” H
  • 304 SS interior (SS exterior and 316 SS available upon request)
  • Alarms: Audible and visual; numerous programmable
  • Casters: Yes, plus leveling bolts
  • Shelves: (8) included; (28) max; adjustable
  • Door Lock: Front
  • Access port: 1-inch port standard; 2-inch and 3-inch available upon request
  • Electrical Requirements: 208/230V, single phase, 30A (120V or 220-240V 50Hz with CE mark available upon request)
  • Shipping Weight: 1020 lbs.
  • Touchscreen LCD controller
  • High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
  • 2-way (RS-485) or 1-way (4-20mA) communication to controller
  • Horizontal air flow across full vertical height of chamber for uniform distribution
  • Integrated refrigeration equipment on top of chamber
  • Redundant refrigeration system available upon request
  • 3A duplex receptacle available upon request
  • Chart recorder available upon request
  • Class I Div 2 construction available upon request
  • Electrofin coil coating for corrosive environments available upon request
  • Internal lighting available upon request
  • UPS available upon request
  • 20-year design life
  • MET listed
  • Warranty: 12 months parts and labor
