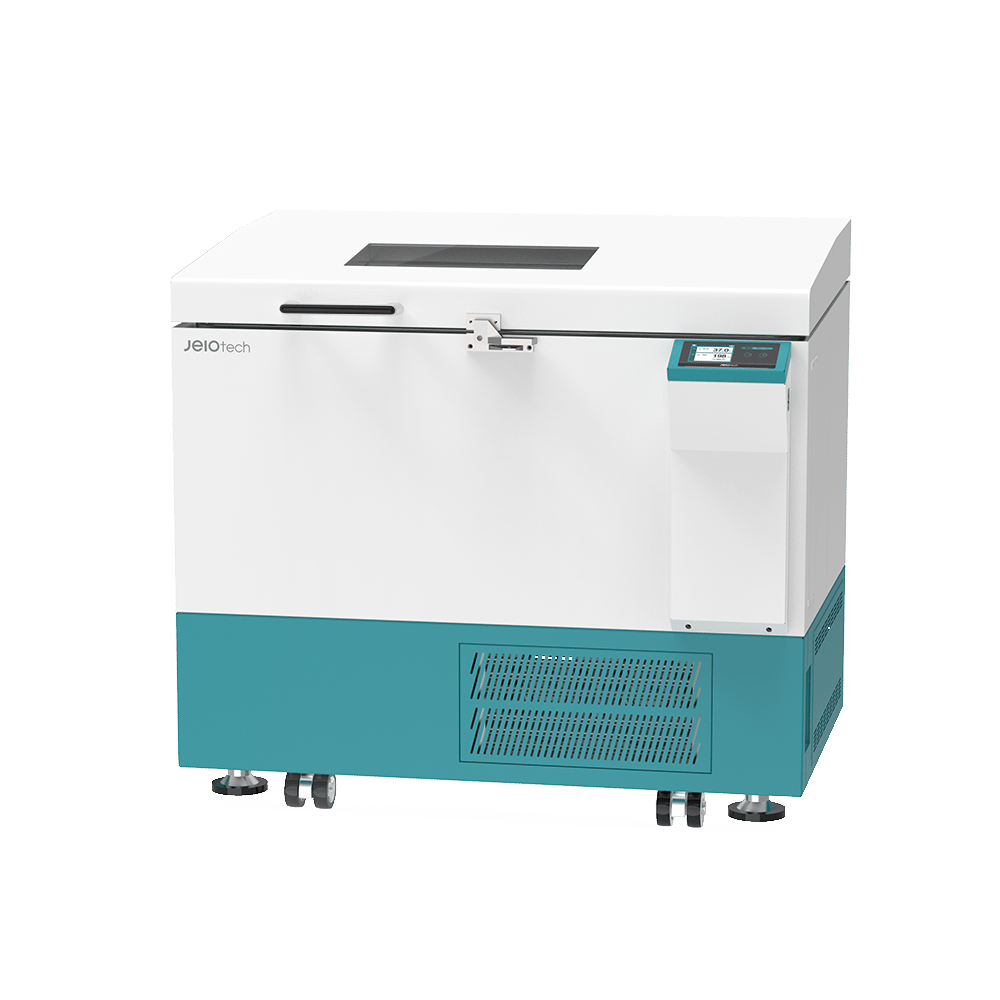

Jeio Tech ISF-7200 Large Capacity Floor Standing Incubated Shaker

Name: Jeio Tech ISF-7200 Large Capacity Floor Standing Incubated Shaker
Brand: Jeio Tech
SKU: AAH23475U
Availability: InStock

Item#: AAH23475U

The Jeio Tech ISF-7200 AAH23475U is a large-capacity floor-standing incubated shaker for high-load laboratory shaking applications. It provides a 30 to 300 rpm speed range with a 50.8 mm orbital motion and temperatures up to 80°C. The 270 L chamber and large platform accommodate demanding workloads, including up to five 6 L flasks.

Microprocessor PID control supports precise temperature and shaking performance with temperature auto-tuning and calibration. Safety features include dual over-temperature protection, soft start and stop, overload detection, and real-time self-diagnostics. Optional LC GreenBox connectivity enables remote monitoring through the LC Connected mobile app.

Request a Quote

Supplier: Jeio Tech

Temperature:
- Range (°C / °F): Amb. +5 to 80 / Amb. +9 to 176
- Fluctuation at 37°C (±°C / °F) in flask 0.1 / 0.18
- Variation at 37°C (±°C / °F) in flask 0.5 / 0.90
Shaking system
- Motion type: Orbital
- Speed range (rpm): 30 to 300
- Max. speed per permissible load (rpm): 300 (max. 20 kg / 44.1 Ibs), 200 (max. 35 kg / 77.2 Ibs)
- Amplitude size (mm / inch, dia.): 50.8 / 2
- Speed stability (rpm, %): ±1
- Timer (count-down): 999 hr 59 min.
Dimension
- Chamber volume (L / cu ft) 270 / 9.5
- Platform (W x D, mm / inch) 755 x 520 / 29.7 x 20.5
- Interior (W x D x H, mm / inch) 894 x 634 x 480 / 35.2 x 25 x 18.9
- Exterior (W x D x H, mm / inch) 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8
Net weight (Kg / lbs) 277 / 610.7
Electrical requirements (120V, A) 60Hz, 7.3

Structural Functional Features
- Up to 80°C, 500rpm enables setting of various experimental conditions.
- It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254)
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Easy to move/fix the product.
- Stable shaking of high-load samples.
  (patent registered: 10-1678160)
Use Convenience Features
- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)
- Countdown timer (999 hours 59 minutes) of shaking operation.
- Spill drain port for internal cleanliness and easy maintenance.
Outstanding Safety
- Electronic over temperature protection system.
  (A-OT, advanced over temperature limiter)
- Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
- Conventional over-temperature protection system.
  (B-OT, backup over temperature limiter)
- A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
- Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
