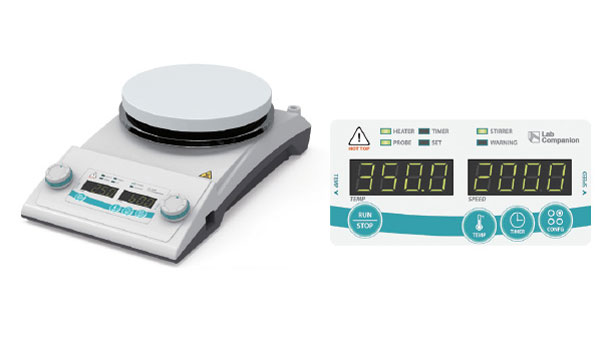

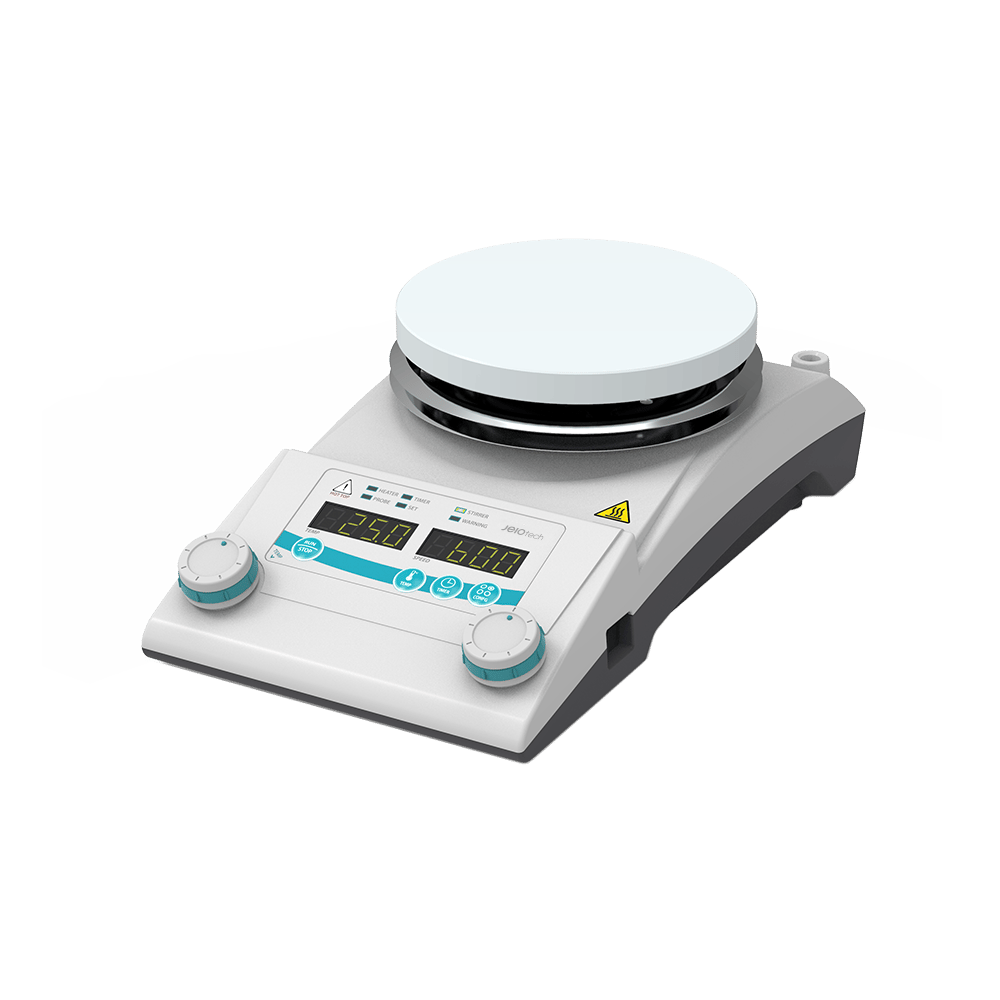

Lab Companion TS-14SG Hotplate & Magnetic Stirrer (Digital, Φ140mm), US plug
Item#: AAH34443UThe Lab Companion T-14SG Hotplate and magnetic stirrer has precise temperature control by external temperature sensor, with the capability to show temperature and rpm simultaneously.
$821.00 $779.95
Heating
- Temperature range (℃ /℉): Top plate, Max, 350 / 662
- Control mode: PID Feedback (optional, fast, slow)
- Display resolution (℃ /℉): 0.1 / 32.18
Stirring
- Speed range (rpm): 30 to 2000
- Capacity (H2O, L): 20
- Magnetic bar , Max. (L x Ø, mm / inch): 40 x 8 / 0.31 x 1.57
Material
- Top plate: White ceramic coated aluminum alloy
- Body: Powder coated aluminium alloy
- Motor type: BLDC (Brushless Direct Current)
- Temperature probe: PT 100 (B class, Max. 250℃ ,482℉)
Dimension
- Top plate (Ø or W x D, mm / inch): 140 / 5.51
- Exterior (W x D x H, mm / inch): 161 x 290 x 100 / 6.34 x 11.42 x 3.94
- Net weight (kg / lbs): 2.8 / 6.17
Timer: Max. 99 hrs 59 min.
Electrical requirements: (120V, 60Hz, A) 5.0
Structural Functional Features
- Includes temperature probe (B class) as standard.
- Displays external temperature sensor errors.
- Top plate coated with white ceramic for excellent corrosion resistance.
- Excellent heat transfer and durability due to heater-integrated structure.
- Using special permanent magnets for maintaining stirring ability.
Use Convenience Features
- Precise temperature/stirring control with PID feedback control.
- Temperature control mode selection function.
(Optimal/Fast/Slow/User/Point) - Includes temperature auto-tuning and calibration functions.
- Count-down timer provided. (up to 99 hours and 59 minutes)
- Clamp Rod (option) can be added to the main body fix other experiment equipment.
- Convenient experiment observation with removable transparent shield. (option)
Outstanding Safety
- Spill-proof design minimizes inflow solution into device.
- Safety ensured by BLDC motor that does not generate sparks.
- Preventing equipment failure with multiple over temperature prevention devices.
- Warning displayed when top plate is 50°C or more.
- Prevents sample run-off thanks to smooth stirring start.
- The heating bath (option) is combined with the top plate to ensure safety. (except TS-Q)
