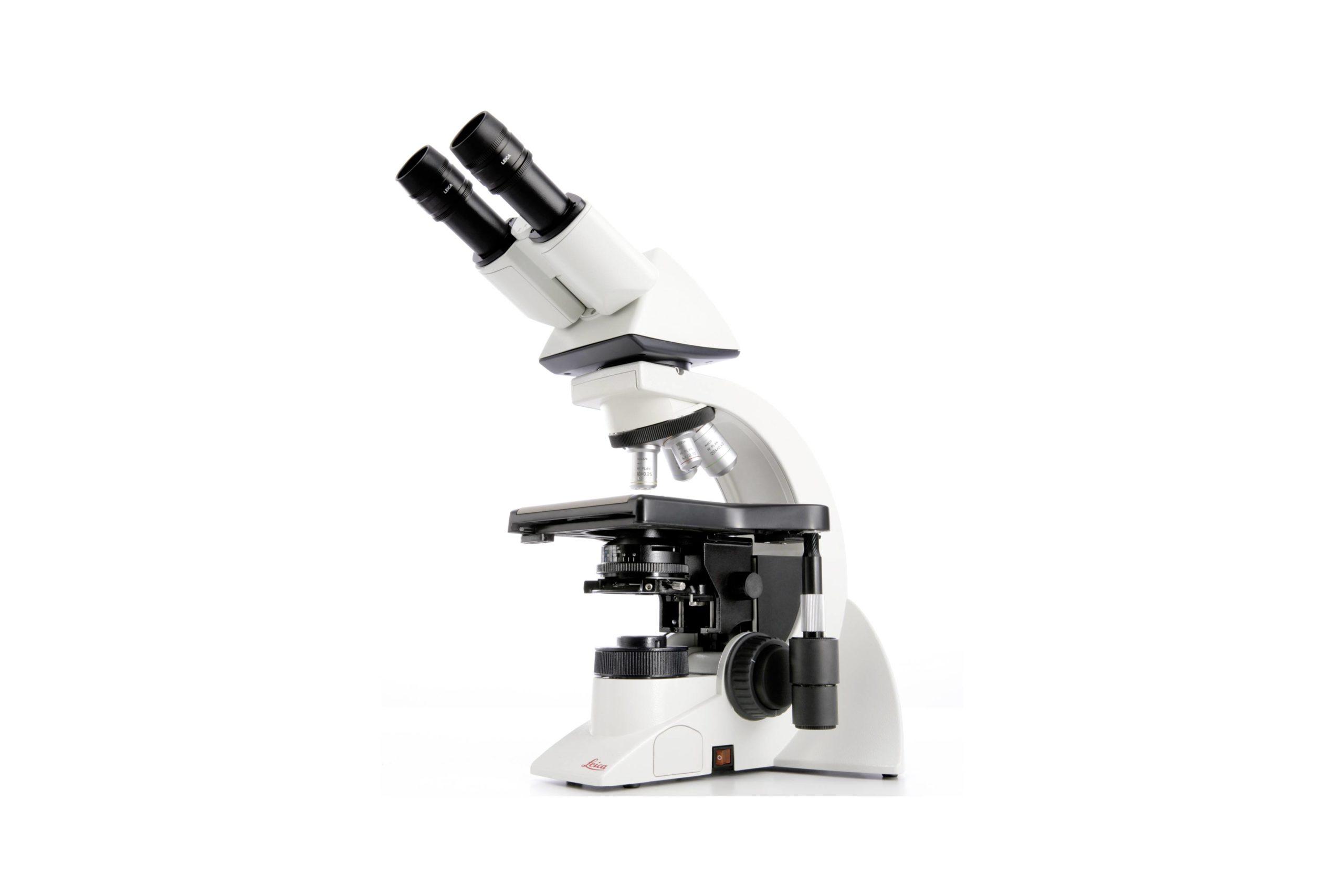

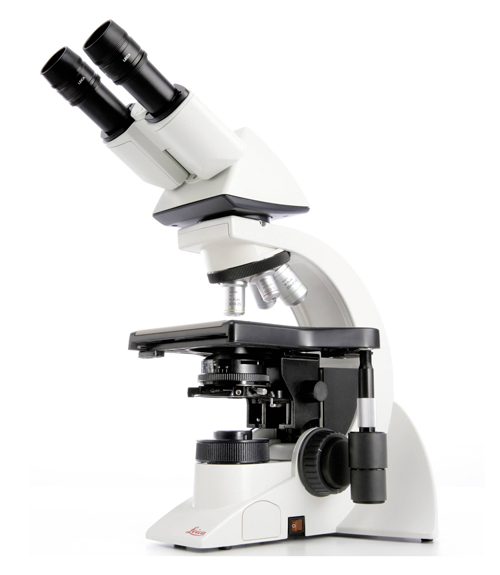

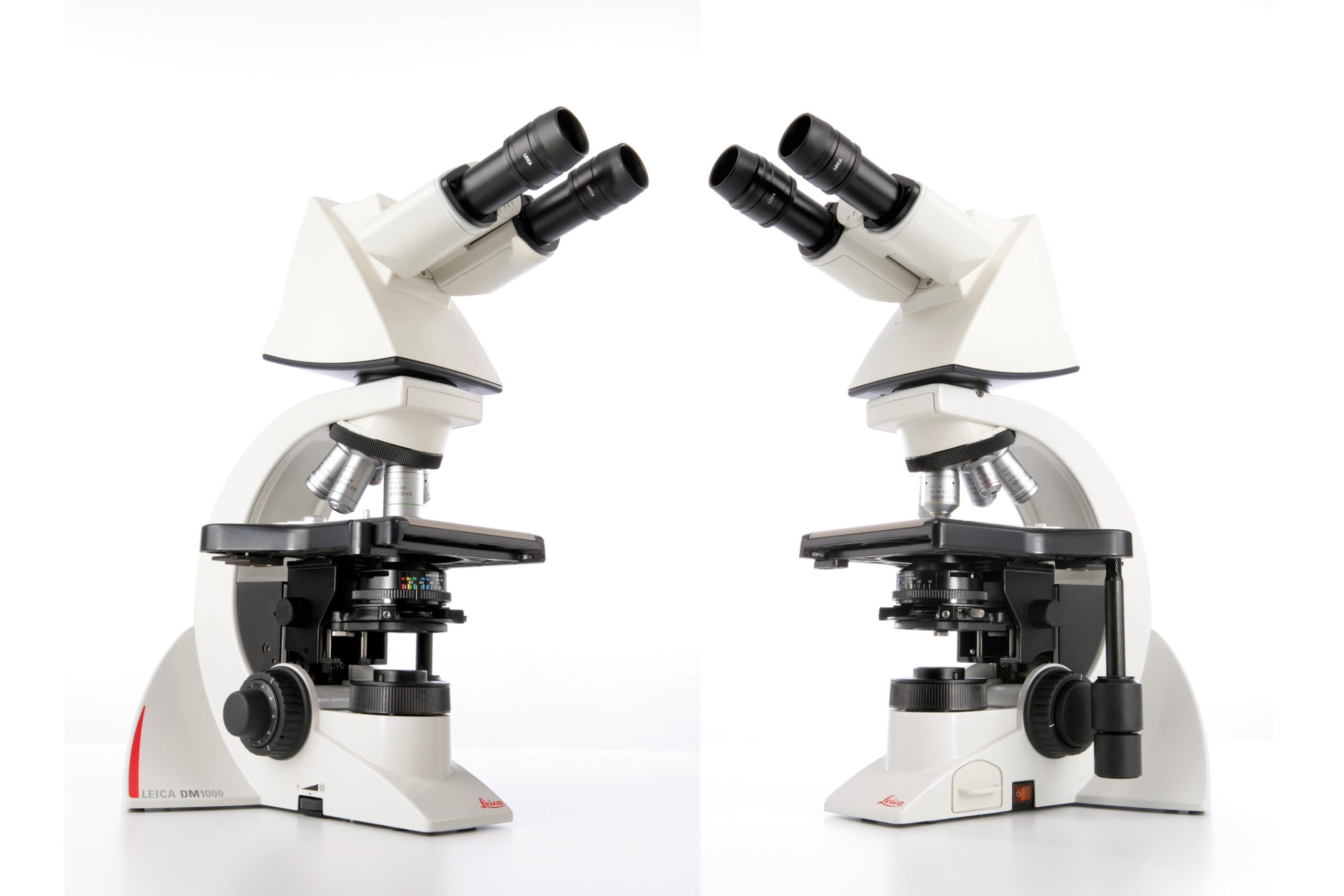

Leica DM1000 LED Ergonomic System Microscope
Item#: DM1000LEDThe DM1000 LED Ergonomic Microscope from Leica Microsystems features LED illumination creating a near daylight, bright illumination with constant color temperature. The LED also saves time and lowers costs by eliminating the need for lamp changes. This microscope system is energy efficient with low power consumption. Users of the Leica DM1000 LED benefit from the system’s ability to uniquely adapt to every user. The DM1000 LED microscope is ideal for all clinical laboratory applications, especially for cytology, haematology, and pathology. For special diagnostics requirements, the microscope is certified for in-vitro-diagnostics (IVD) like in-vitro-fertilization (IVF). A portable, battery-powered option is also available for field use.
Stand:
- Power supply: External
- Koehler:
- Variable Koehler Illumination
- Prefixed Koehler
- Eyetubes:
- Ergotube 15° viewing angle FOV 22
- Standard tube 30° viewing angle FOV 22
- Ergo tilting eyetube FOV 25 (long)
- Ergo tilting eyetube FOV 22 (short)
- Advanced ergo tilting eyetube FOV 22
- Phototubes:
- Trinocular ergo tilting phototube 50/50 FOV 22
- Trinocular ergo tilting phototube 100/100 FOV 25
- Trinocular ergo tilting phototube 50/50 FOV 25
- BDT25 0/50/100 dual port option FOV 25
- EDT22 50/50 FOV 22
- Ergomodules
- 30 mm or 60 mm
- variable 50-80 mm
Operation
- Focus:
- Height adjustable focus knobs
- 2-gear focusing: coarse, fine, focus stop
- Objective turret:
- 5-fold
- Objective:
- Brightness synchronized objective series 4x, 10x, 40x
- Stage:
- Ceramic-coated (ultra-hard ceramic)
- Left/right (exchangeable by user)
- Rack less
- Telescopic drive
- Adjustable torque
- Rotatable / stage for two slides (option)
TL Axis
- Illumination:
- Integrated LED illumination
- Filtering:
- Flip-out blue filter
- Filter holder for 2 filters
- Filter magazine for 3 filters
- Condenser:
- Standard condenser CL/PH color coding (2.5x–100x)
- Apl. Flip top condenser color coding (1.25x–100x)
- Universal condenser UCL BF/Phase/DF
- Contrast methods:
- BF
- DF, PH, POL
Flou-Axis
- Illumination:
- 50 W or 100 W Hg
- 75 W Xe
- 12 V/100 W halogen lamp
- Leica SFL100/SFL4000
- Filter cube changer:
- Slider with 3 positions for filter cubes
