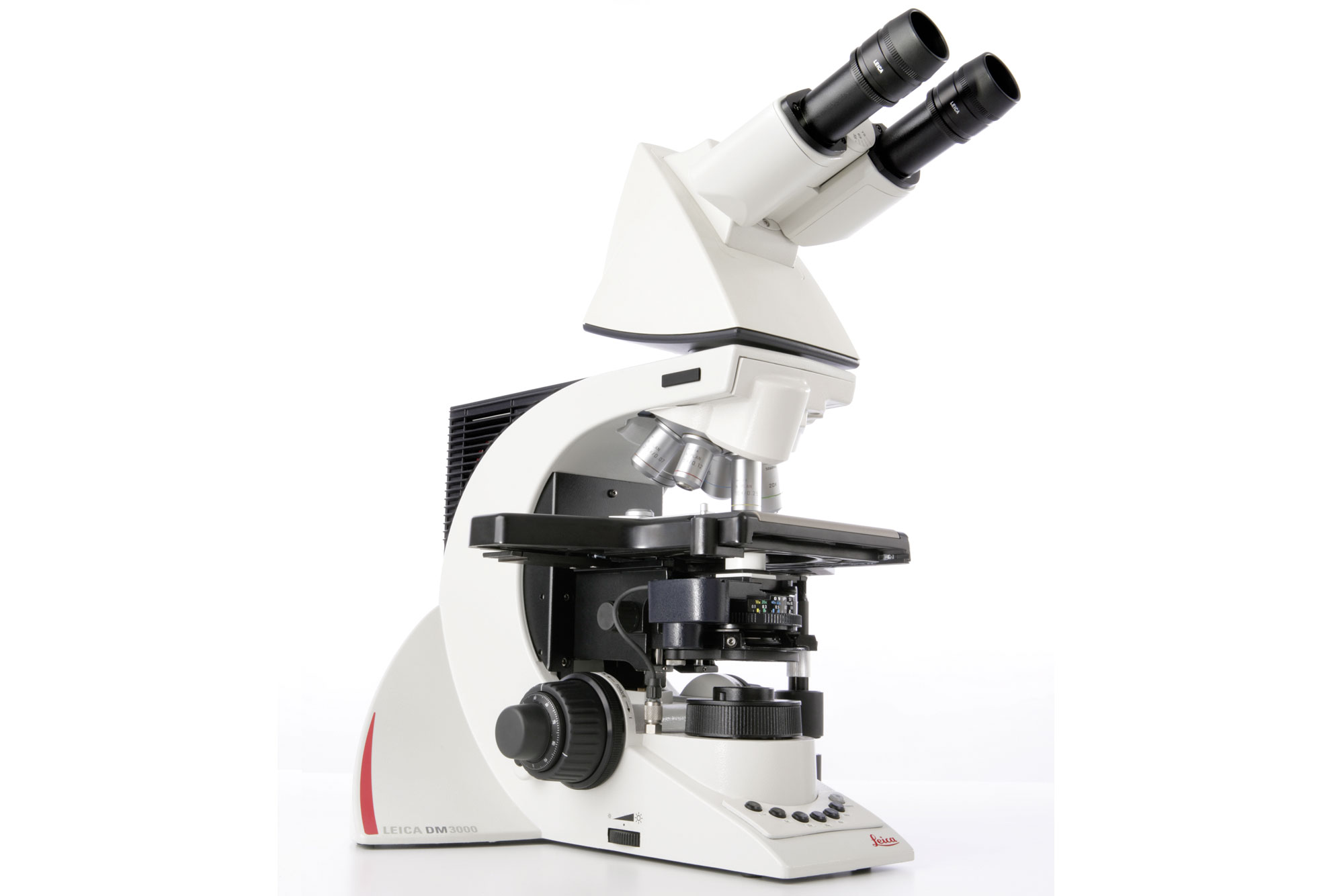

Leica DM3000LED Ergonomic System Microscopes With Intelligent Automation

Stand

• Power supply:
  • Integrated
• Koehler:
  • Variable Koehler Illumination
• Eyetubes:
  • Ergotube 15° viewing angle FOV 22
  • Standard tube 30° viewing angle FOV 22
  • Ergo tilting eyetube FOV 25 (long)
  • Ergo tilting eyetube FOV 22 (short)
  • Advanced ergo tilting eyetube FOV 22
• Phototubes:
  • Trinocular ergo tilting phototube 50/50 FOV 22
  • Trinocular ergo tilting phototube 100/100 FOV 25
  • Trinocular ergo tilting phototube 50/50 FOV 25
  • BDT25 0/50/100 dual port option FOV 25
  • EDT22 50/50 FOV 22
• Ergomodules:
  • 30 mm or 60 mm
  • variable 50-80 mm

Operation

• Focus:
  • Height adjustable focus knobs
  • 5 focus functions: 2- or 3-gear focusing, focus-stop, adjustable torque
• Objective turret:

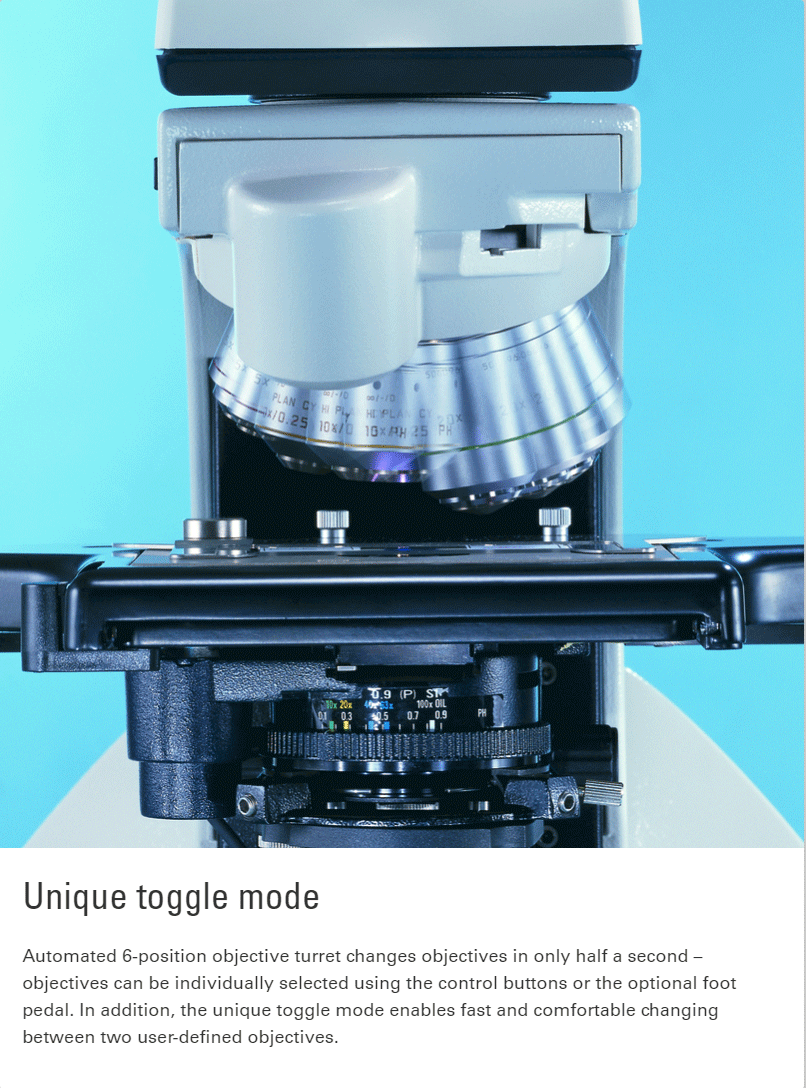

  • Automatic 6-position objective turret with additional toggle mode
• Objective:
  • Brightness synchronized objective series 4x, 10x, 40x
• Light intensity adjustment:

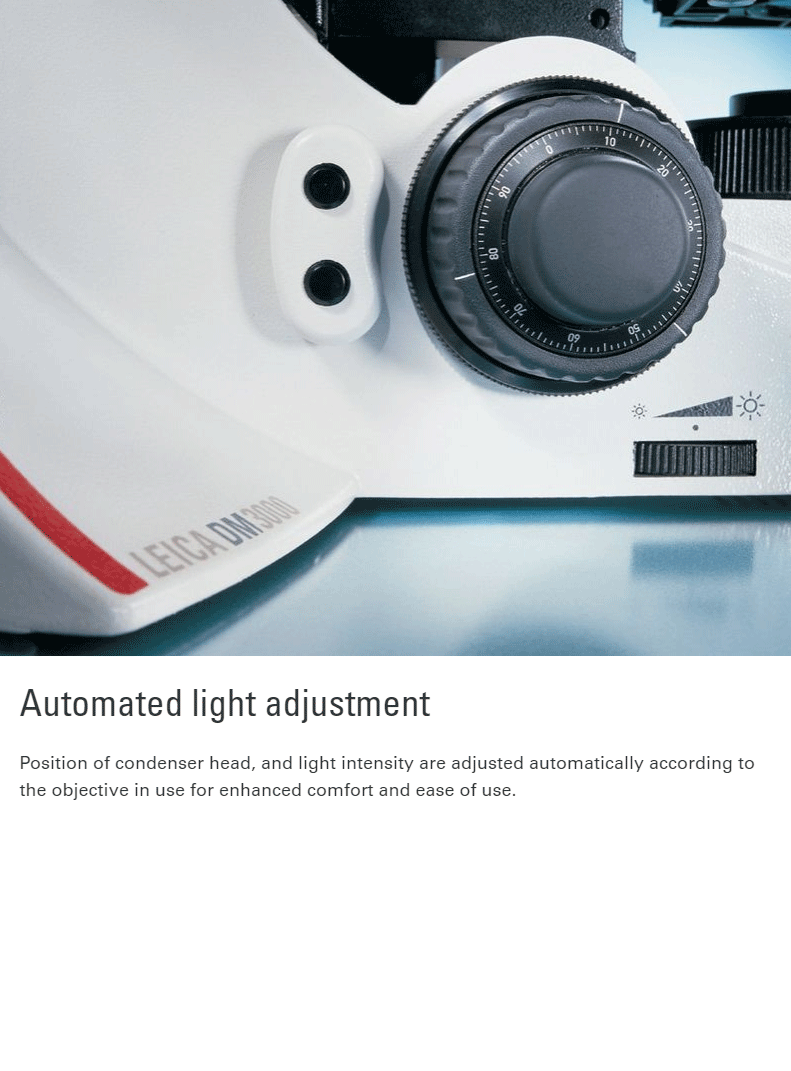

  • Automatic light intensity adaptation for varying magnifications
• Stage:
  • Ceramic-coated (ultra-hard ceramic)
  • Left/right (exchangeable by user)
  • Rack less
  • Telescopic drive
  • Adjustable torque
  • Rotatable / stage for two slides (option)

TL Axis

• Illumination:
  • Integrated LED illumination
• Filtering:
  • Flip-out blue filter
  • Filter holder for 2 filters
  • Filter magazine for 3 filters
• Condenser:
  • Standard condenser CL/PH color coding (2.5x–100x)
  • Apl. Flip top condenser color coding (1.25x–100x)
  • Automated Achr. Apl. Flip top condenser with color coding (1.25x–100x)
  • Universal condenser UCL BF/Phase/DF
  • Universal condenser UCA BF/Phase/DF/DIC
• Contrast methods:
  • BF
  • DF, PH, POL
  • DIC

Flou-Axis

• Illumination:
  • 50 W or 100 W Hg
  • 75 W Xe
  • 12 V/100 W halogen lamp
  • Leica SFL100/SFL4000
• Filter cube changer:
  • 5-position filter cube turret
