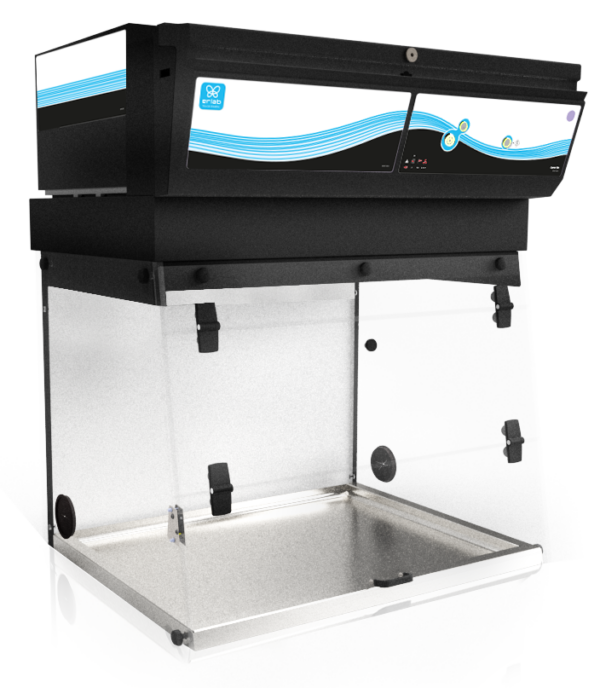

Erlab CaptairBio 321 PCR Workstation
Item#: CAPTAIRBIO321The Erlab CaptairBio 321 PCR Workstation was designed to protect cross contamination of your DNA/RNA samples, protect contamination of the laboratory, and also protect the user from contamination during its application. The 321 S model is the basic model and does not come equipped with a control panel. Air from the room is gathered and processed through a H14 HEPA filter and then blown into the enclosure, preventing any contamination of samples. Air is blown towards the operator to prevent user contamination and UV rays are used to decontaminate the enclosure between two consecutive PCR experiments to avoid cross-contamination.
Supplier: Erlab, Inc.
Tag: PCR Enclosures- Exterior Dimensions (WxHxD): 31 7/8” x 38 1/8” - 42" x 24 1/4”
- Interior Dimensions (WxHxD): 30 7/8” x 23 3/8” x 19 5/8" - 20 1/8”
- Voltage/Frequency: 100-240 V / 50-60 Hz
- Watts:
- 1P Model: 40
- 1C1P Model: 45
- Decibel Level (dBA):
- 1P Model: 54
- 1C1P Model: 57
- Air face velocity (m/s): 68 fpm
- Air flow (m3/h):
- 1P Model: 117 cfm
- 1C1P Model: 144 cfm
- Side and front panels: 10 mm thick synthetic glass is designed to protect users from harmful UV rays and β (Bêta) emitted
from radioactive isotopes such as: T(3H), 14C, 32P - Structure: Corrosion resistant electro-galvanized steel coated with anti-acid polymer
- Filtration Module: Polypropylene
- Particulate filter (1P): HEPA H14 : This filtration technology traps particles larger than 0.1 μm with 99.995% efficiencyaccording to the MPPS method set forth in the EN 1822-1 standard. ULPA U17 :This filtration technology traps particles larger than 0.1 μm with 99.999995% efficiency according to the MPPS method set forth in the EN 1822-1 standard.
- Carbon filter (optional) (1C): Adding a carbon filter to your enclosure allows protection of your samples from VOCs. AS filter: For organic vapors.
- Particulate pre-filter: Protect particulate filters from dust contaoned in the laboratory environment (only for 1P version)
- Bacterial UV Lights:
- 15W - Wavelength: 254 nm
- 0.08 mJ/ s/cm2
- Internal Lighting:
- LED - IP 44 - 6000k
- 900 lux
- eGuard app (Android or IOS): Mobile app for real time remote control of Smart devices
- Connectivity: RJ45 cable connection to view and change workstation settings (cable included)
- Anemometer: Monitors a drop in pressure that indicates pre-filter or filter replacement is required
- Side panel utility ports: 2 per unit
Optional Accessories (priced separately):
- Benches: Rolling cart (Mobicap) or fixed bench (Benchcap)
- Shelves: Internal metal sliding shelf (only for Benchap)
- Worktop: TRESPA® TOPLABPLUS, Glass or 304L Stainless Steel
- Molecode S: Automatic detection of VOC filter breakthrough
- Complete protection for RNA/DNA amplification
- Featuring a high efficiency filtration system that provides a particulate free atmosphere around the manipulation. A high energy UV light is used to decontaminate the worktop from biological cross-contamination between operations.
- Particulate free workstation
- Protect against external contamination
- Internal air quality achieved by high efficiency particulate filter(s) (HEPA H 14 / ULPA U16)
- Carbon filter (optional) to protect handlings from VOCs present in the laboratory atmosphere
- UV decontamination
- Protect your samples from cross-contamination
- Powerful UV decontamination (254 nm lamp power)
- Adjustable timer
- Automatic UV lamp off switch in case the sash is opened when the UV light is on
- Easy to clean
- Work surface is easy to clean
- Seamless worktop with smooth corners, available in TRESPA®TopLabPLUS or Stainless steel (304 L)
- Low porosity material
- Ergonomic design
- Slanted sash provides an ergonomic position for comfort and productivity
- Compact tubular fluorescent lighting
- Side panel utility ports allow electrical cables and/or fluid lines to enter the enclosure with ease.
Erlab CaptairBio 320 PCR Workstation Datasheet
