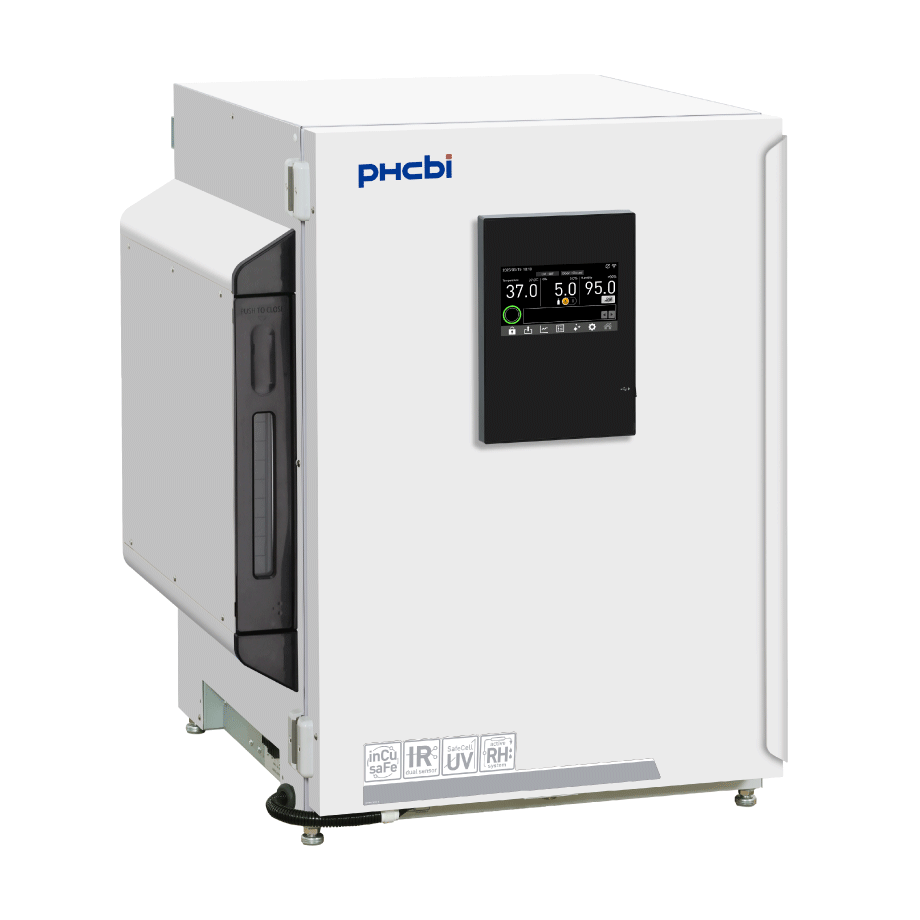

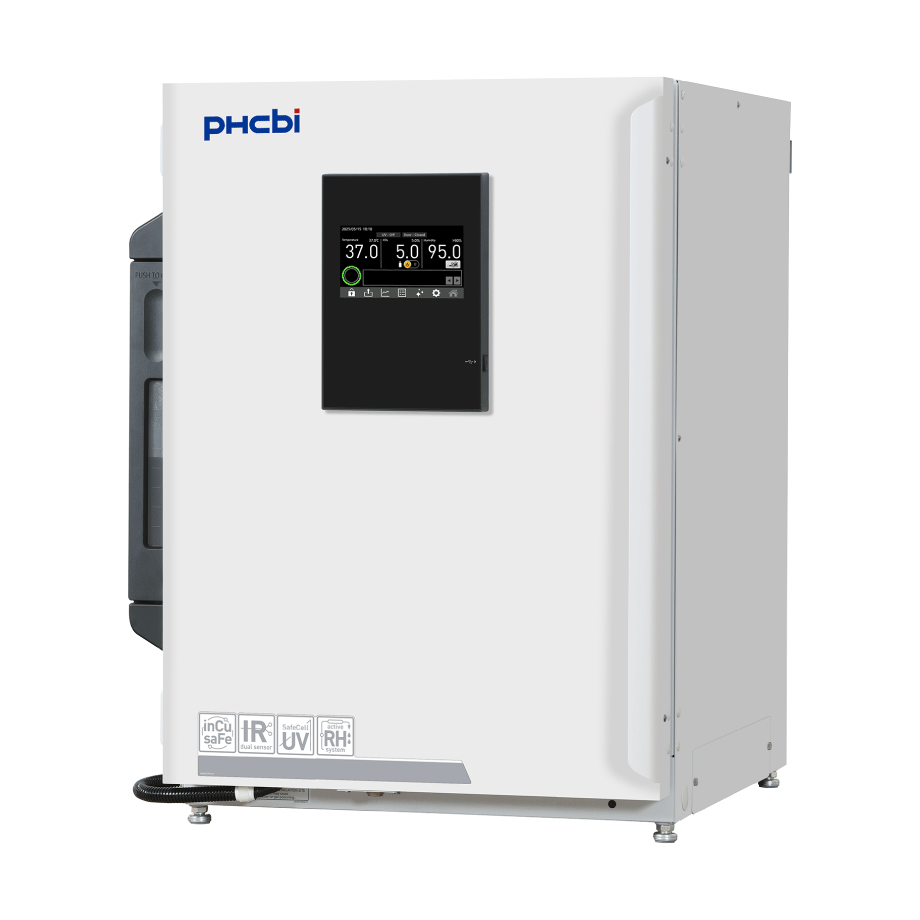

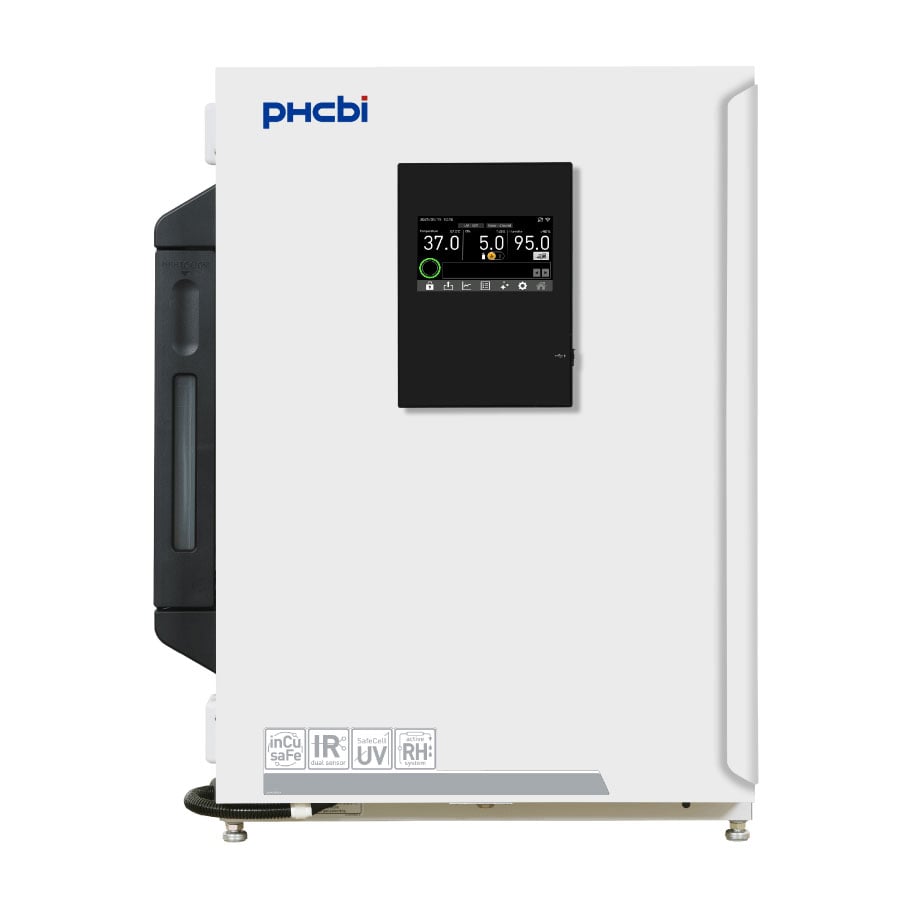

PHCbi MCO-173AICUVX-PA Cell-IQ™ Series Active Humidification CO2 Incubator with UV-LED | 5.83 cu. ft. (165 L)
Item#: MCO-173AICUVX-PAPHCbi MCO-173AICUVX-PA Cell-IQ™ Series Active Humidification CO₂ Incubator is a 5.83 cu. ft. incubator designed to provide exceptional environmental control, contamination protection, and humidity stability for advanced cell culture applications. Its hybrid-active humidification system maintains humidity levels up to 95% RH, creating in vivo-like culture conditions while supporting optimal cell growth and viability. The chamber combines an inCu-saFe® copper-enriched stainless-steel interior with SafeCell UV-LED technology to help reduce contamination risks and maintain a cleaner culture environment. A large 7-inch touchscreen and integrated LabSVIFT® connectivity provide advanced monitoring, alarm tracking, remote access, and FDA 21 CFR Part 11-compliant record management, making this incubator an ideal solution for research, biopharmaceutical, and clinical laboratories.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Exterior Dimensions: 27.5" W x 28.7" D x 35.6" H (700 x 730 x 905 mm)
- Interior Dimensions: 19.3" W x 20.6" D x 26.2" H (490 x 523 x 665 mm)
- Interior Volume: 5.83 cu.ft. (165 L)
- Interior Surfaces: InCu-saFe stainless steel with copper enriched alloy
- Net Weight: 174 lbs (79 kg)
- Outer Door: Painted steel
- Shelves: 18.5" W × 17.7" D × 0.5" H | 470 × 450 × 12 mm | Maximum load: 15 lbs (7 kg)/tray
- Access Port: 1: Rear Upper (1.2" [30 mm] diameter)
- Heating Method: Direct Heat and Air Jacket System
- UV Lamp: LED-based; Included (MCO-LUVS-PA)
- Temperature Control Range: Ambient temperature +5ºC to 50ºC
- Temperature Uniformity: ±0.25ºC
- CO2 Control Range: 0% to 20%
- CO2 Controller: Microprocessor
- CO2 Sensor Type: Dual Beam Infrared Sensor
- Temperature Sensor: Thermistor
- Data Output: USB 4-20 mA Analog Output (CO2, Temperature, and RH)
- Data Acquisition: Standard 4-20 mA Module; Data Export via USB
- Contamination Controls: InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
- Display: Color LCD touchscreen readable in 0.1 increments
- Humidifying System: Hybrid on-demand stream generation with humidifying pan (Depending on humidity setting)

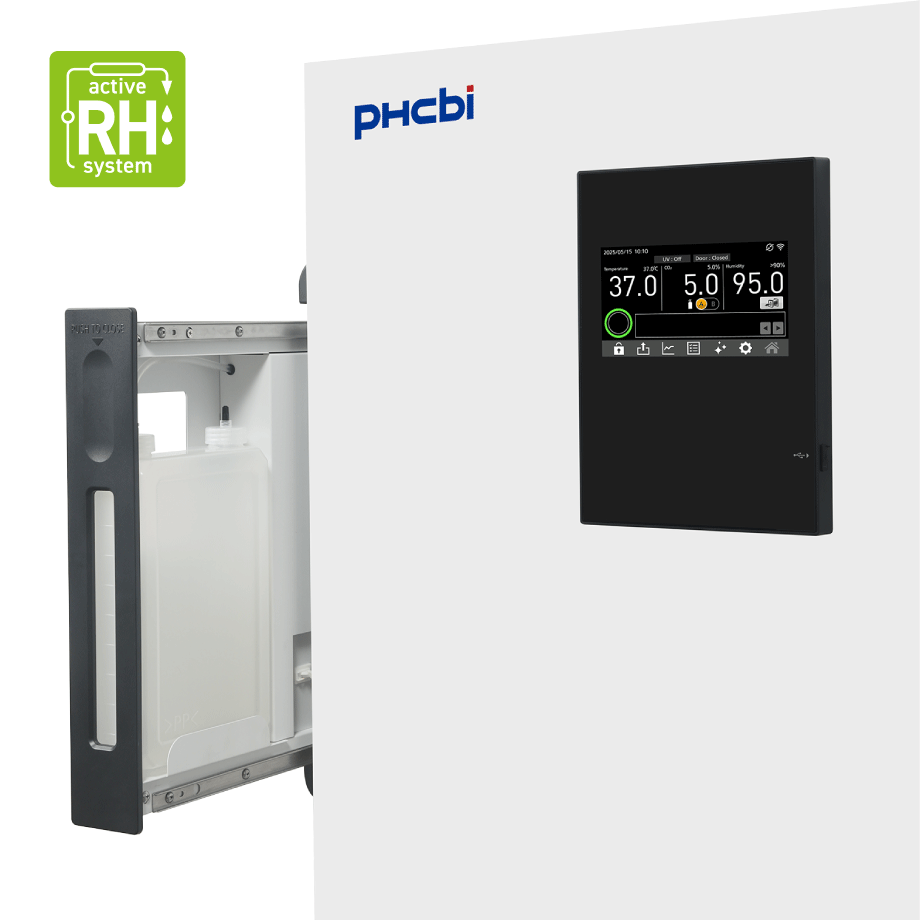

- How the Hybrid‑Active Humidification System Works:
-
Active Humidification System: Heat‑based evaporation actively controls humidity to a stable 80–90% RH.
-
Dual-Mode Humidification System: Active + passive humidification achieves 95% ± 5% RH for in‑vivo‑like conditions.
-
- InCuSafe Interior: Copper‑enriched stainless steel inhibits microbial growth on interior surfaces, supports a cleaner chamber environment.
- SafeCell UV-LED: Ozone‑free UV‑LED irradiation reduces airborne contaminants without affecting cell viability.

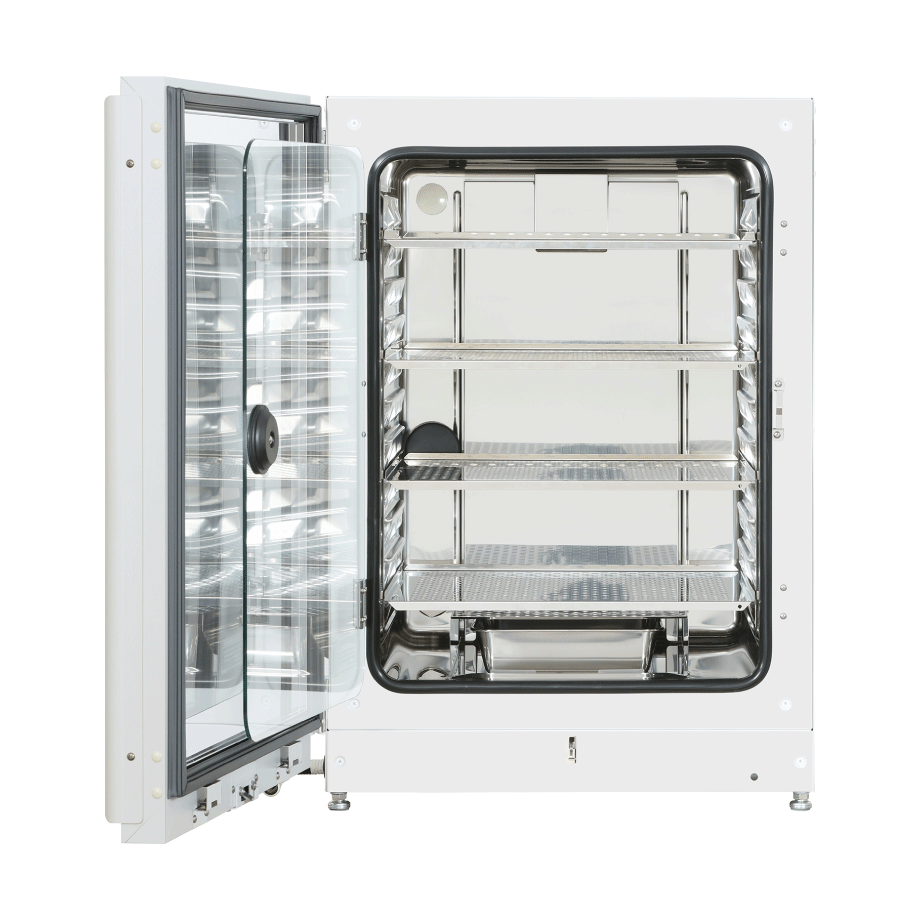

- Integrated Shelving: Integrated, molded shelf channels with curved corners allow for easy cleaning and help reduce sources of contamination.
- Intelligent Interface: A modern interface designed for clarity and confidence. The MCO-173AICUVX-PA incubator makes monitoring and control simple with a clean design and intuitive tools.
- Large 7-inch touchscreen: Sleek black panel, 44% larger for improved visibility and ease of use.
- Door activity overlay: Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.
- Instant support: Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.
- Guided self-service tools: Designed to enable quick troubleshooting with service support available when needed
- Integrated Lab Monitoring with LabSVIFT®: LabSVIFT is a cloud-based service built to simplify equipment monitoring and performance tracking. It provides 24/7 monitoring*, real‑time alerts, and centralized records compliant with FDA 21 CFR Part 11**. The built‑in health check feature evaluates equipment performance and flags irregularities with recommended corrective actions. Whether you’re reviewing routine performance data or checking its status from your phone, LabSVIFT helps ensure your incubator is secure and operating at peak performance.
-
