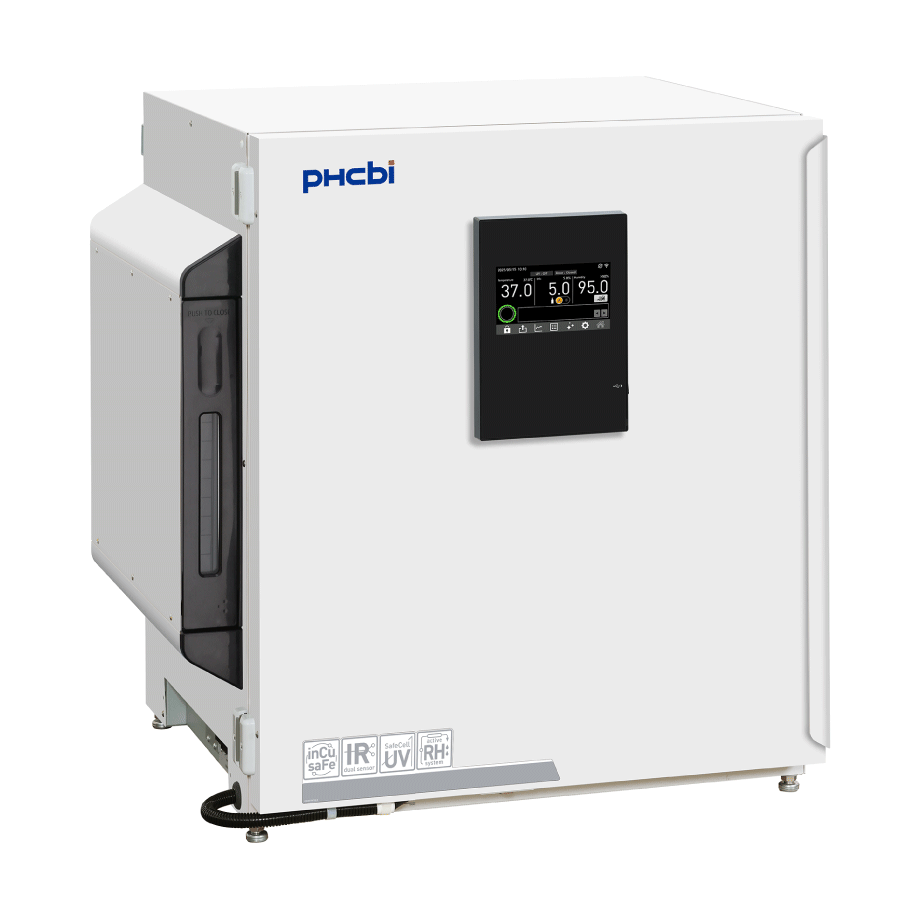

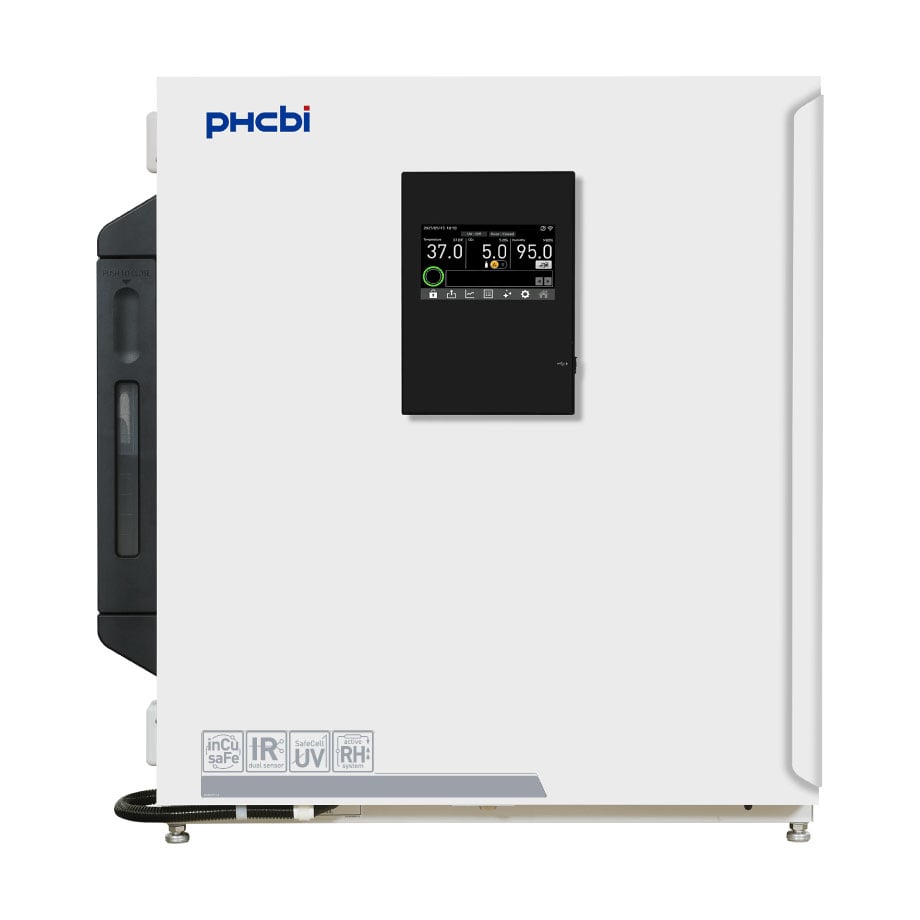

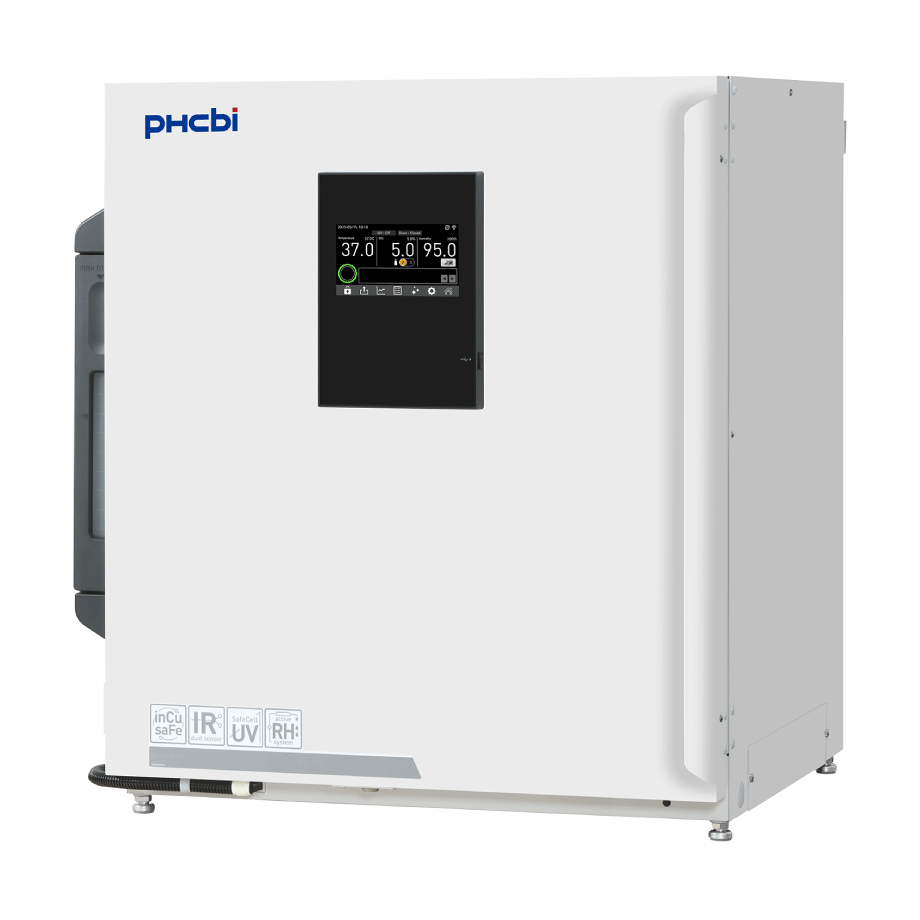

PHCbi MCO-233AICUVX-PA Cell-IQ™ Series Active Humidification CO2 Incubator with UV-LED | 8.1 cu.ft. (230 L)
Item#: MCO-233AICUVX-PAPHCbi MCO-233AICUVX-PA Cell-IQ™ Series Active Humidification CO2 Incubator is an 8.1 cu. ft. cell culture incubator engineered to deliver exceptional environmental control, contamination protection, and data visibility for advanced cell culture applications. Its hybrid-active humidification system maintains stable humidity levels up to 95% RH, while the inCu-saFe® copper-enriched stainless-steel chamber and SafeCell UV-LED technology work together to reduce contamination risks and support optimal cell growth. The large 7-inch touchscreen provides intuitive operation, advanced data visualization, alarm tracking, and troubleshooting support. Integrated LabSVIFT® connectivity enables remote monitoring, real-time alerts, and performance tracking, making this incubator an ideal solution for demanding research, biopharmaceutical, and clinical laboratory environments.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Exterior Dimensions: 33.5" W x 28.7" D x 35.6" H (850 x 730 x 905 mm)
- Interior Dimensions: 25.3" W x 20.6" D x 27.6" H (643 x 523 x 700 mm)
- Interior Volume: 8.1 cu.ft. (230 L)
- Interior Surfaces: InCu-saFe stainless steel with copper enriched alloy
- Net Weight: 198 lbs (90 kg)
- Outer Door: Painted steel
- Shelves: 24.4" W × 17.7" D × 0.5" H | 620 × 450 × 12 mm | Maximum load: 15 lbs (7 kg)/tray
- Access Port: 1: Rear Upper (1.2" [30 mm] diameter)
- Heating Method: Direct Heat and Air Jacket System
- UV Lamp: LED-based; Included (MCO-LUVS-PA)
- Temperature Control Range: Ambient temperature +5ºC to 50ºC
- Temperature Uniformity: ±0.25ºC
- CO2 Control Range: 0% to 20%
- CO2 Controller: Microprocessor
- CO2 Sensor Type: Dual Beam Infrared Sensor
- Temperature Sensor: Thermistor
- Data Output: USB 4-20 mA Analog Output (CO2, Temperature, and RH)
- Data Acquisition: Standard 4-20 mA Module; Data Export via USB
- Contamination Controls: InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
- Display: Color LCD touchscreen readable in 0.1 increments
- Humidifying System: Hybrid on-demand stream generation with humidifying pan (Depending on humidity setting)

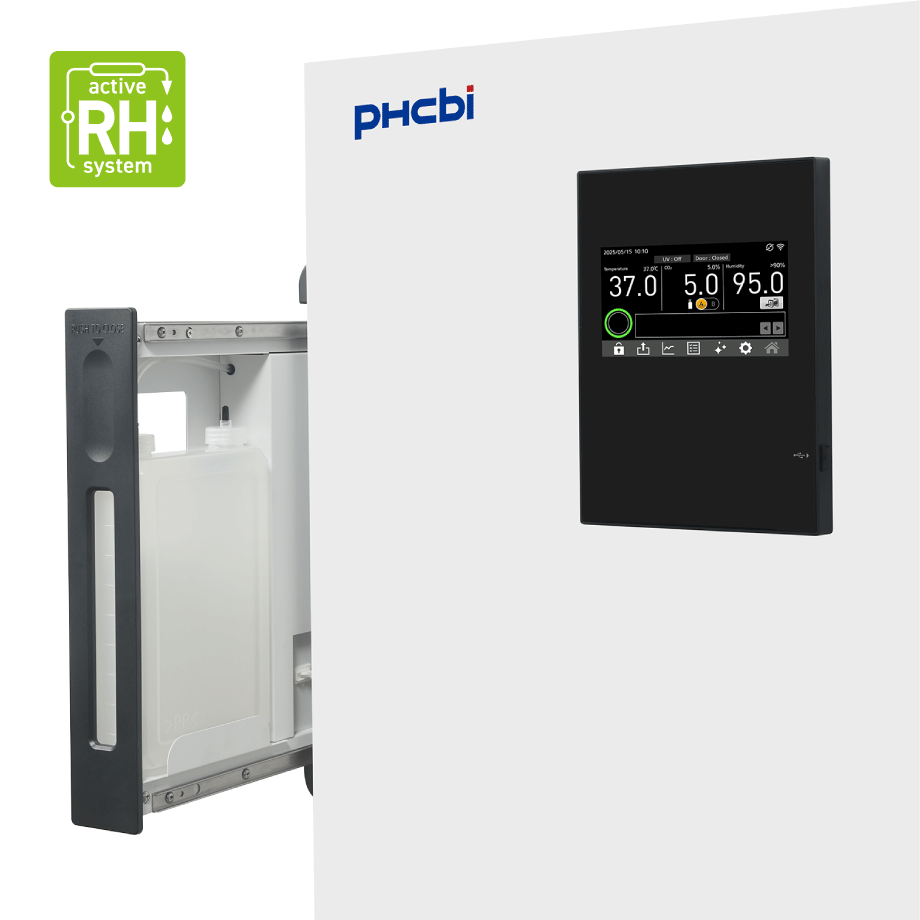

- How the Hybrid‑Active Humidification System Works:
- Active Humidification System: Heat‑based evaporation actively controls humidity to a stable 80–90% RH.
- Dual-Mode Humidification System: Active + passive humidification achieves 95% ± 5% RH for in‑vivo‑like conditions.
- Ultimate Sample Protection: Precision incubation requires both the proper balance of CO2 and temperature inside the incubator. This incubator combines active and passive contamination controls including UV-LED, a proprietary antimicrobial copper-stainless steel alloy (inCu-saFe) interior, and integrated shelving with rounded corners to support critical applications. This next-generation incubator goes beyond traditional incubation by enhancing both data capture and troubleshooting capabilities. Its advanced onboard display and user interface do more than log basic readings — they track alarms and their resolution, overlay multiple data parameters simultaneously, and monitor the duration of incubator activities for deeper operational insight.

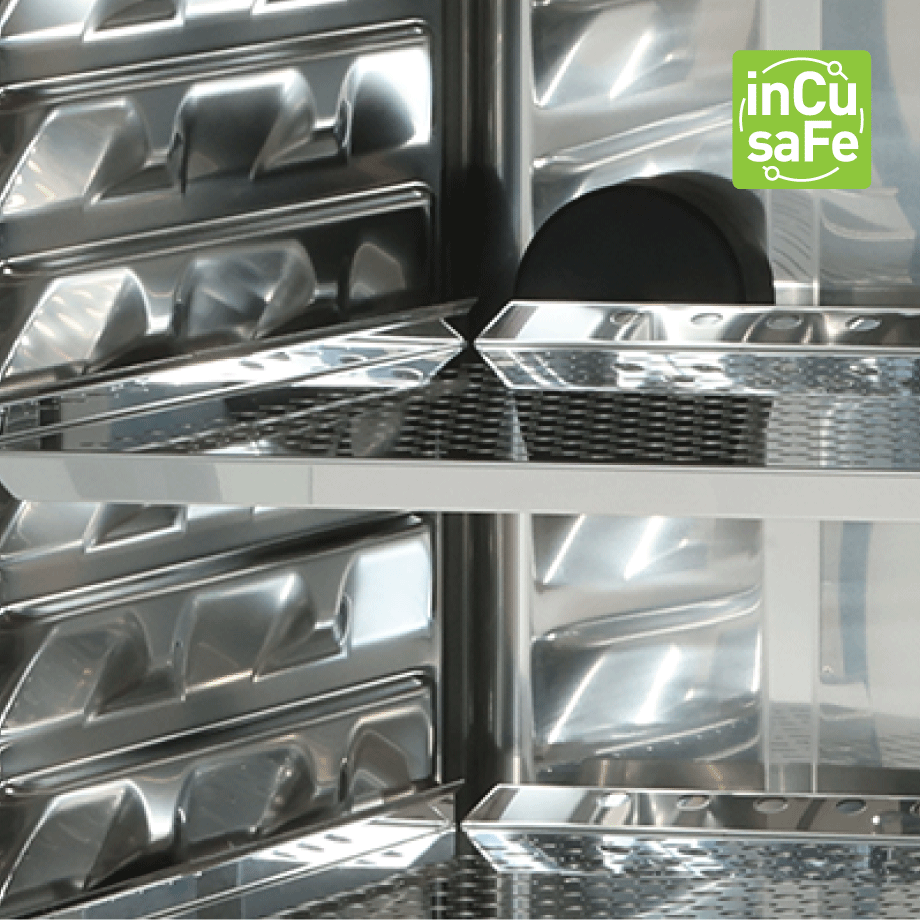

- InCuSafe Interior: Copper‑enriched stainless steel inhibits microbial growth on interior surfaces, supports a cleaner chamber environment.
- SafeCell UV-LED: Ozone‑free UV‑LED irradiation reduces airborne contaminants without affecting cell viability.

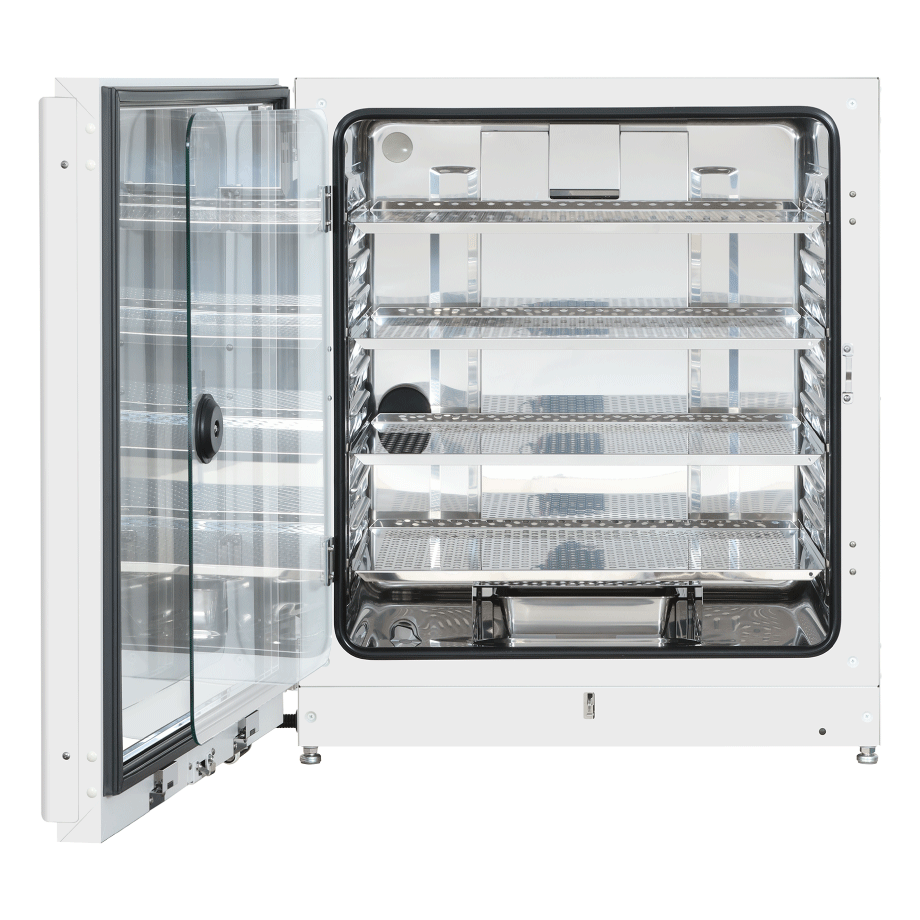

- Integrated Shelving: Integrated, molded shelf channels with curved corners allow for easy cleaning and help reduce sources of contamination.
- Intelligent Interface: A modern interface designed for clarity and confidence. The MCO-233AICUVX-PA incubator makes monitoring and control simple with a clean design and intuitive tools.

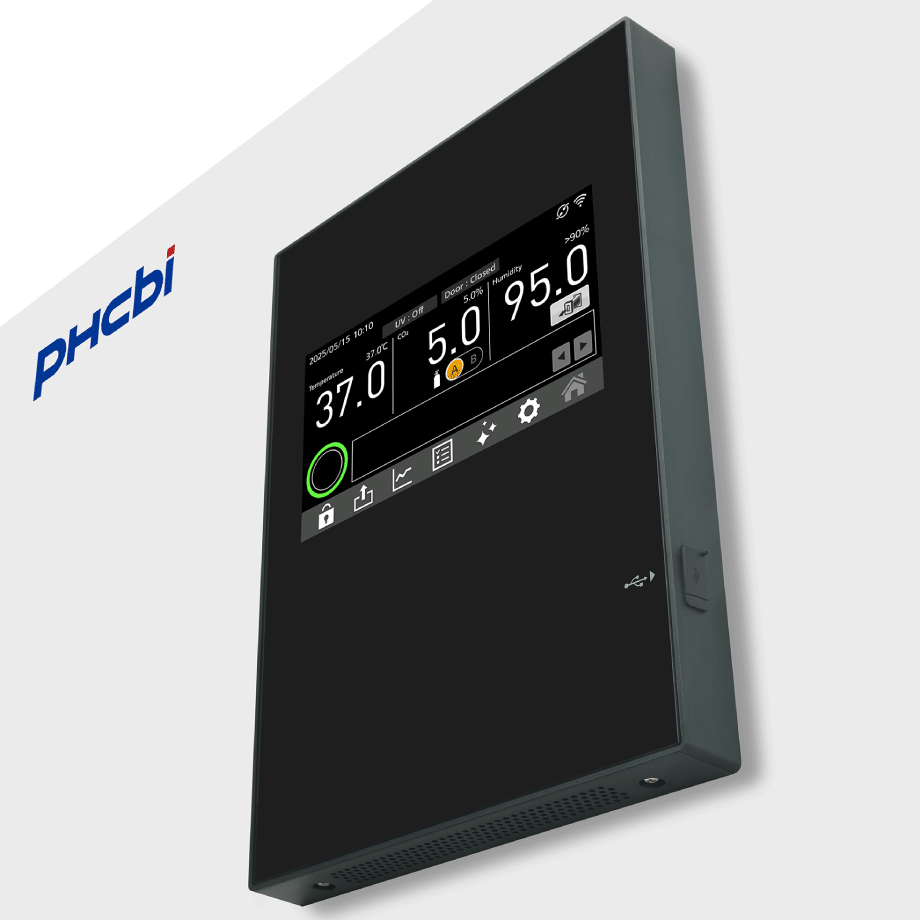

- Large 7-inch touchscreen: Sleek black panel, 44% larger for improved visibility and ease of use.
- Door activity overlay: Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.
- Instant support: Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.
- Guided self-service tools: Designed to enable quick troubleshooting with service support available when needed
- Integrated Lab Monitoring with LabSVIFT®: LabSVIFT is a cloud-based service built to simplify equipment monitoring and performance tracking. It provides 24/7 monitoring*, real‑time alerts, and centralized records compliant with FDA 21 CFR Part 11**. The built‑in health check feature evaluates equipment performance and flags irregularities with recommended corrective actions. Whether you’re reviewing routine performance data or checking its status from your phone, LabSVIFT helps ensure your incubator is secure and operating at peak performance.
-
