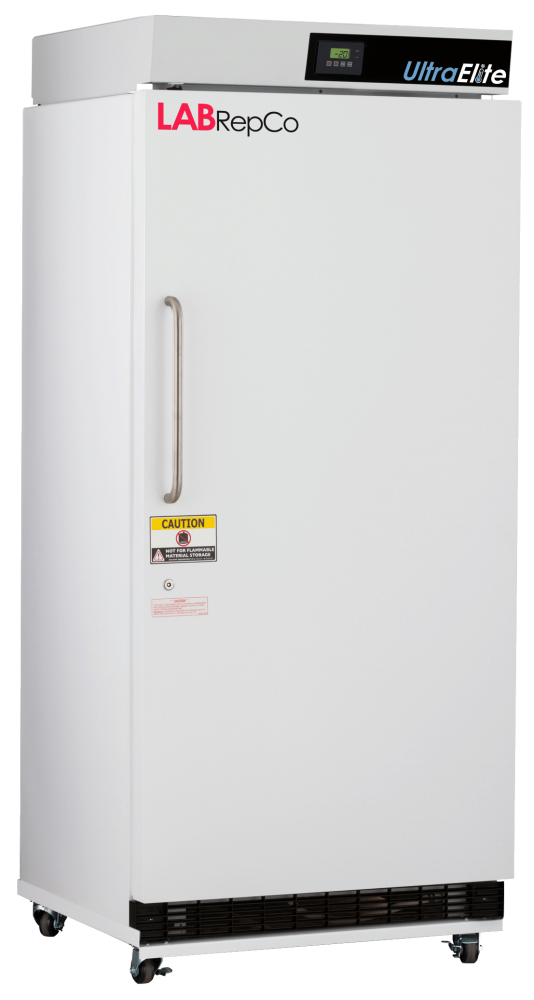

LabRepCo Ultra Elite Series 30 Cu. Ft. Laboratory Freezer (-20°C) | Manual Defrost

Item#: LHE-30-FM
The Ultra ELITE Series manual defrost laboratory freezers are designed to provide optimal protection for temperature sensitive samples at temperatures of -20°C. Built with four inner “fast-freeze compartments” each with their own individual doors, this laboratory freezer delivers absolute temperature maintenance and recovery.  The LHE-30-FM features an internal capacity of 30 cubic feet, digital temperature display & alarm module, microprocessor controller, LED interior lights, and 3/8” probe access port.
Due to part supply issues in the refrigeration industry, this product has a 4 to 6 week lead time.  Please inquire.

$13,246.00 $10,199.42

Request a Quote
  • Cu. Ft.: 30
  • Door(s): One solid swing door, right hinged, not reversible

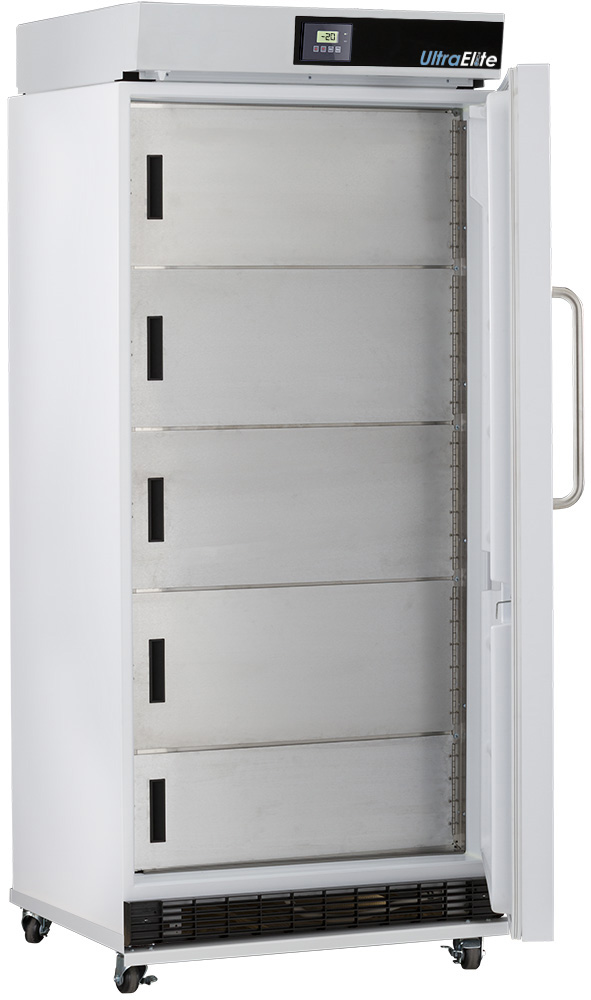

  • Five inner "fast-freeze compartments" with doors for temperature maintenance and recovery
  • Color: White textured cabinet and door
  • Magnetic door gasket for positive seal ; stainless steel door handle
  • Temperature Range: -15°C to -25°C
  • Exterior Dimensions: 35 3/4"W x 35"D x  82 1/2"H (with casters) 78 1/2”H (without casters)
  • Interior Dimensions: 32"W x 22"D x 64 1/2"H
  • Alarm: Audible and visual high/low temperature alarms
  • Shelves: 4 fixed shelves
  • Keyed Door Lock
  • Electrical Requirements:  115V, 60Hz ; 6 amps ; 1/3 HP
  • UL/C-UL listed
  • Shipping Weight: 492 lbs.

Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.

  • Manual defrost
  • Microprocessor Temperature Controller
  • Standard Digital Temperature Display and Alarm Module

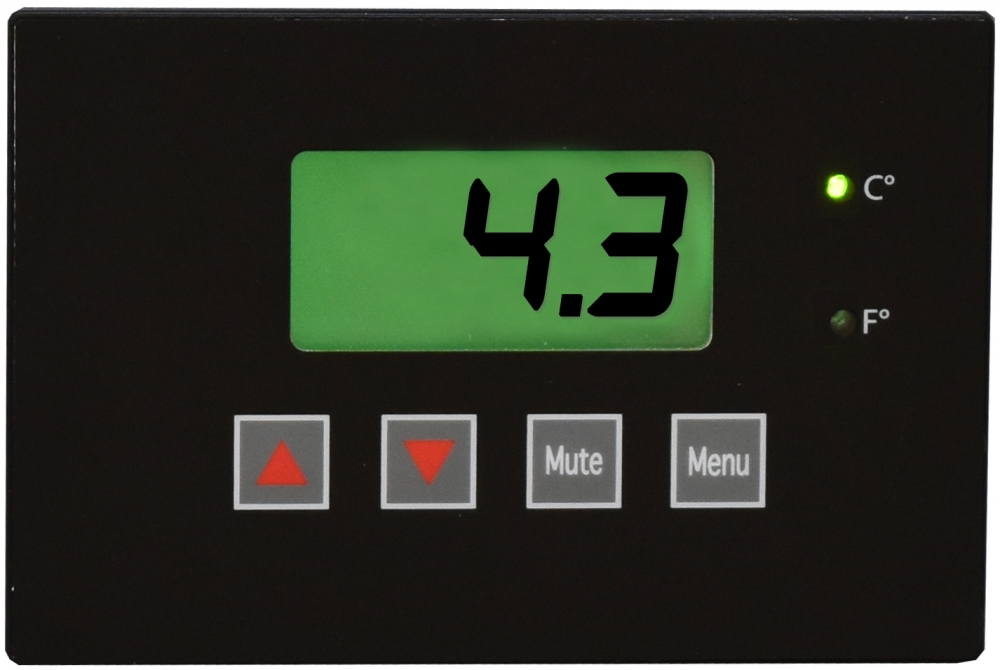

  • Sample simulated digital temperature display; .1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point min/max history
  • Remote alarm contacts
  • Alarm testing capabilities
  • Alarm mute with ring back
  • One probe access port (3/8")
  • Caster platform (adds 4 1/2" to height)
  • High density urethane foam cabinet and door insulation
  • CFC-free refrigerant (R404a), foam insulation and packaging
  • Warranties: 2 years parts and labor; plus an additional 3 years compressor parts only

LHE-30-FM Interior Cutsheet

Download

Ultra Series Manual Defrost Freezers Literature

Download

Owner's Manual-Ultra Elite Manual Defrost Upright & Chest Freezers

Download

LabRepCo 30 Cu. Ft. Shelf Reinforcement Kit Installation

Download

LHE-30-FM Exterior Cutsheet

Download
