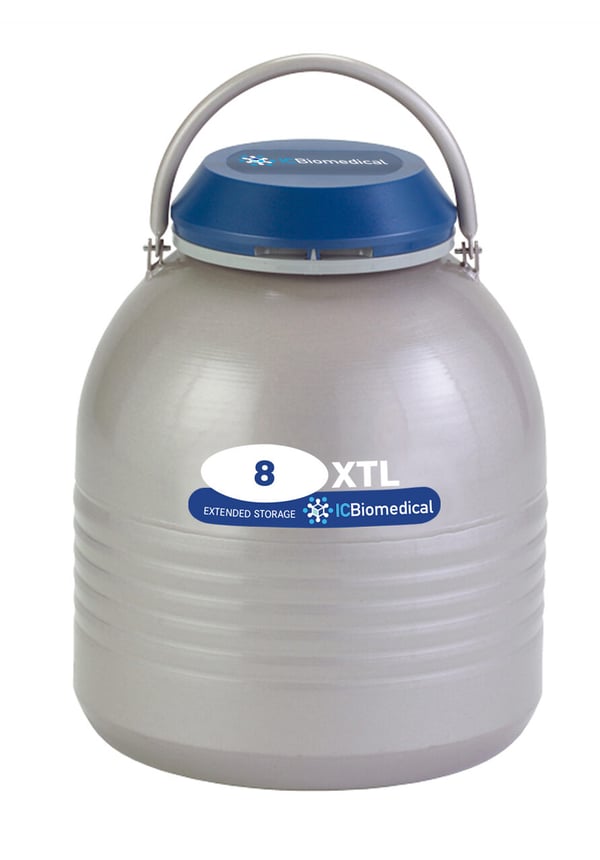

IC Biomedical XTL8 Cryogenic Sample Storage Freezer with (6) 5″ Canisters (Capacity: 750 x 1/2 cc Straws)
Item#: 8XTLB-5SThe Extended Time Series (XT) cryogenic refrigerators are designed for long-term storage of a variety of materials at cryogenic temperatures. These LN2 dewars incorporate durability and lightweight construction maximizing holding times for optimum capacities. Includes 6 canisters.
$1,162.00 $987.70
Supplier: IC Biomedical (Taylor Wharton)
Tags: Cold Storage Products, Liquid Nitrogen Tanks- Capacity (Liters.): 8
- Empty Weight: 19.6 lbs. (8.9 kg)
- Full Weight: 33.8 lbs. (15.4 kg)
- Neck Diameter: 2.0" (51mm)
- Outer Diameter: 15.6" (396mm)
- Total Height: 19" (483mm)
- Static Evaporation Loss Rate (Liters/day): 0.10
- Static Holding Time (Days): 80
- Canister O.D.: 1.5" (38mm)
- Canister Height: 5" (127mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): 750
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 5 years vacuum
*Comes complete with Necktube Core.
**Straws are not included.
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Working Time is an arbitrary, reference-only value to estimate container performance under the actual operating conditions.
(3) Without canisters.
- New rugged construction - ribbed high strength aluminum body, magniformed necktube design, and more durable paint
- Versatile storage system - convenient canister index location ring and tapered internal canister locator
- Superior vacuum performance with super insulation provides maximum holding times
- Lockable lids
- Mobility - roller base is available
- Warranty: 5 years vacuum
ICBiomedical XTL8 Brochure
DownloadICBiomedical XT Series Small Freezer Catalog
DownloadIC Biomedical Liquid Nitrogen Dewars User Manual
Download-
IC Biomedical 5″ Canister for XTL8 Series Liquid Nitrogen System
Item #: R008-9C24$41.00$34.85 -
Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$60.00$51.00 -
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 to 3/8″ NPT
Item #: 1600-9C66$451.00$383.35 -
IC Biomedical Replaceable Necktube Cork for XTL8, XT20, & XT34 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 2”)
Item #: R033-9C16$47.00$39.95 -
IC Biomedical Model 83 Phase Separator (1 1/4″ x 1/2″ OD, 1/8″FNPT)
Item #: 1193-8C83$64.00$54.40 -

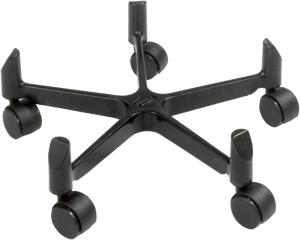

IC Biomedical Roller Base for HCL12, HC20, XT20, XTL8, TXT24 & LD25 Liquid Nitrogen Systems
