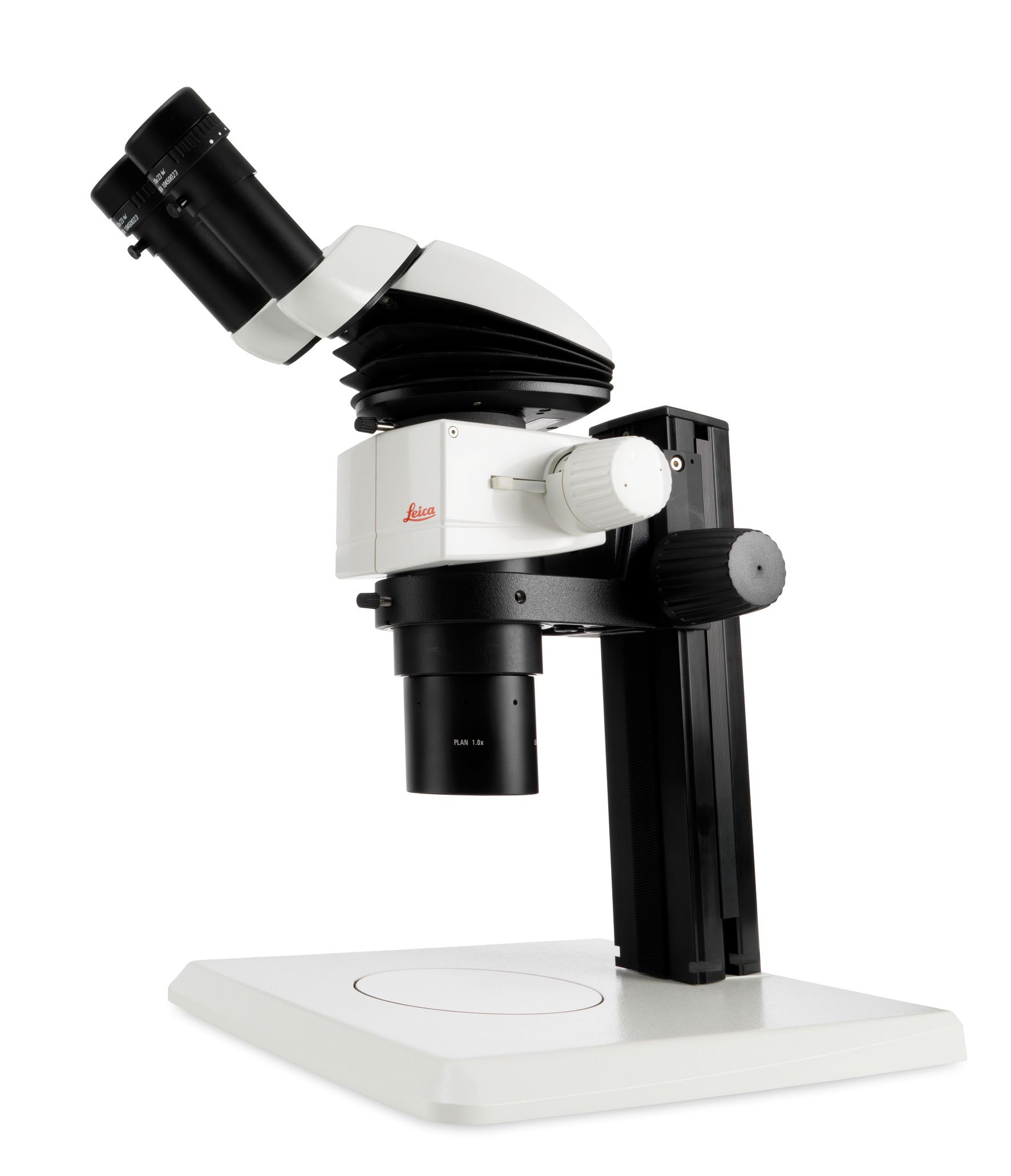

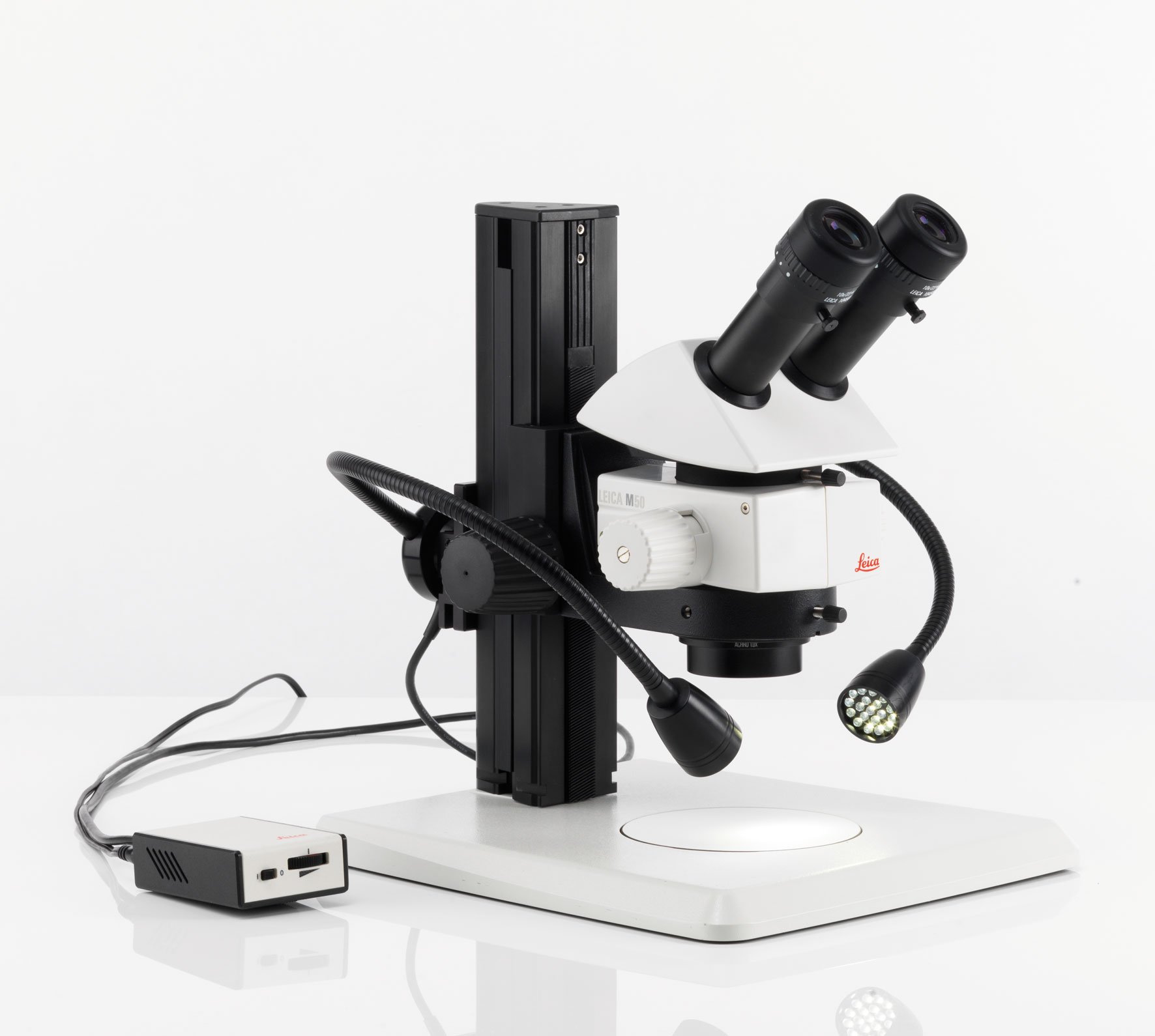

Leica M50, M60 and M80 Routine Stereo Microscopes

Leica M50, M60 and M80 Routine Stereo Microscopes - Image 2

Leica M50, M60 and M80 Routine Stereo Microscopes

Item#: M Series Stereo Microscopes

Handle your daily inspection or documentation, work confidently, and stay flexible in times of change. The modular stereo microscopes of the M series from Leica are the right choice for an abundant variety of tasks in life sciences and industrial applications. The M50, M60, and M80 allow operators to see a large sample overview, work comfortably under the microscope, and capture images of important details easily.

Request a Quote

Supplier: Leica

For a full listing of features and specifications, click here to view the brochure

At a glance

M50 with 5:1-zoom, featuring a step-zoom with five fixed zoom steps, at 6.3x, 10x, 16x, 25x, and 40x– allowing 100% reproducible results. The short optics carrier enables high light throughput and provides a large working distance, ideal in animal surgery and similar applications.
M60 with 6:1-zoom range, with a continuous zoom from 6.3x – 40x including engageable click stops - making repetitive inspection and measurement at a specific zoom position reliable. This system is optimized for a larger field of view to see more at a glance.
M80 with 8:1-zoom range, with a continuous zoom from 7.5x – 60x including engageable click stops – expanding your insights and reliability. Optimized for higher magnification to see smaller details in perfect contrast.

High flexibility with a modular concept

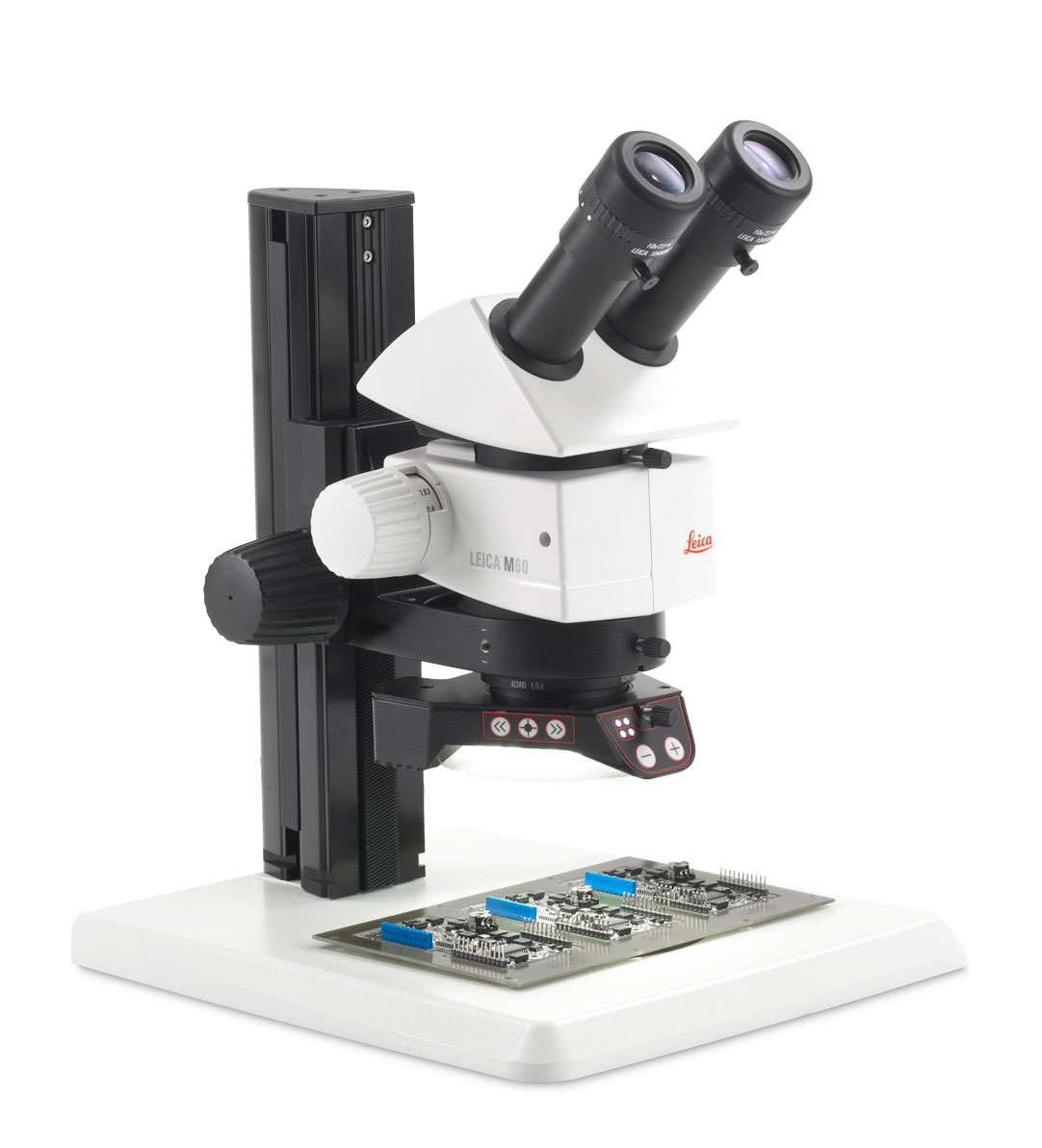

Small, medium, and large incident light bases: Inspect e.g. printed circuit boards, metal workpieces, or opaque research samples like flies on a fly-pad
TL transmitted light bases: observe translucent samples or screen model organisms like zebrafish or look for defects in glass and silicone molds
XL universal base: accommodate large workpieces, our XL cross-stage has a travel paths of up to 300 mm x 300 mm

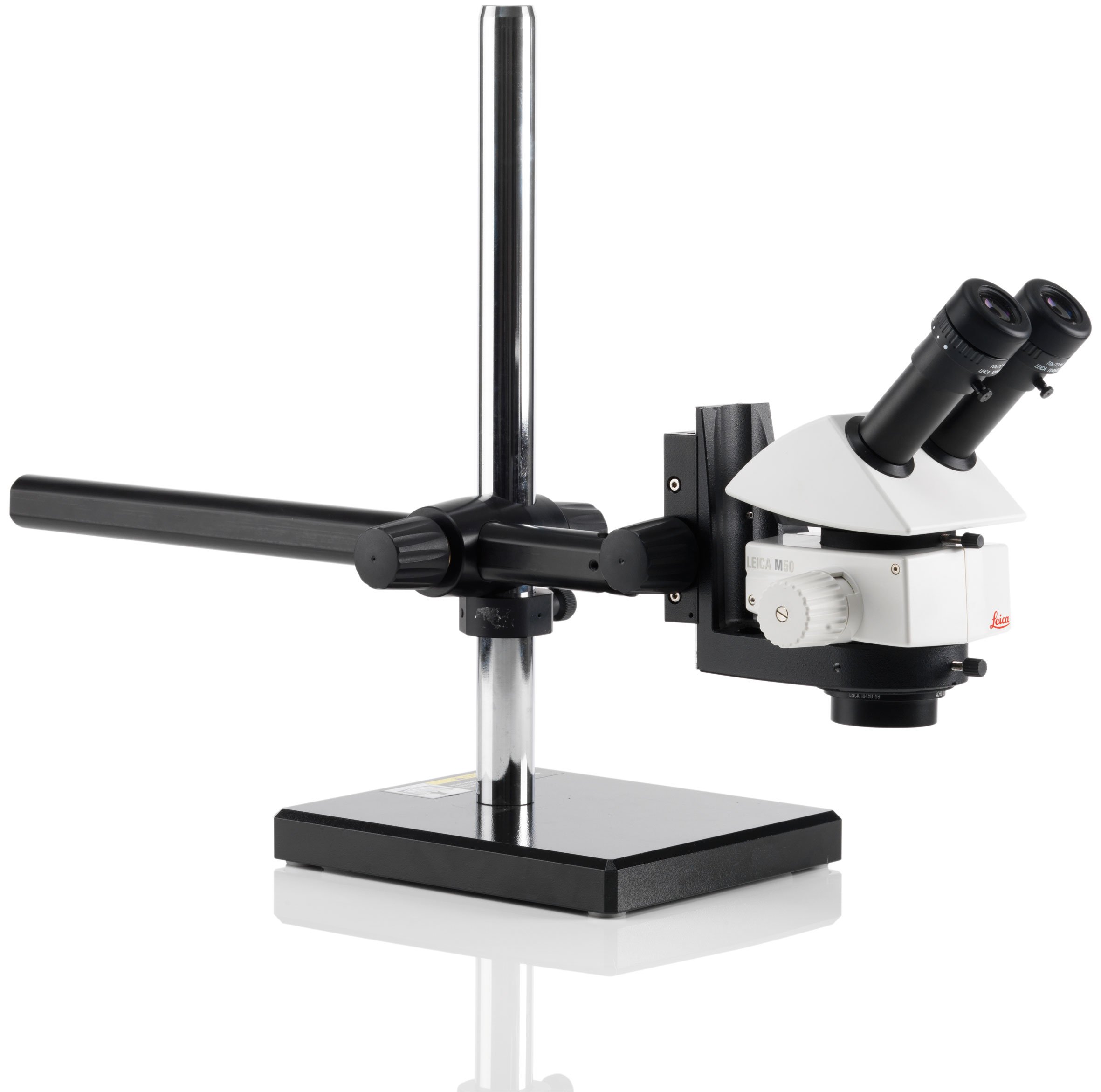

Swing arm and flex arm stands: Examine very bulky pieces, e.g. automotive parts or paintings, or adjust your viewing angle when dissecting, or pulling pipettes
Objectives: Choose from a variety of achromat and planachromat objectives depending on your requirements like working distance or FOV

Working efficiently with Ergo accessories

Adjustable viewing heights ensure that shoulder and neck muscles are not strained.
ErgoTubes promote an upright sitting position by bridging the gap between the microscope and the users’ eyes. This is especially important for tall users.
ErgoModules bring the eyepieces of the microscope closer to the operator by inserting a wedge below the eyepieces. This promotes an upright posture, no matter how tall the microscope user is.
