MVE 1536 PD Liquid Nitrogen LN2 Dry Shipper (Capacity: 36,400 x 2.0mL Vials)
Item#: 11515042The MVE 1536PD Liquid Nitrogen LN2 Dry Shipper is designed for safe shipping or relocation of cryogenically stored samples. This LN2 Dry Shipper has a holding time up to 20 days and offers stable temperature uniformity. This liquid nitrogen shipper can store up to (36,400) 1.2 & 2 mL vials and up to 24 vertical freezer racks for 100 cell boxes. A two year standard warranty and three year vacuum warranty are included with the purchase of this unit. Contact your local sales rep today to learn more or request a quote.

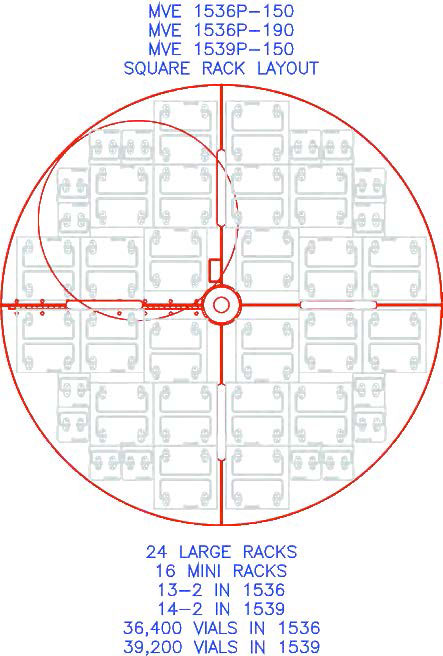

Maximum Storage Capacity
- 1.2 & 2 mL Vials (Internally Threaded): 36,400
- Number of Racks 100 cell boxes: 24
- Number of Racks 25 cell boxes: 16
- Number of Stages per Rack: 13
Performance
- Absorbed LN2 Capacity L: 133
Unit Dimensions
- Neck Opening in. (mm): 17.5 (444)
- Usable Internal Height in. (mm): 30 (762)
- Inner Diameter in. (mm): 38.5 (978)
- Overall Height, including Frame in. (mm) 64 (1625)
- Liftover Height in. (mm): 42.1 (1070)
- Footprint in. (mm): 52x52 (1321x1321)
- Step Height in. (mm): 20.5 (521)
- Depth of Fold Down Step in. (mm): 10.8 (274)
- Weight Empty lb. (kg): 1600 (726)
- Weight Full lb. (kg): 2044 (927)
- Liquid Nitrogen absorbent can be charged for dry shipment
- Hold time up to 20 days when properly charged
- Rigid steel frame can be moved with pallet jack/forklift
- Sized to fit in a wide-body aircraft
- Inventory tray locks to prevent rotation during transit
- Locking lid
- Includes data logger to monitor and record sample temperature during shipment or relocation
- Inner vessel may be decontaminated after shipping if necessary
- Warranty: 2 year parts & 3 year vacuum
