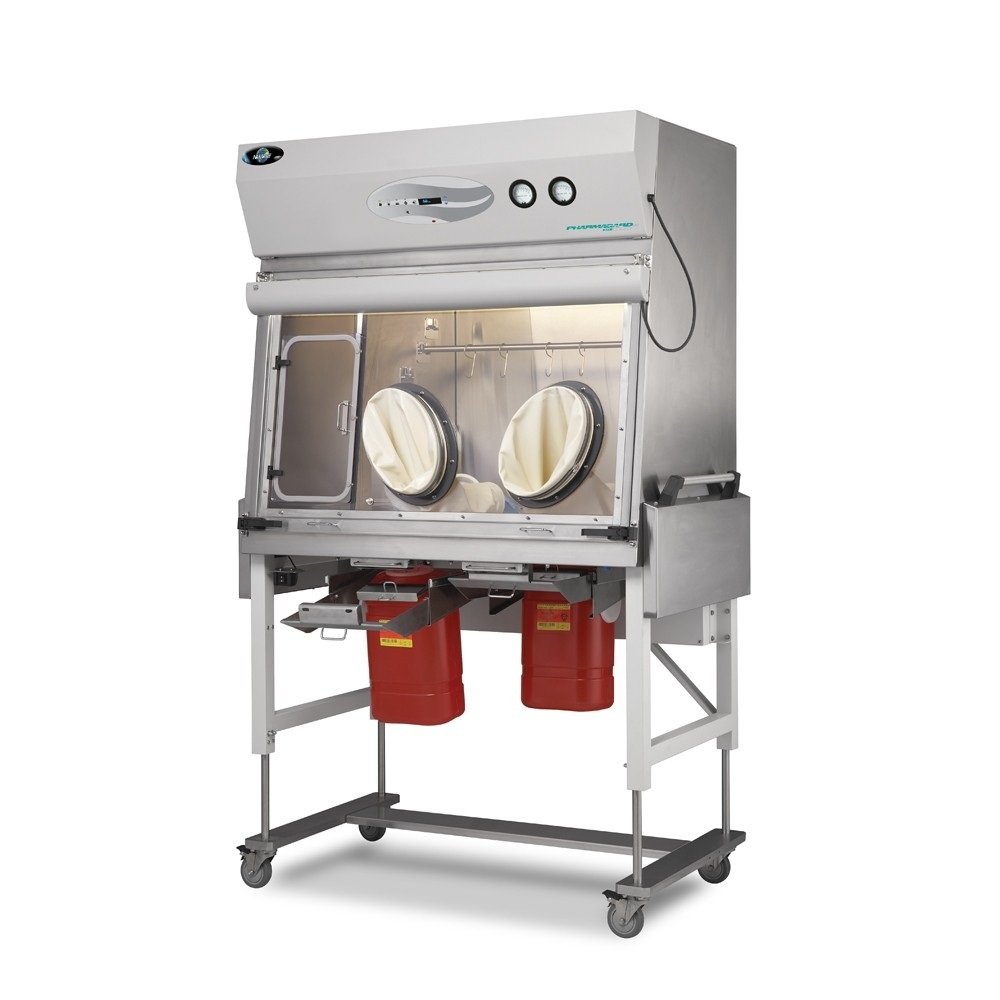

NuAire Compounding Aseptic Pharmacy Isolators
Item#: NU-PR797The PharmaGard ES NU-PR797 Compounding Aseptic Pharmacy Isolator from NuAire complies with USP General Chapter 797 requirements and provides a positive pressure clean air-controlled environment for pharmacist compounding non-hazardous drugs.
| Performance Specifications |
NU-PR797-400
Nominal 4 foot (1.2m)
|
NU-PR797-600
Nominal 6 foot (1.8m)
|
| Product Protection | ISO Class 5 (Laminar Flow) | ISO Class 5 (Laminar Flow) |
| Style of Isolator | Bench top/console Isolator | Bench top/console Isolator |
| Isolator Construction | Welded stainless steel 16GA, Type 304 pressure tight design | Welded stainless steel 16GA, Type 304 pressure tight design |
| Interchange Chamber | ISO Class 5 With Internal/External Sealed Doors | ISO Class 5 With Internal/External Sealed Doors |
| Diffuser for Air Supply (Metal) | Non-flammable | Non-flammable |
|
HEPA Filter Seal Type:
Supply Filter-99.99% Eff. on 0.3 microns Intake Filter-99.99% Eff. on 0.3 microns
|
Neoprene, Spring loaded Under Negative Pressure | Neoprene, Spring loaded Under Negative Pressure |
|
Standard Services:
Hospital Grade Duplex Outlet
|
One, Backwall | One, Backwall |
| Optional Services: Service Valves 3/8" NPT | Up to 3 | Up to 3 |
| Isolator Size Inches (mm): Height | 51 1/2 (1308) | 51 1/2 (1308) |
| Height (Minimum w/opt. Adjustable Base Stand) Width | 78 (1981) | 78 (1981) |
| Depth (with Control Center) | 50 (1270) | 74 (1880) |
| 32 1/2 (826) | 32 1/2 (826) | |
| Work Zone Inches (mm): Width | 35 1/4 (895) | 59 1/4 (1505) |
| Height | 27 3/8 (695) | 27 3/8 (695) |
| Depth (Center of Glove Port) | 23 1/4 (591) | 23 1/4 (591) |
| Interchange Inches (mm) Width | 14 1/8 (359) | 14 1/8 (359) |
| Depth (at Work Surface) Height | 24 (610) | 24 (610) |
| 27 3/8 (695) | 27 3/8 (695) | |
| Hinged Viewing Window (Polycarbonate) | Fully closed to fully open | Fully closed to fully open |
| Heat Rejected, BTU, Per Hour | 539 | 880 |
| Electrical: Volts, AC 60 Hz | UL/UL-C Listed 115 | UL/UL-C Listed 115 |
| Amps: Blower/Lights | 3 | 5 |
| Amps: Hospital Grade Duplex Amps: Total | 3 | 3 |
| 12 ft. Hospital Grade Power Cord (one) | 6 | 8 |
| 14 GA - 3 Wire, 15A | 14 GA - 3 Wire, 15A | |
| *Crated Shipping Weight: | 475 lbs./220 kg. | 625 lbs./284 kg. |
| *Net Weight: | 425 lbs./193 kg. | 575 lbs./261 kg. |
- Incorporates the latest advancements in laboratory ergonomics

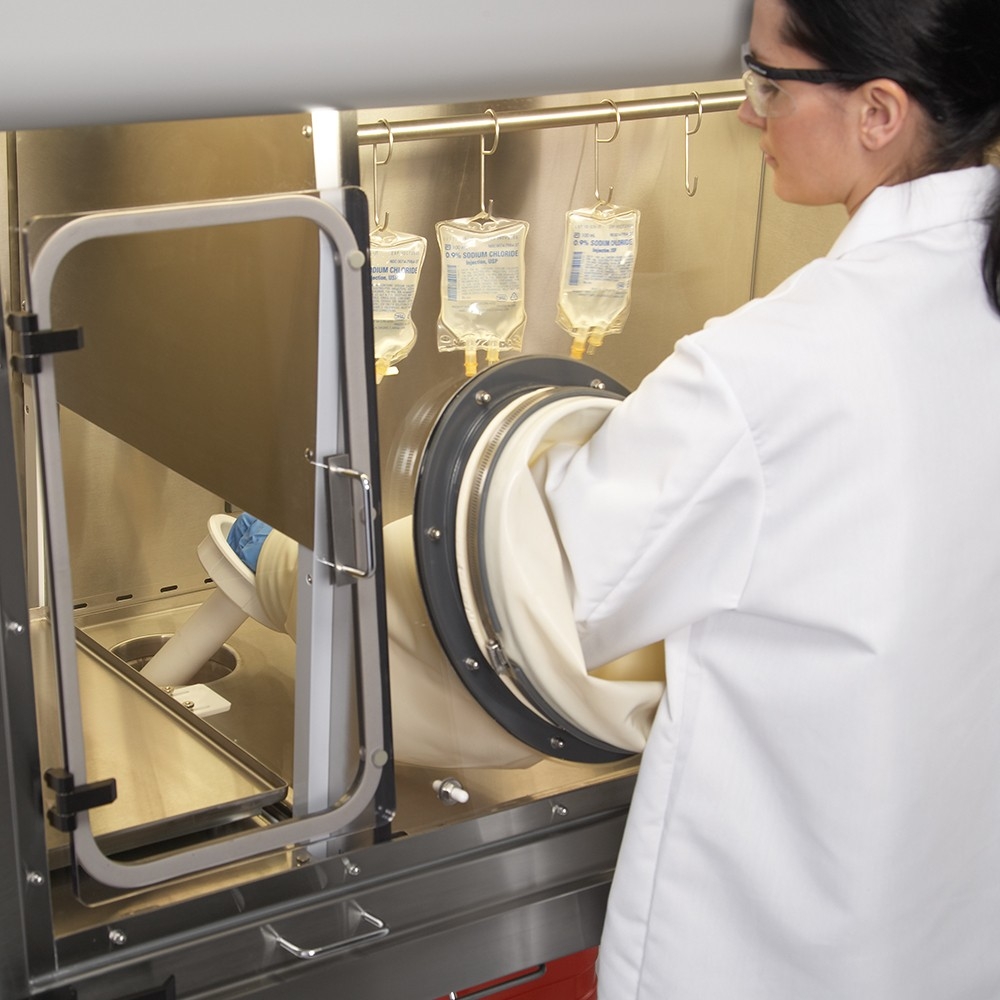

- Quick change, air-tight waste disposal system
- Ultra-high efficiency motor increased filter life and lowers energy costs

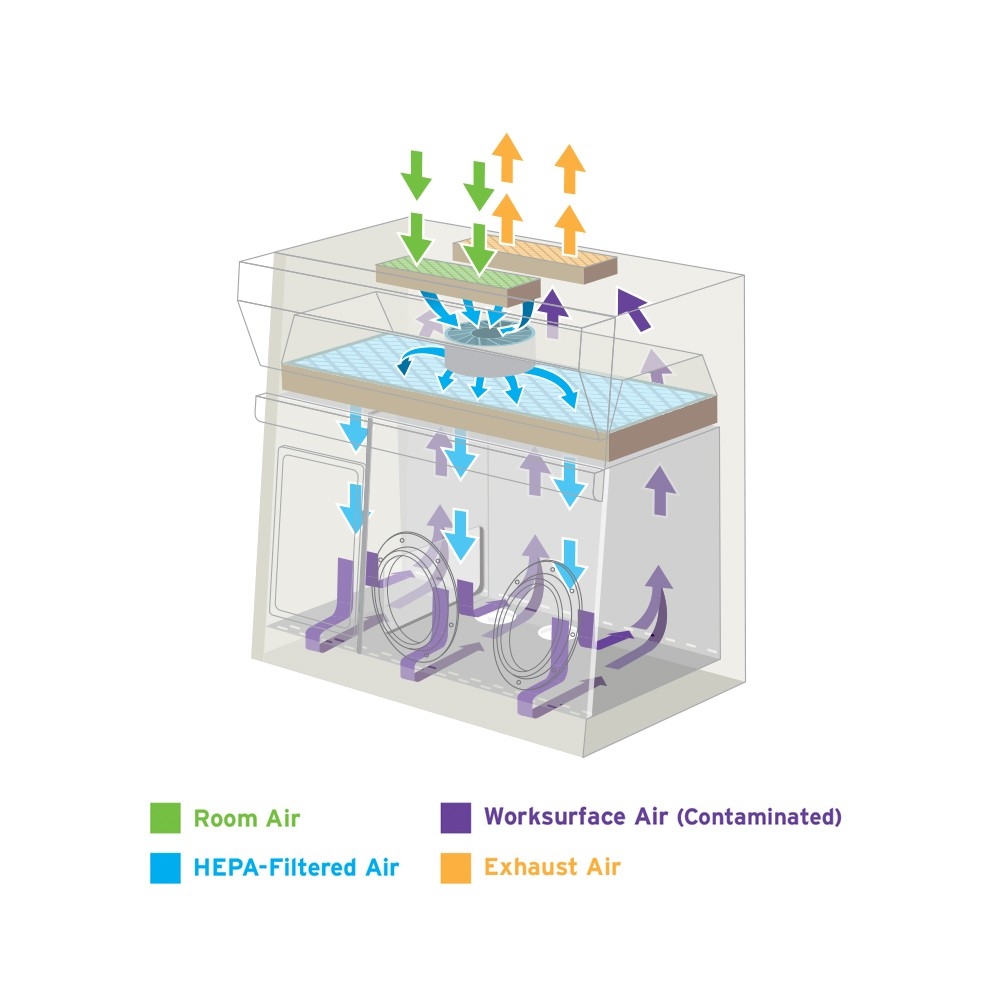

- Stable, consistent unidirectional airflow
- HEPEX Zero Leak Airflow System
- Technology to reduce unit noise and vibration
